Why Is My EPDM Waterproof Board Equipment Causing Uneven Sheet Thickness
2026-06-12

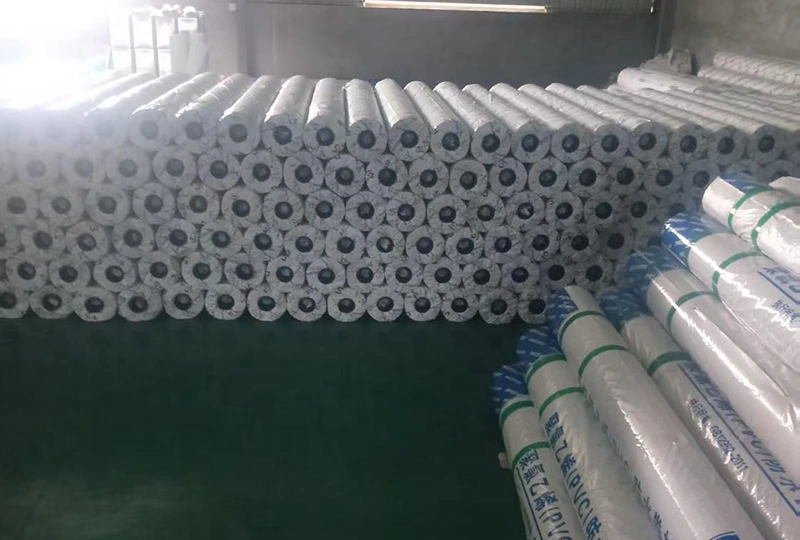

Uneven thickness in finished rolls is a persistent frustration for manufacturers using EPDM Waterproof Board Equipment. When sheets vary by more than 3-5%, it leads to material waste, installation failures, and rejected batches. This problem often hides in plain sight—within calibration gaps, inconsistent material feeding, or worn components.
Drawing from field service data from Haiming installations across nine countries, the root causes fall into four repeatable categories. Below is a structured breakdown, followed by practical solutions and the most frequently asked questions about EPDM Waterproof Board Equipment.
Primary Causes & Immediate Fixes
| Cause Category | Typical Symptom | Haiming-Recommended Check |
|---|---|---|
| Calibration roller misalignment | Thicker on left edge, thinner on right | Measure roller gap every 200 operating hours with feeler gauges |
| Inconsistent compound feed rate | Random ±0.5 mm variations | Verify screw speed stability; check for worn flight sections |
| Uneven cooling roll temperature | Center thicker than edges | Use thermal imaging; maintain ±2°C across roll surface |
| Worn doctor blade pressure | Streak-like thin lines along sheet direction | Replace blade after 600-800 tons of processed compound |
Why This Matters for Your Production Line
Even a 0.3 mm variance can compromise lap sealing on roofing membranes. EPDM Waterproof Board Equipment from Haiming includes automated thickness feedback loops that adjust roller pressure in real time. Older machines without this loop drift out of spec after two hours of continuous operation.
EPDM Waterproof Board Equipment FAQ – Common Questions
Q1: How often should I recalibrate the roller gaps on my EPDM Waterproof Board Equipment?
A1: Haiming recommends a full mechanical calibration every 400 operating hours for EPDM Waterproof Board Equipment. However, a quick gap check using a taper gauge should be performed every Monday morning before production. If your equipment processes carbon-black-filled EPDM compounds, abrasive wear accelerates misalignment—move recalibration to every 300 hours. Ignoring this causes progressive unevenness that ruins entire shifts of material.
Q2: Can inconsistent compound temperature cause uneven thickness, even if my EPDM Waterproof Board Equipment is perfectly calibrated?
A2: Yes—temperature is the second-most critical variable. EPDM Waterproof Board Equipment depends on compound viscosity staying within 5% of target. If the mixing section delivers compound at 85°C instead of 70°C, viscosity drops, and the sheet flows faster through the roller gap, creating thin zones. Always install a temperature sensor at the feed throat. Haiming machines include a digital viscosity correction module that auto-adjusts roller speed to compensate for ±10°C variation.
Q3: What is the average service life of key components in EPDM Waterproof Board Equipment before thickness problems begin?
A3: Based on Haiming maintenance logs from 142 production lines:
-
Doctor blades: 600–800 tons (replace earlier for high-carbon recipes)
-
Calibration roller chrome layer: 8,000–10,000 hours
-
Feed screw flights: 5,000–6,000 hours
-
Roller bearings: 12,000–15,000 hours
After 70% of these thresholds, thickness deviation accelerates non-linearly. Scheduled part replacement before failure is more cost-effective than emergency rework.
Verified Fixes That Work Immediately
-
Clean roller surfaces every shift – Burnt compound buildup changes effective gap by 0.1–0.3 mm
-
Log thickness readings every 30 minutes – Trend detection catches drift early
-
Use laser micrometer feedback – Haiming offers retrofittable closed-loop systems that correct pressure within 0.2 seconds
When to Call a Specialist
If you have performed all mechanical checks, verified compound temperature, and replaced worn blades—yet uneven thickness persists—the issue may be structural resonance in the roller frame. Haiming engineers have solved this on six continents by retrofitting harmonic dampers.
Contact us today for a free thickness deviation audit. Share your last 24 hours of production data, and Haiming will deliver a root-cause analysis within two business days. Reach our technical support team through the contact form on our official website or email [email protected] directly.
