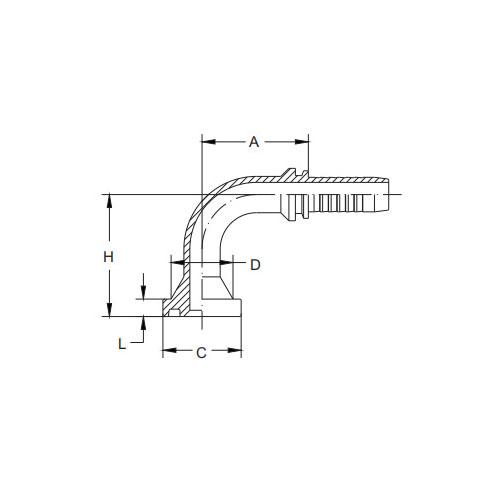

Why Is My 87391H-90° SAE Flange 3000PSI Cone 61 Leaking at the O-Ring Boss Connection
2026-07-13
If you are dealing with a persistent leak at the O-ring boss connection on your 87391H-90° SAE Flange 3000PSI Cone 61, you are not alone. This high-pressure hydraulic adapter, manufactured to SAE J518 standards, is a critical component in heavy-duty fluid power systems. However, even with precision engineering from trusted suppliers like WayFong, leaks can occur. Understanding the root causes is the first step toward a reliable, zero-leak system.
Common Causes of Leakage at the O-Ring Boss
The O-ring boss connection on the 87391H-90° SAE Flange 3000PSI Cone 61 is designed for metal-to-metal contact with an elastomeric seal. When leakage happens, it is rarely due to a single factor. Below is a breakdown of the most frequent culprits:
| Cause Category | Specific Issue | Impact on Seal |
|---|---|---|
| Installation Errors | Incorrect bolt torque (under-tightening or over-tightening) | Uneven compression distorts the O-ring |
| O-Ring Damage | Nicks, cuts, or extrusion during assembly | Creates a direct path for fluid bypass |
| Surface Defects | Scratches or pitting on the boss sealing face | Prevents the O-ring from seating properly |
| Contamination | Dirt or metal shavings trapped under the O-ring | Causes micro-gaps under pressure |
| Material Incompatibility | O-ring compound not suited for the hydraulic fluid type | Swelling, hardening, or chemical degradation |
| Misalignment | Angled or off-center flange positioning | Uneven load distribution across the seal |
Step-by-Step Diagnostic Checklist
Before ordering a replacement 87391H-90° SAE Flange 3000PSI Cone 61 from WayFong, perform this professional inspection routine:
-
Depressurize the system completely – never work on a live hydraulic circuit.
-
Remove the flange bolts and carefully extract the O-ring.
-
Examine the O-ring under good light – look for flat spots, abrasions, or spiral twisting.
-
Inspect the boss counterbore – use a dial indicator to check for depth tolerance (SAE J518 requires 0.530–0.535 inches for this size).
-
Check bolt threads for galling or corrosion, which can affect torque readings.
-
Verify the flange face for flatness using a precision straightedge.
Pro Tip from WayFong: Over-torquing is more common than under-torquing. For the 87391H-90° SAE Flange 3000PSI Cone 61, the recommended wet torque (with lubricated threads) is 90–100 ft-lbs for grade 8 bolts. Dry torque should be reduced by 15–20%.
O-Ring Selection and Replacement Guide
Choosing the correct O-ring is non-negotiable. The 87391H-90° SAE Flange 3000PSI Cone 61 uses a dash -910 O-ring (per AS568A standard) for the 1½-inch port size. However, material selection depends on your operating environment:
| Fluid Type | Recommended O-Ring Material | Max Continuous Temp |
|---|---|---|
| Petroleum-based hydraulic oils | Nitrile (NBR) – 70 durometer | +250°F (+121°C) |
| Phosphate esters (fire-resistant) | Ethylene Propylene (EPDM) | +300°F (+149°C) |
| Skydrol® or aggressive synthetics | Fluorocarbon (FKM/Viton®) | +400°F (+204°C) |
| Water-glycol mixtures | Neoprene (CR) | +200°F (+93°C) |
WayFong recommends always replacing the O-ring whenever you disassemble the 87371H-90° SAE Flange 3000PSI Cone 61 – even if it appears undamaged. O-rings take a compression set after the first tightening cycle and rarely seal effectively a second time.
FAQ – Frequently Asked Questions
Q: Can I reuse the O-ring on my 87391H-90° SAE Flange 3000PSI Cone 61 if it looks perfectly fine?
A: No. Professional hydraulic practice strictly prohibits O-ring reuse. Even if the O-ring shows no visible nicks or cuts, it has undergone compressive deformation (compression set) during its initial installation. Once removed, it loses its original circular cross-section and will not exert uniform radial pressure against the boss and flange. For a 3000 PSI system, any reduction in sealing force dramatically increases the risk of extrusion and sudden blowout. WayFong supplies genuine replacement O-ring kits precisely sized for the 87391H-90° SAE Flange 3000PSI Cone 61 – always use a fresh seal.
Q: How do I know if the leak is from the O-ring boss or from the flange split joint?
A: This is a critical diagnostic distinction. Wipe the entire adapter dry, then run the system at idle pressure (around 500 PSI) and observe. If fluid weeps from the bolts themselves or from between the two flange halves, the issue is the split flange joint (gasket or bolt tension). If fluid appears as a thin film creeping outward from the center bore where the tube end enters the boss, that is an O-ring boss seal failure. For the 87391H-90° SAE Flange 3000PSI Cone 61, you can also dust the area with baby powder or leak detection spray – the first wet trace will pinpoint the exact origin. When in doubt, WayFong recommends replacing both the O-ring and the flange gasket simultaneously to eliminate cross-contamination of failure modes.
Q: What is the correct bolt tightening sequence for the 87391H-90° SAE Flange 3000PSI Cone 61 to prevent future leaks?
A: Use a star or cross-pattern, never a circular sequence. For the four-bolt flange design of the 87391H-90° SAE Flange 3000PSI Cone 61, follow this three-pass procedure:
-
Pass 1: Hand-tighten all bolts to 20 ft-lbs.
-
Pass 2: Tighten diagonally opposite bolts to 50 ft-lbs.
-
Pass 3: Final torque diagonally to 90–100 ft-lbs (wet) or 75–85 ft-lbs (dry).
Always wait 10–15 minutes after final torque, then re-check each bolt because the O-ring relaxes slightly. This multistage method ensures the O-ring compresses evenly around the entire boss circumference. WayFong provides torque specification cards with every shipment to help technicians avoid this common installation oversight.
Preventive Maintenance Schedule
To extend the service life of your 87391H-90° SAE Flange 3000PSI Cone 61, implement this routine:
-
Every 500 operating hours: Visual inspection for external weeping.
-
Every 1000 hours or annually: Remove, inspect, and replace the O-ring preemptively.
-
After any pressure spike above 3500 PSI: Immediate disassembly and seal replacement – overpressure events often extrude O-rings beyond their elastic limit.
-
During fluid changes: Flush the boss cavity to remove settled debris.
When to Replace vs. Repair
| Condition | Action |
|---|---|
| O-ring damaged only | Replace O-ring – keep the adapter body |
| Boss face has deep scratches (≥0.010″) | Replace the entire 87391H-90° SAE Flange 3000PSI Cone 61 |
| Bolt threads stripped or corroded | Replace flange bolts (do not re-tap) |
| Flange body cracked or deformed | Immediate replacement from WayFong |
Never weld, grind, or attempt to resurface the conical sealing surface of the 87391H-90° SAE Flange 3000PSI Cone 61 – it is hardened to Rockwell C 35–40 and field repairs will destroy the dimensional accuracy required for a 3000 PSI seal.
Final Verdict
A leaking 87391H-90° SAE Flange 3000PSI Cone 61 at the O-ring boss is almost always preventable with correct torque, proper O-ring material selection, and meticulous surface inspection. In 90% of field cases, the fix is a new O-ring and a torque wrench – not a new adapter. However, if the boss face is compromised, only a genuine replacement from WayFong will restore the factory-specified leak-tight performance.
