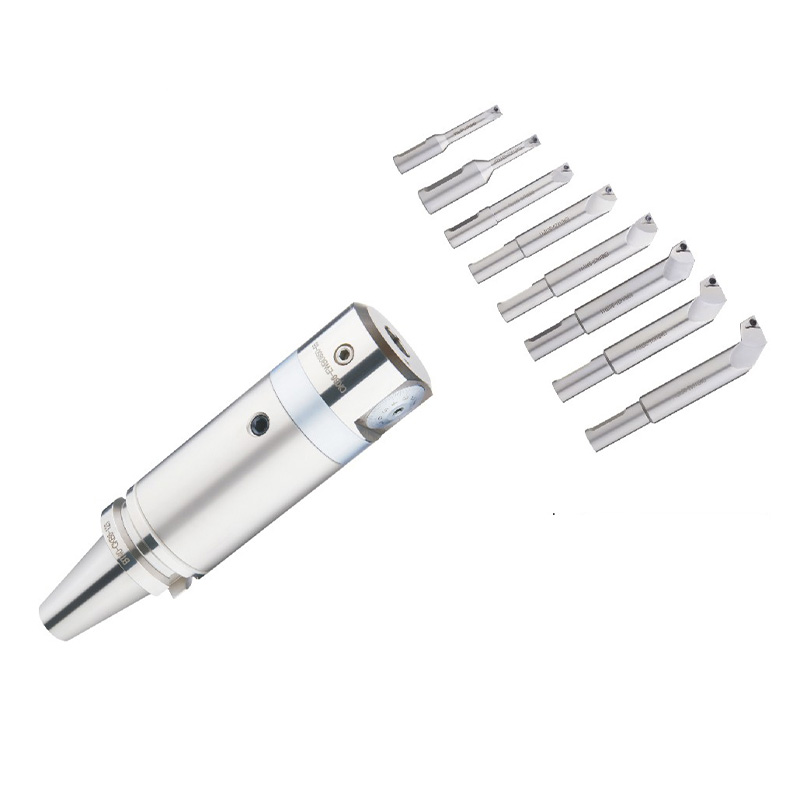

A boring head is a precision tool used for enlarging and finishing pre-existing holes with extreme accuracy. It is widely applied in CNC machining, milling centers, and industrial manufacturing where tight tolerances and surface quality are critical.

What Defines a High-Performance Boring Head and How Does It Work?

A boring head is a precision mechanical component that adjusts and holds cutting tools for the enlargement and finishing of holes. Its design allows micrometric adjustments, enabling machinists to achieve tolerance levels down to microns. The working principle relies on calibrated radial movements of a slide or dial that shifts the cutting tool relative to the spindle axis. This precise adjustment ensures that the diameter of the bore can be controlled with high consistency and surface quality.

Below is a professional overview of typical parameters of a high-precision boring head:

Boring Head Technical Parameters Overview

These features ensure stable performance even in high-speed machining environments, making the boring head a vital component in achieving precision boring results.

Why Does a Boring Head Matter in Precision Manufacturing?

The importance of a boring head lies in its ability to meet high industrial demands for accuracy, surface finish, and dimensional reliability. As industries evolve, the need for precision hole machining becomes heavier due to complex assembly requirements, tighter tolerance expectations, and higher product customization.

Key Reasons a Boring Head Is Essential in Manufacturing

• Ultra-High Accuracy

Boring heads produce extremely consistent bore diameters, achieving outcomes that general drilling or reaming tools cannot match. Their micro-adjust feature ensures repeatability, making them suitable for aerospace, automotive, injection molds, and medical device components.

• Superior Surface Quality

The design of a boring head minimizes chatter and vibration, resulting in smooth, mirror-like finishes that reduce the need for secondary polishing or honing.

• Extended Tool Life

By ensuring stable cutting geometry and balanced operation, boring heads reduce wear on boring bars and inserts.

• Cost Effectiveness

While the tool itself is an investment, its longevity, repeatability, and reduced scrap rate contribute to lower operational costs over time.

• Adaptability

The tool is compatible with multiple boring bars and inserts, allowing rapid adjustment for different bore dimensions without changing entire setups.

How Does a Boring Head Optimize Machining Efficiency?

A boring head enhances machining efficiency through a combination of structural stability and refined adjustment capability. The dovetail or modular slide system minimizes backlash, enabling consistent radial motion. Many modern boring heads include a dynamic balancing feature to reduce vibration and increase RPM capability.

Major Ways a Boring Head Improves Efficiency

• Precision Micro-Adjustment

Fine-tuning gives machinists total control over diameter adjustments. Even a 0.01 mm change can significantly affect component performance, and the boring head ensures these adjustments are repeatable.

• Rigidity and Vibration Control

Heavy-duty body construction, heat-treated alloys, and balancing procedures ensure low vibration, resulting in better cutting conditions and faster cycle times.

• Compatibility with CNC Systems

Many tools are optimized for automated tool changers. CNC programs can work seamlessly with boring heads for repetitive mass-production tasks.

• Ability to Perform Roughing and Finishing

With the correct insert or boring bar, a single boring head can rough out excess material and finish the hole with no need for separate tools.

• Reduced Setup Time

Adjusting the dial eliminates the need to change tools frequently, reducing downtime and improving batch consistency.

What Are the Future Trends of Boring Heads in Industrial Applications?

As manufacturing technology advances, boring heads are evolving to meet the demands of automation, digitization, and higher productivity.

• Trend 1: Modular Tooling Systems

Modular boring systems allow quick tool changes and configuration adjustments. Operators can swap components without recalibrating entire setups.

• Trend 2: Digital Micron Adjustment

Some high-end boring heads now integrate digital readout modules that display adjustment increments in microns for improved accuracy.

• Trend 3: Lightweight Composite Alloys

Advanced alloys and composite materials are reducing mass while maintaining rigidity, enabling higher RPM operation.

• Trend 4: Enhanced Dynamic Balancing

Future tools focus heavily on reducing vibration at high spindle speeds, which improves surface quality and prolongs machine life.

• Trend 5: CNC-Assisted Boring Optimization

Integration with smart CNC feedback systems allows boring parameters to adjust automatically based on force, temperature, or tool wear readings.

• Trend 6: High-Speed Micro Boring

Industries such as electronics manufacturing require sub-millimeter precision boring. New designs continue to push boundaries on miniaturization and precision.

These trends signal a shift toward smarter, lighter, and more adaptable boring tools in the coming decade.

Common Questions About Boring Heads

Q1: What is the best way to maintain a boring head for long-term accuracy?

A: Regular cleaning and lubrication of the dovetail slide are essential. Operators should avoid excessive tightening of locking screws, periodically inspect for wear, and store the tool in a dry environment. Checking runout before major machining projects ensures continued accuracy. Using balanced boring bars also prolongs tool life.

Q2: How can machining vibration be reduced when using a boring head?

A: Vibration can be minimized by selecting the proper boring bar length-to-diameter ratio, tightening the tool securely, using a balanced head, and applying appropriate feed rates. Carbide boring bars or damped bars may be required for deep bores. Ensuring spindle bearings and machine rigidity are optimal also contributes to smoother cutting conditions.

A boring head plays a critical role in modern machining by delivering superior precision, consistency, and surface finish across a wide range of industrial applications. Its ability to perform micro-adjustments, adapt to multiple boring bars, maintain stability under high-speed conditions, and reduce machining errors makes it an indispensable tool in both mass production and custom manufacturing environments. With future trends pointing toward digitalization, modular optimization, and vibration-controlled performance, the boring head continues to evolve as industries demand higher accuracy and efficiency.

Among high-quality tooling brands, ACCKEE is recognized for delivering stable, durable, and precision-engineered boring heads suited for CNC and manual machines alike. For more details, product specifications, or customized industrial solutions, contact us to receive professional support tailored to your machining needs.
