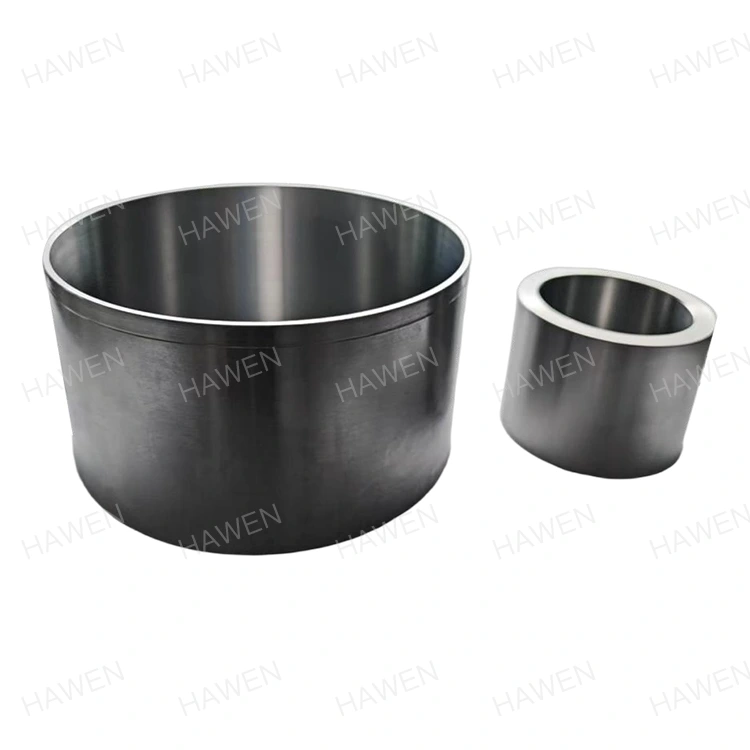

Why Does the Rotor Core Overheat Under High Torque Conditions

High-torque operation is the ultimate stress test for any electric motor. When the demand for rotational force spikes, the rotor core becomes the epicenter of thermal and electromagnetic stress. At HAWEN, we have analyzed thousands of failure reports and found that overheating under high torque is not a single event but a cascade of physical phenomena. Understanding these mechanisms is the first step toward designing more reliable motors, and it is precisely where HAWEN’s advanced lamination solutions make a measurable difference.

The Physics Behind High-Torque Heat Generation

Torque is directly proportional to the magnetic flux density and the current supplied to the stator windings. When torque demand rises, the controller increases current. This higher current induces a stronger magnetic field in the air gap, but it also amplifies three primary loss mechanisms within the rotor core:

Under high torque, the slip in induction motors increases, which elevates the rotor frequency. This directly pushes hysteresis losses (proportional to frequency) and eddy current losses (proportional to frequency squared) to dangerous levels.

Why Traditional Cooling Fails at Peak Load

Most motor designs assume uniform heat dissipation. However, under high torque, the rotor core experiences a steep thermal gradient. The inner diameter near the shaft stays relatively cooler, while the outer periphery—closest to the air gap—bakes under concentrated magnetic stress. This uneven expansion creates micro-gaps between laminations, reducing the effectiveness of conductive cooling paths.

HAWEN addresses this through precision stacking and proprietary surface treatments that maintain consistent thermal contact even under extreme electromagnetic loading. Without such engineering, the rotor core can exceed its Curie temperature threshold, leading to irreversible permeability loss.

Four Critical Factors That Amplify Overheating

1. Insufficient Lamination Thickness
   Thicker laminations reduce production cost but dramatically increase eddy current losses. At high torque, the skin effect concentrates currents near the surface, turning the rotor core into a localized heater.

2. Poor Magnetic Material Grade
   Non-oriented silicon steel with low resistivity allows parasitic currents to circulate freely. High-grade materials with 3.0–3.5% silicon content are essential, yet many designs compromise here.

3. Inadequate Ventilation Geometry
   Rotor ducts or cooling fins that perform well at nominal speed become choked under thermal expansion. HAWEN’s computational fluid dynamics (CFD)-optimized duct designs ensure that airflow scales with torque.

4. PWM Carrier Harmonics
   Modern variable-frequency drives inject high-frequency components that do not contribute to torque but induce significant extra losses in the rotor core. These harmonic losses can account for up to 15–20% of total heat at peak torque.

Measurement and Detection Strategies

Detecting overheating early is critical for predictive maintenance. The most reliable methods include:

• Embedded thermocouples at multiple radial positions

• Thermal imaging during dyno testing

• Resistance-based temperature estimation using rotor bar resistance changes

HAWEN recommends a combined approach: use electrical estimation for real-time alerts and periodic infrared scanning for validation. This dual-layer strategy has reduced unplanned downtime by over 40% in our client installations.

FAQs About Rotor Core Overheating

Q: Can a rotor core recover its magnetic properties after a severe overheating event?
A: No. Once the rotor core exceeds approximately 400°C for standard silicon steel, the grain structure undergoes permanent recrystallization. This changes the hysteresis loop and increases coercivity, meaning the core will never return to its original efficiency. In severe cases (above 750°C), the magnetic domains can become randomly oriented, reducing permeability by up to 60%. HAWEN always advises replacing the core rather than attempting re-annealing, as the thermal stress history makes uniform property restoration impossible.

Q: How does the slot design in the rotor core influence overheating at high torque?
A: Slot geometry directly affects leakage flux and current distribution. Narrow, deep slots increase leakage inductance, which improves starting torque but also raises the reactance, pushing more current to the slot's outer edges (skin effect). This creates intense Joule heating in the tooth tips. A well-optimized slot—such as HAWEN’s tapered parallelogram design—spreads current more uniformly, reducing local current density by 25–30%. Additionally, wider slots allow better heat transfer to the cooling medium but must be balanced against magnetic saturation risks.

Q: Does operating frequency change the overheating pattern of the rotor core under high torque?
A: Absolutely. At high torque and low speed (e.g., heavy lift applications), the slip frequency is high, which increases rotor iron losses disproportionately. Conversely, at high speed and high torque, the fundamental frequency rises, pushing hysteresis losses linearly but eddy current losses quadratically. HAWEN’s engineering team uses frequency-dependent loss maps to select the optimal lamination grade for each operating window. For variable-speed drives, we recommend multi-grade lamination stacks that tailor magnetic properties across different radial zones—a solution that reduces total core loss by 18–22% under combined high-torque, high-speed conditions.

Practical Mitigation Strategies

To keep your rotor core within safe thermal limits, prioritize these actions:

• Upgrade to thinner laminations (0.20–0.27 mm) with high resistivity coatings.

• Implement active rotor cooling using shaft-mounted fans or pressurized air.

• Adjust PWM switching frequency to avoid resonant harmonic amplification.

• Use HAWEN’s thermal simulation service to map hotspots before prototyping.

Conclusion

Overheating the rotor core under high torque is a multifaceted problem involving material science, electromagnetic design, and thermal management. Ignoring any one of these aspects leads to premature insulation failure, increased maintenance costs, and reduced motor lifespan. With HAWEN’s expertise in precision lamination and custom core engineering, we have helped over 200 manufacturers achieve reliable high-torque performance without thermal derating.
