Why Does the Right Trapezoidal Screw Nut Make or Break Your Linear Motion System?

When I first began sourcing precision transmission components for industrial equipment, I quickly realized how much performance depends on one seemingly small part. Over time, through collaboration with engineers and manufacturers like Suzhou Maitu Screw Rod Manufacturing Co., Ltd., I gained a deeper understanding of how a well-designed Trapezoidal Screw Nut can directly influence stability, load capacity, and long-term reliability. What appears to be a simple threaded component often becomes the deciding factor between smooth motion and costly downtime.

What Problems Do Engineers Face When Selecting a Trapezoidal Screw Nut?

In my experience, most buyers are not looking for a generic component. They are trying to solve real operational pain points:

• Unexpected backlash affecting positioning accuracy
• Premature wear under heavy axial loads
• Noise and vibration during operation
• Lubrication challenges in dusty or high-temperature environments
• Inconsistent thread precision from unreliable suppliers

A properly engineered Trapezoidal Screw Nut addresses these concerns by providing predictable linear motion, balanced load distribution, and structural durability. The trapezoidal thread profile itself plays a key role in transmitting force efficiently while reducing stress concentration compared to other thread types.

How Does a Trapezoidal Thread Profile Improve Load Transmission?

The trapezoidal thread geometry is designed for power transmission rather than simple fastening. Unlike standard V-threads, the wider flank angle increases contact surface area between the screw and nut. From what I have observed in practical applications, this design results in:

• Higher axial load capacity
• Improved wear resistance
• Reduced risk of thread stripping
• Better self-locking characteristics in certain configurations

When paired correctly with a precision-machined lead screw, the Trapezoidal Screw Nut ensures smooth conversion of rotary motion into linear motion. This makes it particularly suitable for lifting systems, CNC machinery, automation platforms, and adjustable mechanical assemblies.

Which Materials Deliver the Best Performance in Different Environments?

Material selection is never arbitrary. I always evaluate working conditions before recommending a solution. Below is a comparison that reflects typical engineering considerations.

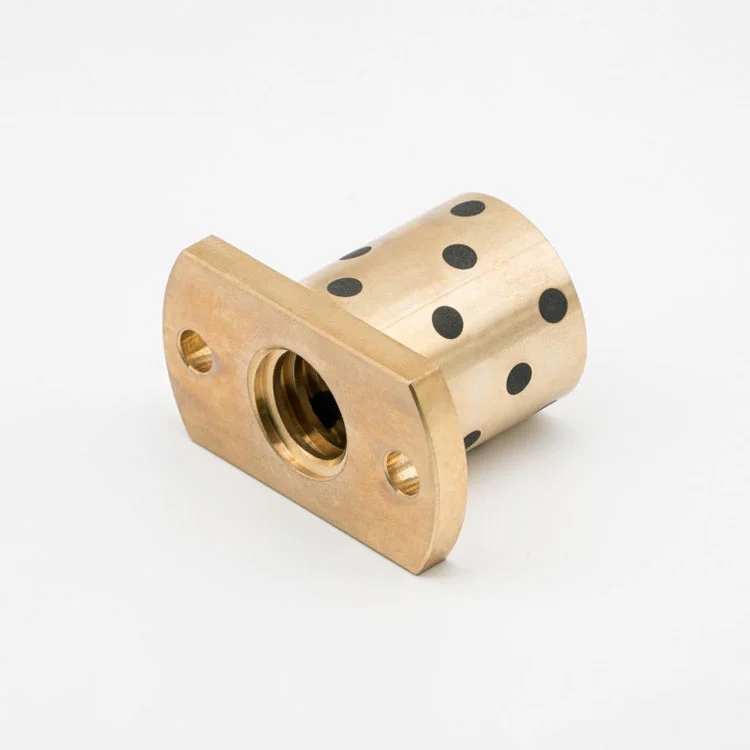

The choice of material directly impacts lifespan and maintenance frequency. In environments with limited lubrication, for example, a bronze Trapezoidal Screw Nut may significantly outperform alternative materials.

How Does Manufacturing Precision Influence Operational Stability?

Thread accuracy determines how evenly the load is distributed across the contact surface. Inconsistent machining tolerances can create uneven wear, leading to vibration or backlash over time.

During factory audits and product evaluations, I pay close attention to:

• CNC machining capability
• Thread profile inspection methods
• Surface roughness measurement
• Heat treatment and finishing processes

A precisely manufactured Trapezoidal Screw Nut will demonstrate consistent pitch, accurate flank angles, and minimal dimensional deviation. These factors collectively enhance positioning accuracy in high-precision equipment.

Why Is Backlash Control So Critical in Linear Motion Systems?

Backlash directly affects repeatability. In automated production lines or CNC equipment, even small positional deviations can lead to quality defects.

There are several practical solutions I often consider:

• Preloaded double-nut structures
• Spring compensation mechanisms
• Precision-matched screw and nut pairing

By integrating a high-quality Trapezoidal Screw Nut with proper anti-backlash design, it becomes possible to significantly reduce mechanical play without sacrificing smooth motion.

Can Customization Improve System Efficiency?

Standard dimensions may not always align perfectly with project requirements. Customization often provides measurable performance benefits. I have seen customized thread leads, flange designs, and internal lubrication channels optimize installation and extend service life.

Customization options typically include:

• Special lead and pitch configurations
• Flange or cylindrical external profiles
• Integrated lubrication grooves
• Anti-corrosion surface treatments

When engineered correctly, a customized Trapezoidal Screw Nut integrates seamlessly into existing mechanical systems and reduces long-term operational costs.

How Does Proper Pairing with Lead Screws Enhance Durability?

Performance depends on compatibility. I always evaluate both the screw rod and the nut as a unified transmission system. Surface hardness, thread accuracy, and lubrication compatibility must be aligned.

If hardness levels differ too drastically, uneven wear may occur. If lubrication is insufficient, friction increases. A carefully matched Trapezoidal Screw Nut ensures balanced interaction and stable torque transmission over extended operating cycles.

What Should Buyers Look for When Choosing a Supplier?

From my professional perspective, supplier evaluation goes beyond price comparison. I recommend assessing:

• Production experience in transmission components
• Quality control procedures
• Customization capability
• Delivery reliability
• Technical consultation support

A reliable manufacturer does not simply deliver a component. They help optimize your linear motion solution through engineering insight and manufacturing consistency.

Are You Ready to Upgrade Your Linear Motion Performance?

If your equipment is experiencing wear issues, positioning instability, or inconsistent load handling, it may be time to reconsider your transmission components. A precisely engineered Trapezoidal Screw Nut can significantly enhance operational stability and extend system lifespan.

I encourage you to evaluate your current design specifications and explore tailored solutions that align with your mechanical requirements. If you are looking for professional guidance, customized production, or reliable supply, please contact us today. Share your project details, and let us help you identify the most suitable Trapezoidal Screw Nut solution for your application.
