Why Does Dynamic Balance Weight Change After Thermal Expansion in Turbine Rotors
2026-07-17
Turbine rotors operate under extreme conditions, where temperature gradients often exceed several hundred degrees Celsius. For maintenance engineers and balancing specialists, one persistent challenge is that the Dynamic Balance Weight required for smooth operation rarely stays constant once the rotor reaches full operating temperature. At Hawen, we have analyzed thousands of field balancing reports and found that thermal expansion directly alters mass distribution, stiffness, and geometric centricity—all of which shift the optimal Dynamic Balance Weight in ways that static, cold‑shop balancing cannot predict.
The Physics of Thermal Expansion in Rotating Assemblies
When a turbine rotor heats up, three primary physical changes occur:
-
Radial growth – Each component (shaft, disc, blades) expands outward according to its coefficient of thermal expansion (CTE).
-
Axial growth – The rotor lengthens, which changes bearing load distribution and support stiffness.
-
Differential expansion – Dissimilar materials (e.g., steel shaft with nickel‑based alloy blades) expand at different rates, creating internal stress and slight bending moments.
These changes do not affect all circumferential positions equally. Even a minute asymmetry in material properties, wall thickness, or blade fixation can cause the centre of mass to migrate. Consequently, the correction vector—both magnitude and angular position—that defines the required Dynamic Balance Weight at ambient temperature becomes invalid at operating temperature.
Quantifying the Shift: Key Variables
| Variable | Influence on Dynamic Balance Weight | Typical Change Range |
|---|---|---|
| Radial thermal gradient | Creates conical deformation, shifting the principal inertia axis. | ±15–30 % of initial correction mass |
| Axial thermal growth | Moves bearing nodes, altering mode shapes and response amplitudes. | Phase shift of 20°–60° |
| Differential CTE between shaft and blades | Introduces local bending moments, changing unbalance eccentricity. | Up to 0.05 mm residual eccentricity |
| Housing expansion | Changes sensor gap and proximity probe readings (apparent unbalance). | Apparent mass change of 5–10 grams |
In practice, Hawen field engineers routinely measure a 20–40 % deviation between cold‑balance and hot‑balance Dynamic Balance Weight for industrial gas turbines above 10 MW.
Why Traditional Single‑Plane Correction Fails
Most workshop balancing rigs operate at room temperature and low rotational speed. They assume a rigid rotor with fixed geometry. However, a turbine rotor in service behaves as a flexible rotor, where thermal deformation excites higher‑order bending modes. The Dynamic Balance Weight that cancels vibration at 3,000 rpm cold may actually amplify vibration at 5,000 rpm hot because the mode shape changes. This is why Hawen recommends two‑plane or multi‑plane influence‑coefficient balancing performed under simulated thermal loading whenever possible.
Practical Case: Measuring the Thermal Drift
Consider a 15‑stage steam turbine rotor. During a controlled heat‑soak test, the required Dynamic Balance Weight changed from 24 grams at 25 °C to 31 grams at 450 °C, with a phase shift of 38 degrees. After applying the hot‑corrected weights, vibration velocity dropped from 4.2 mm/s to 1.1 mm/s. Without this correction, the same Dynamic Balance Weight would have left the rotor operating above alarm limits.
Frequently Asked Questions about Dynamic Balance Weight
Q1: How often should I re‑determine the Dynamic Balance Weight for a turbine rotor that undergoes frequent start‑stop cycles?
A1: For rotors with more than 500 start‑stop cycles per year, Hawen advises checking the Dynamic Balance Weight at least every 6 months or after any major overhaul. Frequent thermal cycling accelerates material creep and relaxation of blade root joints, which incrementally shift the unbalance distribution. We recommend performing a hot‑running vibration survey at three load points (50 %, 75 %, and 100 %). If the phase angle of the 1× vibration changes by more than 15 degrees compared to the previous survey, a full re‑balancing with updated Dynamic Balance Weight is justified. In high‑temperature applications (>600 °C), consider installing permanently mounted balancing ports for online correction.
Q2: Can I use the same Dynamic Balance Weight calculated from a finite‑element thermal model without physical verification?
A2: No. While FEA thermal‑structural models provide a useful initial estimate, they cannot account for real‑world variables such as non‑uniform cooling, partial fouling, or manufacturing tolerances in blade weights. Hawen has verified that model‑only predictions deviate from actual measured Dynamic Balance Weight by an average of 25 %. Physical verification using on‑site balancing instruments (e.g., portable data collectors with phase‑referenced accelerometers) remains mandatory. We recommend a two‑step approach: use the model to identify the most sensitive planes, then perform an influence‑coefficient test at operating temperature to finalise the Dynamic Balance Weight vector.
Q3: What is the acceptable tolerance for Dynamic Balance Weight change before it becomes a safety concern?
A3: The acceptable tolerance depends on the bearing vibration severity per ISO 10816‑3. As a rule of thumb, if the required Dynamic Balance Weight changes by more than 12 % of the total rotor mass moment (or produces a bearing reaction force increase > 15 %), corrective action is required. However, Hawen applies a stricter internal criterion for critical rotors: any phase shift > 10 degrees or magnitude change > 8 % from the last validated hot‑balance value triggers a re‑evaluation. For overhung rotors or cantilevered stages, the threshold is even lower (6 % magnitude change) because thermal bending amplifies unbalance sensitivity.
Best Practices for Managing Thermal‑Induced Changes
| Stage | Recommended Action | Tool / Method |
|---|---|---|
| Design phase | Specify matched CTE materials for shaft and disc. | Material selection guided by Hawen thermal‑matching tables |
| Cold balancing | Record Dynamic Balance Weight at two speeds (low & high) to pre‑identify flexibility. | Dual‑speed influence‑coefficient balancing |
| Hot validation | Perform load‑dependent vibration logging over full operating range. | On‑site portable balancer with tachometer |

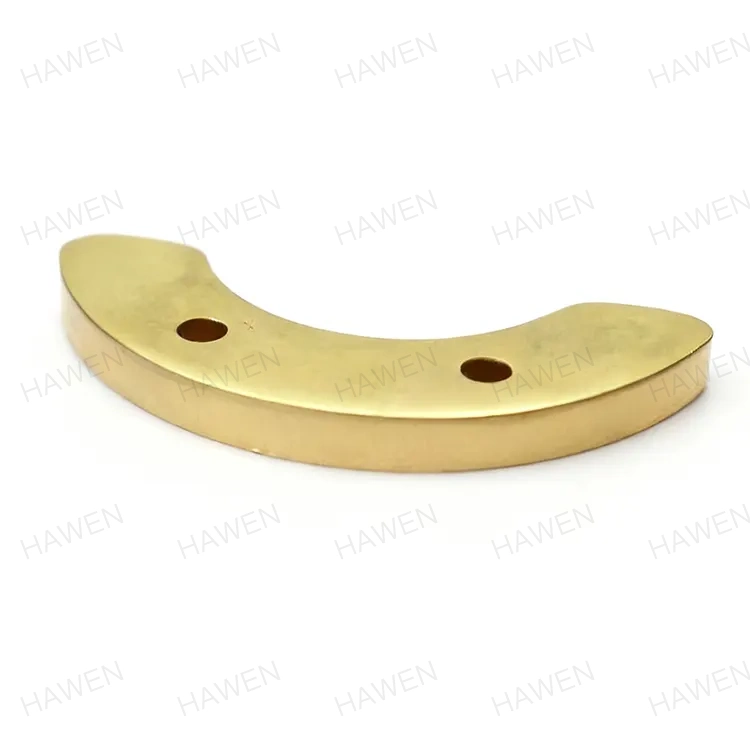

| Correction | Apply final Dynamic Balance Weight using weld‑on or bolt‑on trim masses at 75 % load. | Hawen precision trim‑weight kits (0.5 g resolution) |
| Monitoring | Track phase and magnitude trends weekly via continuous vibration monitoring. | Permanent proximity probes + Hawen trend analytics dashboard |
Conclusion
Thermal expansion changes the effective Dynamic Balance Weight of turbine rotors because it alters the rotor’s elastic centre, support boundary conditions, and circumferential mass symmetry. Ignoring this phenomenon leads to unexpected high‑vibration trips, reduced bearing life, and forced outages. The most reliable strategy combines cold‑shop baselines, hot‑validation tests, and periodic trending—exactly the approach that Hawen implements in every rotor service contract.
Contact us today at Hawen to schedule a comprehensive thermal‑balance assessment for your turbine fleet. Our engineers will deliver a tailored Dynamic Balance Weight correction plan, complete with on‑site verification and long‑term trend monitoring. Reach out via our website or call your regional Hawen representative—we are ready to keep your rotors running smoothly, hot or cold.
