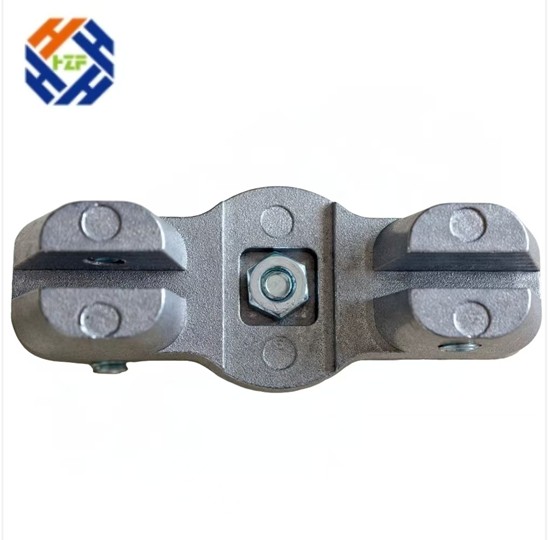

Why Choose an Aluminum Bidirectionally Adjustable Hinged Pipe Clamp over a Fixed Welded Pipe Support

When designing piping systems for industrial, commercial, or infrastructure projects, engineers constantly weigh trade-offs between rigidity, flexibility, maintenance access, and long-term durability. The Aluminum Bidirectionally Adjustable Hinged Pipe Clamp from Haozhifeng has emerged as a compelling alternative to conventional fixed welded pipe supports. While welded supports have been a industry standard for decades, they come with inherent limitations that the adjustable hinged clamp directly addresses—particularly in applications requiring frequent realignment, thermal movement accommodation, or simplified retrofitting.

The Core Differences at a Glance

5 Key Advantages That Drive the Switch

1. Installation Efficiency – A Haozhifeng Aluminum Bidirectionally Adjustable Hinged Pipe Clamp installs in under 10 minutes using a torque wrench. No hot work permits, fire watches, or post-weld heat treatments are required.

2. Maintenance & Inspection Access – When equipment below the pipe needs servicing, simply loosen the clamp, pivot the pipe upward or sideways, and retighten. Welded supports force contractors to cut and re-weld, costing 3–5× more in downtime.

3. Design Iteration Friendly – In EPC (Engineering, Procurement, and Construction) projects, pipe routes often change late in the design phase. Adjustable clamps accommodate route shifts without scrapping fabricated supports.

4. Vibration Damping – The hinged joint introduces controlled flexibility that dissipates harmonic vibrations—a critical benefit for compressor or pump discharge lines. Welded rigid supports can amplify resonance.

5. Lifecycle Cost Reduction – Although the initial unit cost is higher than a simple welded tab, the Aluminum Bidirectionally Adjustable Hinged Pipe Clamp pays back through reusability across multiple projects and reduced labor hours.

Real-World Application Scenarios

FAQ – Common Questions About the Aluminum Bidirectionally Adjustable Hinged Pipe Clamp

Q1: What load capacity and pipe sizes does the Haozhifeng Aluminum Bidirectionally Adjustable Hinged Pipe Clamp support?

A: Haozhifeng manufactures this clamp in six standard sizes covering nominal pipe diameters from DN50 (2") through DN300 (12"). The working load limit ranges from 500 kg to 4,500 kg per clamp, depending on the diameter and hinge pin configuration. For static loads, the safety factor is 4:1 against yield strength. For dynamic loads (vibrating or cycling conditions), we recommend derating by 25% and consulting our engineering datasheet. Custom sizes beyond DN300 are available on request with extended lead times. Each clamp is proof-tested at 1.5× the rated load before shipment.

Q2: Can the Aluminum Bidirectionally Adjustable Hinged Pipe Clamp be used outdoors in coastal or chemically aggressive environments?

A: Yes, with proper surface treatment. The base material is marine-grade aluminum alloy 6061-T6, which naturally forms a protective aluminum oxide film. For coastal (salt spray) or chemical plant environments, Haozhifeng offers an optional hard-anodized coating (Mil-A-8625 Type III) and stainless steel hinge pins (Grade 316) instead of standard zinc-plated pins. With this upgrade, the clamp has passed 1,000 hours of neutral salt spray testing per ASTM B117 with no visible pitting. For extreme acidic or caustic exposures, we also supply a PTFE-impregnated version that reduces friction and adds an extra chemical barrier. Always specify your ambient conditions when ordering.

Q3: How many adjustment cycles can the hinged mechanism endure before wear affects performance?

A: The hinge bushing is engineered from self-lubricating bronze-reinforced polymer, rated for 10,000 adjustment cycles (pivot + vertical tilt) at full rated load with less than 3% loss in clamping force. In typical maintenance scenarios—where adjustments occur 2–4 times per year—this translates to over 20 years of service life. Haozhifeng includes a wear-indicator mark on the hinge pin; when the mark aligns with the housing edge, it signals that bushing replacement is due. Replacement bushing kits are available as off-the-shelf items, and the entire procedure takes less than 5 minutes per clamp using a simple punch tool. We also provide a 5-year warranty on the hinge assembly against fatigue failure.

Cost Comparison Over a 10-Year Project Life

Figures are illustrative averages from North American industrial projects.

Final Verdict

The Aluminum Bidirectionally Adjustable Hinged Pipe Clamp from Haozhifeng is not a universal replacement for every welded support—extreme high-temperature (>400°C) or ultra-high-pressure (>10 MPa) lines may still demand welded solutions. However, for the vast majority of commercial, HVAC, water treatment, petrochemical, and general industrial piping, the adjustability, reusability, lightweight handling, and corrosion resistance offer a superior total-cost-of-ownership profile. Engineers who value future flexibility and rapid on-site problem-solving will find this clamp an indispensable addition to their specification toolkit.

Ready to evaluate the Aluminum Bidirectionally Adjustable Hinged Pipe Clamp for your next project?
Contact the Haozhifeng engineering team today for free load calculations, sample drawings, and on-site demonstration kits. We respond to all technical inquiries within 4 business hours.
