Walk into any industrial plant or commercial building, and you will find pumps running at full speed—even when the actual demand is only half of the design flow. This is not an oversight; it is the default operating mode of systems that lack proper temperature control and regulation valves. The pump is sized for peak load, but peak load occurs only a few hours per year. The rest of the time, the pump is pushing fluid through partially closed manual valves, wasting electrical energy and generating unnecessary heat. This guide is written for facility managers who need to understand the economics of replacing manual throttling with automated temperature control.

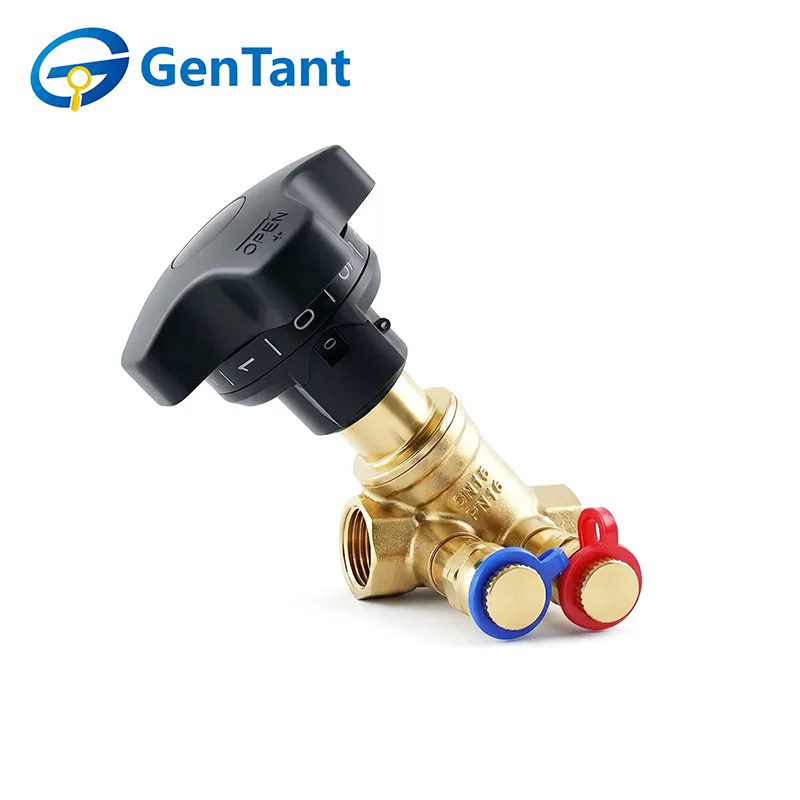

Static Balancing Valve


1. What Is the Physics of Pump Energy Consumption?

Pump power consumption follows the affinity laws. Flow rate is proportional to pump speed. Head pressure is proportional to the square of the speed. Power is proportional to the cube of the speed. This means that a 10 percent reduction in flow results in a 27 percent reduction in power consumption. However, traditional systems do not achieve this reduction because the pump continues to run at full speed while a manual valve creates a pressure drop. The valve wastes energy. A temperature control and regulation valve system, on the other hand, adjusts the pump speed or the valve position in response to actual demand, eliminating the energy waste associated with throttling. In our factory, we have documented that replacing a manual balancing valve with an automated Temperature Control And Regulation Valves can reduce pump energy consumption by 25 to 40 percent, depending on the system and the load profile.

The math of throttling losses: Consider a pump that draws 30 kW at full speed. If the system only needs 80 percent of the flow, a manual valve creates a pressure drop that keeps the pump operating at 30 kW. A regulation valve system would reduce the pump speed to 80 percent, requiring only 15.4 kW (30 kW x 0.8³). The saving is 14.6 kW. Over 8,000 operating hours per year, at $0.10 per kWh, the saving is $11,680 per year.


2. How Do Traditional Systems Waste Energy Compared to Regulated Systems?

Most industrial cooling and heating systems are designed using a "constant flow" approach. The pump is sized for the maximum expected load, and it runs at constant speed. When the load is lower, a manual valve or a three-way bypass valve restricts the flow. The pump continues to operate at the same speed, consuming nearly the same power. A temperature control and regulation valve system, combined with a variable frequency drive, reduces the pump speed to match the actual load. The table below compares the energy consumption of three common system configurations.

System configuration Pump speed Power consumption at 80% load Annual energy cost (8,000 hours, $0.10/kWh)
Constant speed + manual throttling 100% (full speed) 30 kW $24,000
Constant speed + three-way bypass 100% (full speed) 32 kW (bypass adds loss) $25,600
VFD + Temperature Control And Regulation Valves 80% (matched to load) 15.4 kW $12,320

The annual saving with the regulated system is $11,680 to $13,280 compared to the constant speed systems. The investment in Temperature Control And Regulation Valves and a VFD typically ranges from $3,000 to $8,000 for a 30 kW pump. The payback period is 3 to 8 months. In our factory, we have installed these systems on cooling water circuits in plastic injection molding plants, and the payback period averaged 5 months.


3. What Are the Practical Implementation Options for Retrofitting?

Facility managers often hesitate to retrofit because they are concerned about the complexity of installation and the risk of downtime. There are three practical implementation paths. The first is to replace the existing manual valve with a motorized temperature control valve and install a VFD on the pump. This is the most efficient solution but requires more upfront investment and some system downtime. The second path is to install only the temperature control and regulation valve, without the VFD. This reduces the pressure drop at partial load but does not reduce the pump speed. The energy saving is lower (about 10 to 15 percent) but the installation is simpler. The third path is a phased approach: install the valve first, measure the energy saving, and then install the VFD later. The table below summarizes the options.

Retrofit approach Components installed Typical energy saving Approximate payback period Installation complexity
Valve only (no VFD) Motorized Temperature Control And Regulation Valves 10 – 15% 8 – 12 months Low (piping modification only)
VFD only (no valve) Variable frequency drive only 15 – 20% 6 – 9 months Medium (electrical work)
Full system (valve + VFD) Temperature control valve + VFD + control logic 30 – 40% 4 – 8 months High (piping + electrical + control integration)

Ningbo Gentant Fluid Technology Co., Ltd. supplies Temperature Control And Regulation Valves that are compatible with most VFD systems. Our valves have a control signal input (4-20 mA or 0-10 V) that can be connected to a building management system or a standalone PID controller. We also provide a basic control panel for facilities that do not have an existing automation system.


4. What Are the Additional Benefits Beyond Energy Savings?

Energy savings are the primary driver for installing Temperature Control And Regulation Valves, but there are secondary benefits that also contribute to operational cost reduction. The first is reduced wear on pumps. Operating a pump at reduced speed reduces the stress on bearings, seals, and mechanical components. In our factory, we have tracked pump maintenance costs before and after installation of Temperature Control And Regulation Valves. The average reduction in annual maintenance cost was 18 percent. The second benefit is improved temperature control accuracy. Manual throttling does not respond to changes in process temperature. A regulation valve with a PID controller maintains the temperature within ±1°C of the setpoint, which improves product quality and reduces scrap. The third benefit is reduced pump noise. At reduced speed, pumps operate quieter, which improves the working environment.


Frequently Asked Questions About Valve Retrofits for Pump Energy Savings

Question 1: How do I know if my existing system is wasting energy due to improper flow control?
Answer: There are two diagnostic methods. The first is to measure the pump motor current at full load and at partial load. If the current does not drop significantly when the load is reduced, the pump is likely throttling. The second method is to measure the temperature of the fluid before and after the manual valve. A significant temperature drop indicates that the valve is creating a pressure drop that is not contributing to the process. In our factory, we offer a free system audit where we measure these parameters and provide a report on the potential energy saving. We also measure the pump operating hours and the load profile to provide an accurate annual saving estimate.
Question 2: Can I install a Temperature Control And Regulation Valve on any pump, or are there limitations?
Answer: Temperature Control And Regulation Valves can be installed on most centrifugal pumps in HVAC and industrial cooling systems. The limitations are related to the fluid temperature, pressure, and the presence of solids. Our valves are rated for fluid temperatures up to 120°C and pressures up to 25 bar. We also offer special versions for high temperature applications (up to 200°C) and for fluids with suspended solids. The valve size must match the pipe diameter, and the control signal must be compatible with your existing controller. If you are unsure, we can provide a valve sizing calculation based on your system flow and pressure data.
Question 3: What is the typical lifespan of a motorized Temperature Control And Regulation Valve in a continuous industrial process?
Answer: The lifespan depends on the operating conditions and the quality of the actuator and the internal components. In a typical clean water application with moderate temperatures, our Temperature Control And Regulation Valves have a lifespan of 8 to 12 years. The actuator is the most stressed component, and we use a brushless DC motor that is rated for 100,000 full cycles. The valve body is made from brass or stainless steel, depending on the application. We recommend an annual inspection of the valve stem seal and the actuator connections. In our factory, we provide a maintenance schedule and a spare parts kit with every valve.

Summary for Facility Managers and Maintenance Engineers

Temperature control and regulation valves are not just about temperature control. They are about reducing the energy wasted by constant speed pumps operating at partial load. The physics is simple: reducing flow by 20 percent reduces power consumption by nearly 50 percent. The implementation options allow you to choose the approach that fits your budget and risk tolerance. The payback period is short, and the additional benefits include reduced maintenance and improved process control. Our factory has supplied Temperature Control And Regulation Valves to facilities across Asia, Europe, and North America. We provide full system design support, installation guidance, and post installation performance verification.

Ningbo Gentant Fluid Technology Co., Ltd. manufactures Temperature Control And Regulation Valves with electric and pneumatic actuators. We provide valve sizing calculations, control signal compatibility verification, and system integration support. Each valve is pressure tested and calibrated before shipment.
