What Makes a Household Appliance Collector Commutator Essential for Reliable Motor Performance?

Modern household appliances depend on compact electric motors to deliver fast, stable, and controllable motion. From vacuum cleaners and mixers to hair dryers, washing machines, and other motor-driven appliances, the performance of the motor directly affects the overall user experience. Within many brushed motor designs, the Household Appliance Collector Commutator is a critical component that helps transfer electrical energy to the rotating armature and maintain continuous torque. Its design, material quality, dimensional accuracy, and compatibility with carbon brushes can therefore have a direct impact on motor efficiency, operating stability, service life, and maintenance requirements.

For appliance manufacturers and motor component buyers, selecting the right commutator is not simply a matter of matching dimensions. It requires consideration of electrical performance, mechanical strength, insulation, operating speed, temperature, brush compatibility, and application conditions. Ningbo Haishu Nide International Co., Ltd. focuses on motor components and commutator solutions designed for different motor applications, providing customized options according to customer requirements.

What Is a Household Appliance Collector Commutator?

A commutator is a rotating electrical component installed on the armature of a brushed motor. It consists of conductive segments separated by insulating materials. Together with carbon brushes, it provides an electrical connection between the stationary circuit and the rotating armature winding.

During motor operation, the commutator continuously changes the current direction in the armature windings. This switching action helps maintain electromagnetic torque in the appropriate direction, allowing the motor to continue rotating. In universal motors commonly found in appliances such as vacuum cleaners, mixers, and other compact equipment, the commutator works closely with brushes to support high-speed operation.

The basic working process can be summarized as:

1. Electrical current reaches the carbon brushes.

2. The brushes make contact with the rotating commutator.

3. The commutator transfers current into the appropriate armature winding.

4. Current switching maintains the required electromagnetic torque.

5. The armature continues rotating to drive the appliance mechanism.

This makes the commutator much more than a simple conductive component. It is an important part of the motor's electrical switching system.

Why Is the Commutator Important in Household Appliances?

Household appliances often require motors that can deliver high rotational speed, frequent starting and stopping, and reliable performance within a compact structure. A properly designed Household Appliance Collector Commutator can help the motor achieve stable electrical contact while supporting continuous rotation.

Several factors demonstrate its importance:

The commutator therefore influences more than electrical conductivity. Its interaction with the brush system, armature winding, and mechanical assembly can affect the overall operating characteristics of the motor.

What Types of Commutators Are Used for Appliances?

Different motor structures and application requirements call for different commutator designs. Common configurations include hook-type, slot-type, and flat-type commutators. Customized structures can also be developed when standard dimensions do not meet a specific motor design.

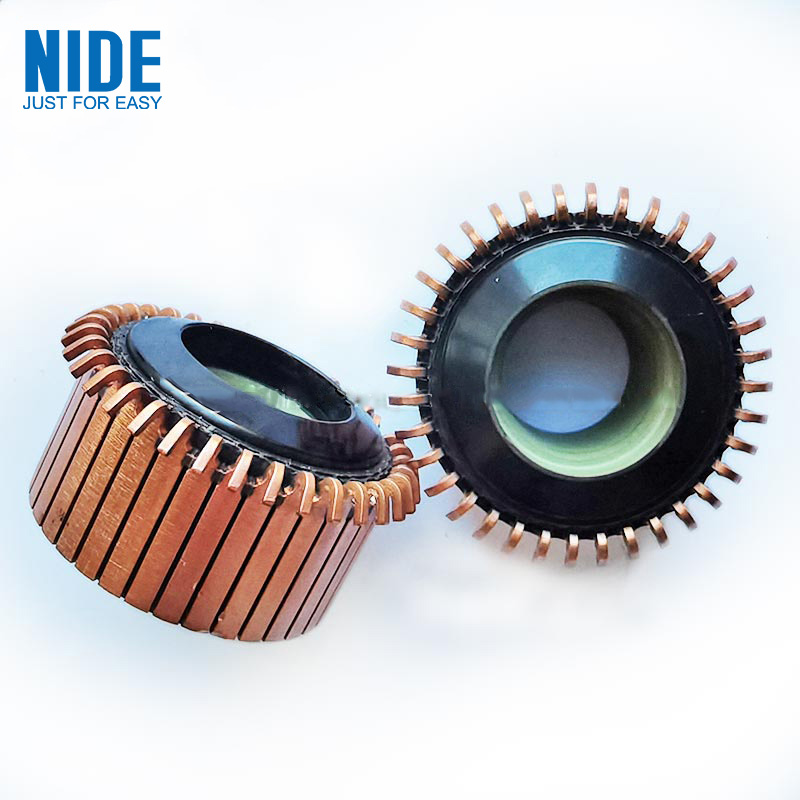

Hook-Type Commutator

A hook-type commutator is designed with connecting structures that facilitate the connection between the commutator segments and armature winding. It can be suitable for various compact motor applications where secure winding connections and reliable assembly are required.

Slot-Type Commutator

Slot-type designs use slots for winding connection. They can be selected according to the armature structure, winding arrangement, and production requirements of the motor.

Flat-Type Commutator

Flat-type commutators provide another structural option for specific motor configurations. Their dimensions and contact characteristics need to correspond closely with the motor and brush system.

The correct choice depends on factors such as motor dimensions, shaft size, number of segments, winding design, rotational speed, brush material, and operating environment.

How Does It Affect Appliance Performance?

The performance of a Household Appliance Collector Commutator can influence several practical characteristics of the finished appliance.

Stable Current Transfer

Consistent contact between the commutator and brushes is essential for stable electrical transmission. Poor contact may contribute to increased electrical losses, irregular motor operation, or excessive sparking.

Reliable Motor Rotation

The commutator continuously switches current between armature coils. Accurate segment positioning and reliable electrical connections help the motor maintain smooth electromagnetic operation.

Controlled Wear

The commutator operates in direct contact with brushes, meaning friction and electrical arcing must be considered. Appropriate material selection, surface quality, dimensional precision, and brush compatibility can help manage wear during long-term operation.

Improved Appliance Reliability

A motor is only as reliable as the interaction between its key components. When the commutator, armature, brushes, bearings, and insulation system are properly matched, the motor can provide more consistent performance throughout its intended service life.

Which Factors Should Buyers Consider?

For appliance manufacturers and motor producers, choosing a commutator requires more than checking the outside diameter. Important specifications should be evaluated as a complete system.

Key considerations include:

• Commutator outside and inside diameter

• Number of segments

• Segment dimensions

• Shaft and mounting requirements

• Armature winding connection

• Insulation structure

• Operating voltage and current

• Motor rotational speed

• Carbon brush specifications

• Working temperature

• Mechanical strength

• Required service life

• Production consistency

For high-volume appliance production, dimensional consistency is particularly important because even small variations can affect assembly and motor performance.

Household Appliance Applications

A Household Appliance Collector Commutator can be applied to various motor-driven products where brushed motor technology is used.

Typical applications include:

• Vacuum cleaners

• Blenders

• Food mixers

• Hair dryers

• Washing machine motors

• Small household fans

• Kitchen appliances

• Personal care appliances

• Portable electrical equipment

• Other compact motor-driven appliances

The specific application determines the required commutator structure and performance specifications. For example, a high-speed vacuum cleaner motor may place greater emphasis on mechanical balance, brush compatibility, and high-speed durability, while another appliance may have different electrical and dimensional requirements.

How Can Customized Commutators Support Motor Development?

Standard components are useful for conventional motor designs, but appliance manufacturers often develop motors with specific dimensions, performance targets, or installation limitations. In these situations, customization can provide greater flexibility.

Ningbo Haishu Nide International Co., Ltd. provides commutator solutions for different motor applications and can work according to customer specifications. Customization may involve dimensions, segment configuration, connection structure, and other product requirements.

For OEM and motor manufacturers, this approach can help align the commutator with the complete motor assembly rather than forcing an existing standard component into an unsuitable design.

What Results Can a Quality Commutator Deliver?

A properly selected and manufactured commutator can contribute to:

More stable operation: Reliable electrical contact supports consistent motor performance.

Better brush interaction: Proper surface and dimensional characteristics can help establish suitable contact with carbon brushes.

Reduced maintenance concerns: Appropriate component matching can help control excessive wear and electrical problems.

Consistent production: Accurate dimensions are valuable for manufacturers producing motors in large quantities.

Application flexibility: Different structural configurations can support different household appliance motor designs.

Why Choose Ningbo Haishu Nide International Co., Ltd.?

For motor manufacturers and appliance component buyers, the commutator should be considered as part of the complete motor system. Ningbo Haishu Nide International Co., Ltd. focuses on motor components and provides different types of commutators for household appliances and other motor applications.

With options including hook-type, slot-type, and flat-type structures, the company can support different motor designs and customer specifications. Its product approach combines application requirements with dimensional and structural considerations, helping customers select or develop suitable commutator solutions.

For buyers seeking a reliable Household Appliance Collector Commutator, working with an experienced component supplier can simplify product selection, customization, and motor development.

Final Thoughts

Although a commutator is a relatively small component, its role in a brushed motor is significant. It provides the switching function required for continuous armature operation and works directly with the brush system to transfer electrical current. For household appliances, the right commutator design can support stable motor operation, reliable torque, controlled wear, and consistent product performance.

As appliance motors become more compact and application requirements become increasingly specialized, choosing a suitable Household Appliance Collector Commutator becomes an important part of motor design and sourcing. Ningbo Haishu Nide International Co., Ltd. can provide professional commutator solutions for different household appliance applications and customized motor requirements.

If you are developing a new appliance motor, replacing an existing commutator, or looking for a customized solution, contact us to discuss your specifications, application requirements, and production needs.
