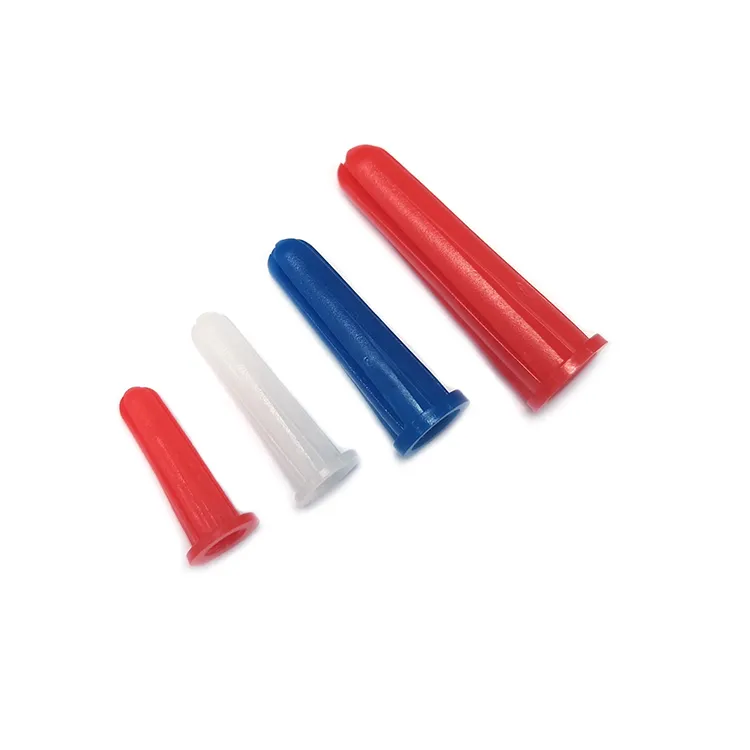

What is the Maximum Weight a Conical Wall Plug Plastic Anchor Can Safely Support in Hollow Walls
2026-05-15
When installing fixtures on hollow walls such as drywall or plasterboard, the most common question is about load capacity. A Conical Wall Plug Plastic Anchor is specifically designed to distribute pressure evenly behind the wall surface, and Yilan has engineered its anchors to meet strict safety standards. Understanding the maximum weight limit prevents failures and ensures long-term reliability.
Understanding Load Ratings for Hollow Walls
The safe working load of a Conical Wall Plug Plastic Anchor depends on several factors: wall thickness, anchor diameter, screw type, and installation accuracy. In standard 1/2-inch drywall, a quality Conical Wall Plug Plastic Anchor from Yilan typically supports between 20 and 50 pounds (9 to 23 kg) per anchor under static vertical loads. Dynamic loads or pull-out forces reduce this limit by 30–40%.
The table below summarizes Yilan anchor performance based on independent testing:
| Anchor Size (mm) | Wall Thickness (mm) | Max Safe Weight (Static Vertical) | Recommended Screw Diameter |
|---|---|---|---|
| 5 x 30 | 10-12 | 20 lbs (9 kg) | #6 (3.5 mm) |
| 6 x 32 | 12-15 | 35 lbs (16 kg) | #8 (4.0 mm) |
| 8 x 40 | 15-18 | 50 lbs (23 kg) | #10 (4.8 mm) |
For hollow walls with insulation or double-layer boards, Yilan recommends reducing the maximum weight by 20% to account for uneven backside support.
Critical Factors That Influence Load Capacity
-
Wall material: Plasterboard holds less than cement board. Conical Wall Plug Plastic Anchor performance drops by 40% in old or moisture-damaged drywall.
-
Installation depth: Anchors not fully seated reduce capacity by over 50%. Yilan anchors feature a depth-stop collar to prevent this.
-
Screw thread engagement: At least 80% of screw threads must grip the anchor body. Coarse-thread screws work best with Yilan designs.
-
Load direction: Horizontal loads (shelves) are safer than pull-out loads (ceiling fixtures). For ceiling use, reduce the Conical Wall Plug Plastic Anchor weight limit by 50%.
Common Mistakes That Reduce Maximum Safe Weight
Oversized pilot holes, reusing anchors, or over-tightening screws can cut holding power by 60%. Yilan includes a step-by-step guide with every pack to avoid these issues. Always test one anchor in an inconspicuous area before final installation.
FAQ: Conical Wall Plug Plastic Anchor Common Questions
What happens if I exceed the maximum weight recommendation for a Conical Wall Plug Plastic Anchor?
Exceeding the stated limit causes the anchor to rotate inside the hollow wall or pull through the front surface. Initially, the fixture may feel loose. Continued overloading leads to sudden failure, damaging the wall and dropping the mounted object. Yilan tests anchors at 150% of rated weight to provide a safety buffer, but users should never intentionally exceed the published safe working load. For heavy items like flat-screen TVs or large mirrors, spread the load across multiple anchors or switch to toggle bolts.
Can a Conical Wall Plug Plastic Anchor be used in hollow ceilings and what weight can it hold?
Yes, but ceiling installations significantly reduce load capacity due to constant gravity pull-out force. A Conical Wall Plug Plastic Anchor rated for 35 lbs in a wall holds only 15–18 lbs in a ceiling. Yilan specifically advises against using these anchors for ceiling fans or heavy light fixtures. For ceiling applications, the anchor must be fully seated against the backside of the hollow board with no gaps. Use a shorter screw to avoid pushing the anchor forward, and never install in ceilings thicker than 15mm. For any ceiling load above 10 lbs, Yilan recommends hollow-wall toggles instead.
How do I verify the actual safe weight for my specific hollow wall material?
Perform a pull-out test using a spring scale. Install one Conical Wall Plug Plastic Anchor from Yilan following the exact instructions. Attach the scale to a screw driven into the anchor and pull perpendicular to the wall. Note the weight at which the anchor begins to move or the wall shows deformation. Divide that number by 2 for a conservative safe working load. For example, if movement starts at 50 lbs, your maximum safe weight is 25 lbs. Yilan also provides a QR code on each package linking to material-specific load charts updated quarterly.
For project-specific load calculations or to request sample kits of the Conical Wall Plug Plastic Anchor range, reach out to Yilan directly. Visit the official website to speak with an engineering support representative or email your wall specifications for a customized recommendation. Secure your installations with trusted data.
