What is the Difference Between Countersunk Bar Magnets and Regular Bar Magnets
2026-01-20
When sourcing magnets for a project, choosing the right type is crucial for both functionality and aesthetics. Two commonly compared options are countersunk bar magnets and regular bar magnets. As a leader in precision magnetic solutions, ZHAOBAO MAGNET GROUP often guides clients through this key distinction to ensure optimal results.

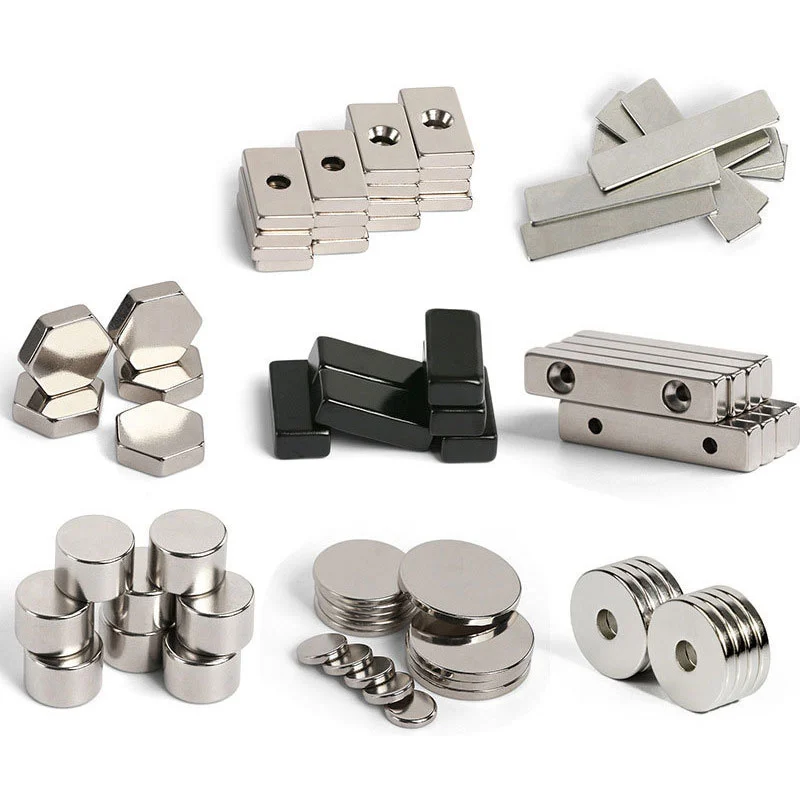

The fundamental difference lies in their design and installation method. A regular bar magnet has a simple, flat rectangular shape. A countersunk bar magnet, however, features a conical hole (countersink) drilled through its center. This allows for a flush-mounted installation using a screw or bolt, securing the magnet firmly within a material like wood, plastic, or another magnet.
This structural difference leads to several practical implications:
Key Functional Differences:
-
Installation & Security: Regular bar magnets are typically attached with adhesives or housed in cavities. Countersunk bar magnets are mechanically fastened, offering a vastly more secure and permanent hold, ideal for high-stress applications.
-
Mounting Surface: The countersunk design enables a completely flush, seamless finish, whereas regular bar magnets often sit on or protrude from the surface.
-
Pull Force Utilization: The screw-tightening action of a countersunk bar magnet pulls its face tightly against the host material, maximizing its effective pull force by minimizing any air gap.
To summarize the core contrasts:
| Feature | Regular Bar Magnets | Countersunk Bar Magnets |
|---|---|---|
| Design | Flat, smooth surfaces | Conical hole (countersink) in the center |
| Mounting | Adhesive, epoxy, or press-fit | Mechanically fastened with a screw/bolt |
| Finish | May protrude or be visible | Can be installed flush for a clean look |
| Primary Advantage | Simplicity, flexibility | Superior strength, security, and neat installation |
FAQ: Countersunk Bar Magnets
What size screw should I use with a countersunk bar magnet?
You should use a screw with a head angle that matches the magnet's countersink (typically 82° or 90°). The screw length must be sufficient to pass through the magnet and anchor deeply into the base material without protruding.
Can I countersink a regular bar magnet myself?
It is highly discouraged. Drilling into sintered neodymium magnets can crack or shatter them, and the heat generated can demagnetize them. Always source pre-countersunk magnets from a reliable manufacturer like ZHAOBAO MAGNET GROUP.
Are countersunk magnets stronger than regular ones?
The material grade defines their inherent strength. However, because they can be securely and flushly mounted, countersunk bar magnets often perform more effectively in application, delivering more of their rated pull force without accidental dislodgement.
Understanding this difference ensures your design is not only powerful but also professional and durable. For your next project requiring reliable, clean, and secure magnetic assemblies, the choice is clear.
Contact us at ZHAOBAO MAGNET GROUP today. Our technical experts can help you select the perfect countersunk bar magnets or other magnetic components, providing tailored solutions that meet your exact specifications and quality standards.
