What Is the Difference Between a Clamping Ring and a Locking Ring in Pipe Connections

In industrial piping systems, fastening components are often confused—but few pairings generate as much technical debate as the clamping ring versus the locking ring. While both serve to secure joints, their mechanical principles, installation methods, and failure modes are fundamentally different. For engineers and procurement specialists working with high-pressure or sanitary lines, understanding this distinction is critical. At United, we have designed, tested, and supplied both components across oil & gas, food processing, and pharmaceutical plants for over two decades, and we consistently see misapplications that lead to leaks, galling, or premature fatigue.

Core Mechanical Principle: Radial Force vs. Axial Interference

The primary difference lies in how each component creates a seal or lock.

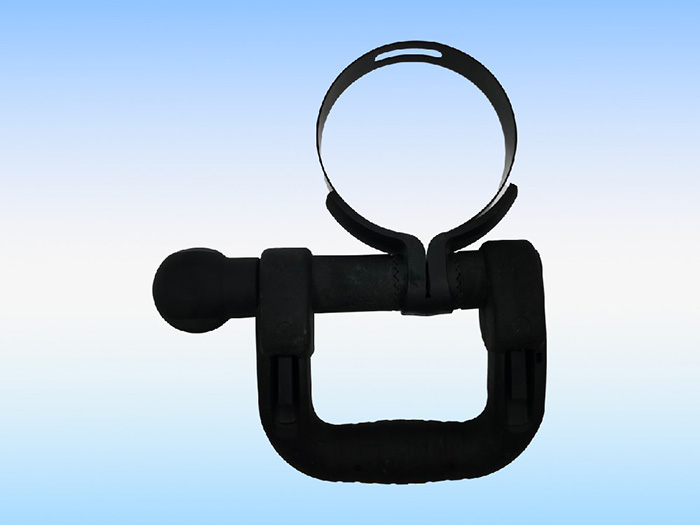

A clamping ring (e.g., Tri-Clamp ferrule style) exerts even inward pressure, making it ideal for sanitary connections where crevice-free sealing is mandatory. A locking ring, conversely, uses axial force—often via a tapered thread or eccentric cam—to create a mechanical stop that resists back-off from vibration.

Application Contexts: Where Each Excels

• Clamping Ring – Found in biopharmaceutical tubing, dairy lines, and high-purity water systems. Also used in hydraulic cylinder end-caps where quick disassembly is required.

• Locking Ring – Common in bearing retainers, pneumatic quick-couplers, and heavy-duty threaded pipe unions where thermal cycling causes thread expansion.

At United, we often advise clients that if your priority is cleanability and visual alignment, choose a clamping ring. If your priority is anti-vibration and axial retention, the locking ring is superior. Neither is universally better—the correct choice depends on pressure rating, frequency of disassembly, and media corrosivity.

Installation & Maintenance Contrast

3 Frequently Asked Questions About the Clamping Ring

Q1: Can a clamping ring replace a locking ring in a high-vibration compressor discharge line?

A: Not directly. A clamping ring provides radial sealing but offers minimal axial resistance to rotational loosening. In high-vibration environments (e.g., reciprocating compressors), the clamping ring can actually rotate microscopically with each pulsation, leading to gasket fretting. United recommends using a locking ring in such cases, or pairing a clamping ring with a secondary anti-rotation pin. If you must use a clamping ring, choose a split-design with multiple bolts and apply a thread-locking compound—but expect more frequent retorquing.

Q2: How do I know if my clamping ring is over-torqued during installation?

A: Over-torque is the number-one field failure for a clamping ring. Warning signs include: (1) bolt threads stretching beyond their elastic limit, (2) the gasket extruding visibly beyond the ferrule edge, and (3) a reduction in clamp gap to less than 0.5 mm on standard 2‑inch sizes. United provides a torque chart for each clamping ring series—always use a calibrated wrench and apply torque in three incremental passes (30%‑60%‑100%) in a star pattern. If you hear a "click" from galling before reaching spec, stop immediately; the ring or ferrule may be damaged.

Q3: Are clamping rings compatible with plastic pipes (PVC/CPVC)?

A: Yes, but with severe limitations. A clamping ring exerts concentrated radial force; on thermoplastics, this can cause cold-flow creep or ovality over time. United offers a specialized clamping ring with a wider band width (40 mm vs. standard 25 mm) to distribute load and a built-in stop collar to prevent over-compression. However, for plastic pipes above 2 inches, we generally advise switching to a flanged locking ring design. Always check the pipe manufacturer's allowable crush force—and never use a standard stainless clamping ring directly on PVC without an internal stiffener sleeve.

Material & Cost Implications

The price gap exists because a clamping ring requires precision-machined mating surfaces and polished ID finishes to avoid bacterial trapping. A locking ring, being primarily a mechanical stop, has looser tolerances. United stocks both in standard sizes, but we always recommend a material upgrade to 316L for any clamping ring exposed to chloride-rich media.

Final Verdict: Selection Workflow

1. Define the primary threat – leakage or loosening?

2. If leakage is critical → select a clamping ring with a validated gasket.

3. If loosening is critical → select a locking ring with a positive locking feature (e.g., wire-retained).

4. If both are critical → use a clamping ring plus a separate locking nut on the adjacent thread.

United has developed a hybrid solution—the United Clamp-Lock™—which integrates a split clamping ring with a cam-actuated locking tab, but that is reserved for extreme subsea applications.
