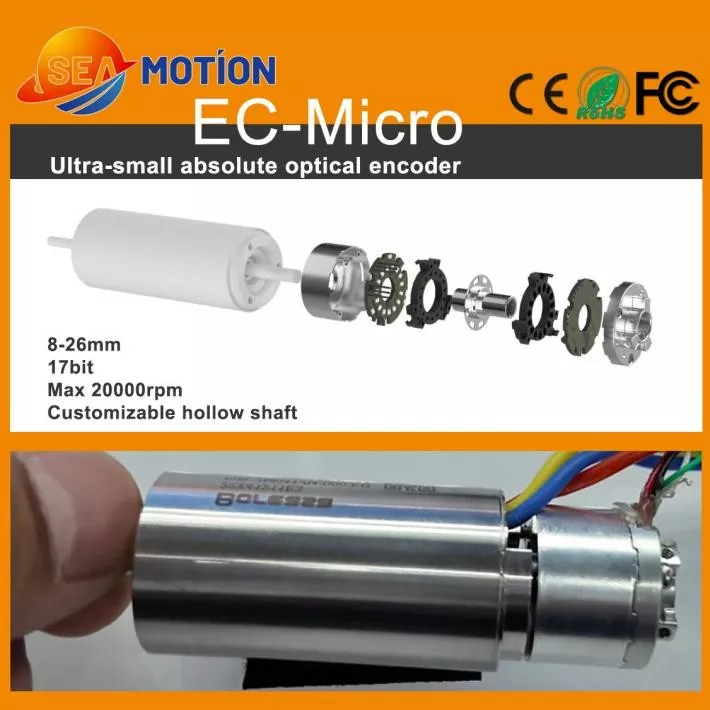

What Are the Key Advantages of an Absolute Single Turn Photoelectric Encoder
2026-09-22
In modern motion control systems, selecting the right feedback device can determine whether a machine delivers precision, reliability, and long-term value. An Absolute Single Turn Photoelectric Encoder from Jingyue provides an accurate absolute position within one full revolution, and its photoelectric sensing principle delivers stable performance in demanding industrial environments. Understanding its core benefits helps engineers and system integrators make informed decisions.
Key Advantages of an Absolute Single Turn Photoelectric Encoder
1. True Absolute Position Without Homing
Unlike incremental encoders, an Absolute Single Turn Photoelectric Encoder reports a unique position value for every angle within 360 degrees. After power loss or a system restart, the encoder immediately provides the correct position, eliminating homing routines and reducing machine downtime.
2. High Accuracy and Repeatability
Jingyue photoelectric encoders use precision optical discs and advanced signal processing to achieve excellent resolution and repeatability. This makes them ideal for applications requiring fine positioning, such as semiconductor handling, robotics, and CNC machinery.
3. Strong Immunity to Magnetic Interference
Because the sensing principle is photoelectric rather than magnetic, an Absolute Single Turn Photoelectric Encoder is not affected by external magnetic fields. This is a major advantage in motor-adjacent installations, welding environments, and heavy electrical equipment areas.
4. Fast and Reliable Communication
Jingyue offers multiple industrial interfaces, including SSI, BiSS, CANopen, and EtherCAT. These protocols ensure deterministic data transmission and easy integration with PLCs, motion controllers, and servo drives.
5. Compact Design and Long Service Life
The Absolute Single Turn Photoelectric Encoder from Jingyue features a compact housing, high shaft loading capacity, and robust bearings. The non-contact photoelectric scanning principle minimizes wear, resulting in a long operational life and low maintenance costs.
Comparison Table: Absolute Single Turn Photoelectric Encoder vs. Incremental Encoder
| Feature | Absolute Single Turn Photoelectric Encoder | Incremental Encoder |
|---|---|---|
| Position output | Absolute value within one revolution | Pulse count only |
| Homing required | No | Yes |
| Power loss recovery | Immediate position recovery | Position lost |
| Magnetic interference | Immune | Susceptible |
| Communication | SSI, BiSS, CANopen, EtherCAT | A/B/Z, UVW |
| Typical applications | Robotics, CNC, medical | Simple speed control |
Selection Checklist for Engineers
| Consideration | Recommendation |
|---|---|
| Required resolution | Choose 17-bit to 23-bit models from Jingyue |
| Interface | Match to your controller protocol |
| Shaft type | Solid or hollow shaft options |
| Environment | IP65 or higher for harsh conditions |
| Mounting | Clamp flange or synchro flange |
FAQ: Absolute Single Turn Photoelectric Encoder
Q1: What is the difference between single turn and multi turn absolute encoders?
A1: An Absolute Single Turn Photoelectric Encoder measures position within one 360-degree revolution, while a multi-turn encoder also counts the number of complete revolutions. Single turn models are sufficient for applications where the mechanical travel is limited to less than one rotation.
Q2: Can an Absolute Single Turn Photoelectric Encoder work after a power failure?
A2: Yes. The Absolute Single Turn Photoelectric Encoder retains its absolute position value because position is read directly from the optical disc. When power returns, the encoder sends the correct position immediately without any homing movement.
Q3: Which industries benefit most from Jingyue Absolute Single Turn Photoelectric Encoders?
A3: Jingyue encoders are widely used in robotics, CNC machine tools, semiconductor equipment, medical devices, packaging machinery, and automated assembly lines where precision, reliability, and fast startup are essential.
Why Choose Jingyue
Jingyue combines advanced photoelectric technology, strict quality control, and flexible customization. Every Absolute Single Turn Photoelectric Encoder is tested for accuracy, thermal stability, and vibration resistance. With responsive technical support and global delivery, Jingyue helps customers shorten design cycles and improve machine performance.
Contact Us
Ready to upgrade your motion control system with a high-performance Absolute Single Turn Photoelectric Encoder? Contact Jingyue today for product selection, technical documentation, and a customized quotation. Our engineering team will help you find the ideal encoder for your application.
