What Are the Key Advantages, Functions and Trends of an Automatic Swing Door?
2025-10-22
An automatic swing door represents a fully or partially automated hinged entry system that facilitates barrier-free access, safe egress and controlled passage for pedestrians. The focus of this written piece is to examine the product definition, the key specifications of a high-quality automatic swing door solution, and to unearth the reasons why adoption is increasing in commercial, institutional and public-space applications. The discussion will also explore how such doors operate and what future trends are shaping the corridor.
| Parameter | Typical Specification |
|---|---|
| Leaf width | Up to approx. 1 600 mm (63 in) for heavy-duty models |
| Leaf weight | Up to 400 kg (≈880 lb) in heavy-duty systems |
| Drive type | Motorised gear/arm drive, microprocessor controller |
| Activation method | Sensors (motion, radar), push-pads, access control integration |
| Compliance / Safety | Standards such as EN 16005, ANSI/BHMA A156.10/19 |
| Energy mode | Fully-automatic mode or low-energy (power-assist) mode |
By understanding these key parameters, facility managers, architects and building owners can select an automatic swing door solution that aligns with traffic volume, architectural context, accessibility and safety requirements. The remainder of this article will deep-dive into why this category of door is increasingly preferred, how it works in practice, and what to anticipate in future evolution.
Why choose an Automatic Swing Door?
Accessibility & User-Experience
Automatic swing doors enhance accessibility by eliminating the need for manual force to open a door. This benefits users with mobility restrictions—such as wheelchair users or those pushing trolleys—and supports compliance with accessibility standards.In high-traffic zones, automatic swing doors can elevate the user experience by giving a smooth, welcoming first impression.
Hygiene, Safety & Contact-less Operation
In environments where hygiene is critical (e.g., hospitals, labs, food processing facilities), the hands-free operation of an automatic swing door reduces touchpoints, minimizing germ transmission. Additionally, modern systems integrate sensors and safety logic to detect obstruction, ensure safe closing forces and comply with relevant safety norms.
Energy Efficiency & Environmental Comfort
By tightly controlling the opening and closing of the door and minimising unintended open-time, automatic swing doors help reduce heat loss or intrusion of external air, thereby improving energy performance of the building envelope.
Aesthetic Integration & Retrofit Flexibility
Automatic swing doors can be designed to complement modern or heritage architecture. Low‐energy operators allow retrofit of existing manual swing doors while preserving aesthetics.This flexibility supports upgrade paths without full structural rework.
Compliance & Integration with Building Systems
These doors support integration with access control, building automation systems, and safety/fire alarm systems. The ability to connect with broader building management systems adds operational value for security and facility maintenance.
Common Questions & Answers
Q. What is the difference between low-energy and full-energy automatic swing doors?
A. Low-energy swing doors have reduced opening/closing speeds and lower kinetic energy, making them appropriate for interior or lower-traffic areas, often operated manually unless assistance is required. Full-energy doors operate continuously via motor at full speed/force and are used in high-traffic external or public building entrances.
Q. How does an automatic swing door contribute to safety compliance?
A. It incorporates sensors to detect people in the swing path, limits closing force per standards (such as EN 16005 or ANSI/BHMA), and can integrate with fire/smoke systems for emergency egress. By doing so it reduces risks of collision or entrapment and helps satisfy regulatory requirements.
Section 3: How does an Automatic Swing Door work?
Activation & Control
Automatic swing doors are activated by approaches such as motion sensors, radar, or push-panels. Once triggered, the motorised drive opens the door to a predefined angle and remains open for a dwell period before closing. The controller monitors safety sensors during operation.
Drive & Mechanism

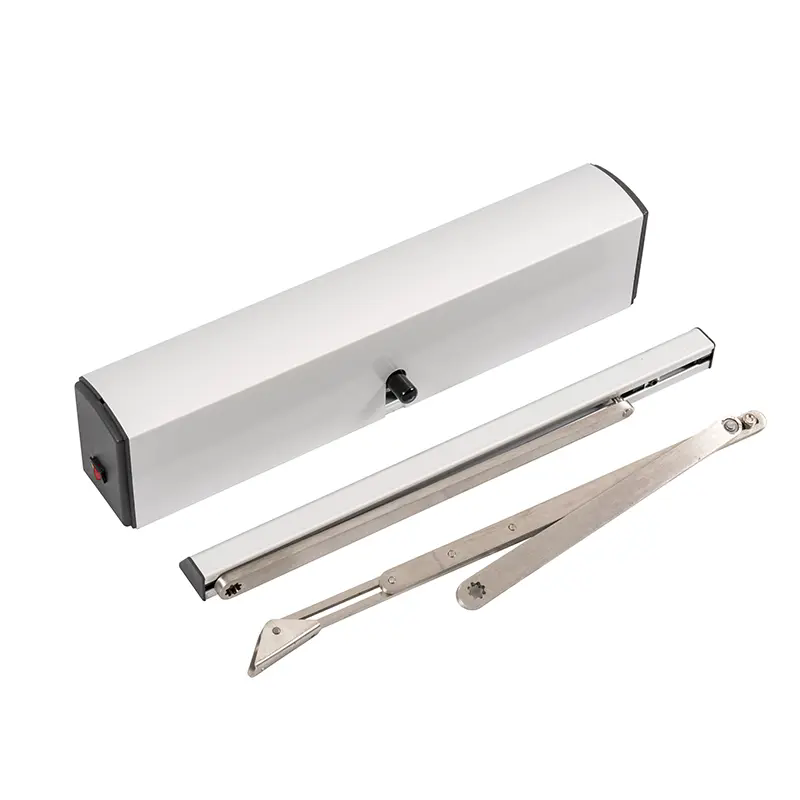

A drive unit (often overhead or concealed) engages the door leaf via arm or spindle linkage. High-end systems use microprocessor-based logic, allowing adjustment of opening/closing speeds, dwell time, and obstacle detection thresholds.
For example, a model may support leaf widths up to 1 220 mm and maximum leaf weight around 230 lbs (≈105 kg) in certain configurations.
Safety & Sensor Systems
Sensors such as triangulation sensors detect objects in the path of the door leaf, stopping or reversing the motion to prevent entrapment.Safety logic also interfaces with fire alarm or emergency systems to ensure egress remains possible even in power-failure modes.
Installation & Maintenance
Installation may involve mounting the drive on or above the door, configuring the controller for the door size/weight, aligning sensors, and calibrating the system. Maintenance typically includes sensor cleaning, lubrication of mechanical components, and verification of safety interlocks. Proper maintenance ensures consistent performance, longevity and compliance.
Common Questions & Answers
Q. Can existing manual swing doors be upgraded to automatic operation?
A. Yes. Many automatic swing door systems are designed for retrofit applications, allowing manual doors to be equipped with motorised drive units, sensors and controllers without full door replacement.
Q. What happens during a power outage or emergency on an automatic swing door?
A. Most systems include fail-safe or emergency mode features enabling manual operation or maintaining the door in open/egress mode. Integration with fire alarm systems ensures the door will open or remain unlocked for safe exit.
Future Trends & Strategic Considerations
Smart Integration & IoT Connectivity
The next generation of automatic swing doors will increasingly integrate with building Internet-of-Things (IoT) platforms, enabling remote monitoring of usage statistics, predictive maintenance alerts, status dashboards and energy usage analytics.
Touch-Free Activation & Hygiene Focus
Especially in a post-pandemic environment, demand for touch-free entry has accelerated. Automatic swing doors equipped with radar, infrared or camera-based activation reduce contact points and are becoming standard in healthcare, food processing, and clean-area settings.
Energy Optimization & Sustainability
Manufacturers will refine algorithms and drive systems to further reduce idle power consumption, optimise opening/closing cycles and support green building certifications. Doors may also become part of energy-management systems to control air-flow and building envelope performance.
Enhanced Safety & Compliance Beyond Standard
With evolving standards worldwide, automatic swing doors will feature more advanced obstacle-detection systems (e.g., camera-based or LiDAR sensors), higher reliability in wind-load or high-traffic scenarios, and more robust emergency egress features.
Modular & Retrofit-Friendly Designs
As renovation of existing buildings becomes a major market, automatic swing doors designed for retrofits—minimal structural impact, modular retrofit kits, versatile mounting options—will proliferate. The ability to maintain architectural aesthetics while upgrading to automation will be key.
In summary, automatic swing doors are evolving from a convenience feature to a strategic entry component that supports accessibility, security, hygiene and operational intelligence. For building owners and facility managers seeking to future-proof their entrances, focusing on integration, sustainability and retrofit flexibility will be vital.
The automatic swing door category stands at the intersection of architectural design, accessibility mandate, operational efficiency and smart-building innovation. As explored above—what an automatic swing door is, why it offers compelling benefits, how it functions in real-world installations, and what future trends will shape its adoption—stakeholders now have a comprehensive professional view of the product category. For organisations ready to elevate their entrances, the brand VEZE offers a portfolio aligned with these trends and technical demands. To discuss how VEZE’s automatic swing door solutions can support your specific project requirements, please contact us.
