What Are SMT Ground Pin Brass Locating Standoff Hardware and Why Are They Used in PCB Assembly
2026-09-24
In modern printed circuit board assembly, mechanical stability and electrical grounding are equally critical to product reliability. SMT Ground Pin Brass Locating Standoff Hardware has become a preferred solution for engineers who need precise positioning, durable grounding, and repeatable placement during reflow soldering. At Qiyiguo, we manufacture these components with tightly controlled tolerances to support high-volume SMT production. This article explains what this hardware is, how it works, and why it matters in PCB assembly.
What Is SMT Ground Pin Brass Locating Standoff Hardware?

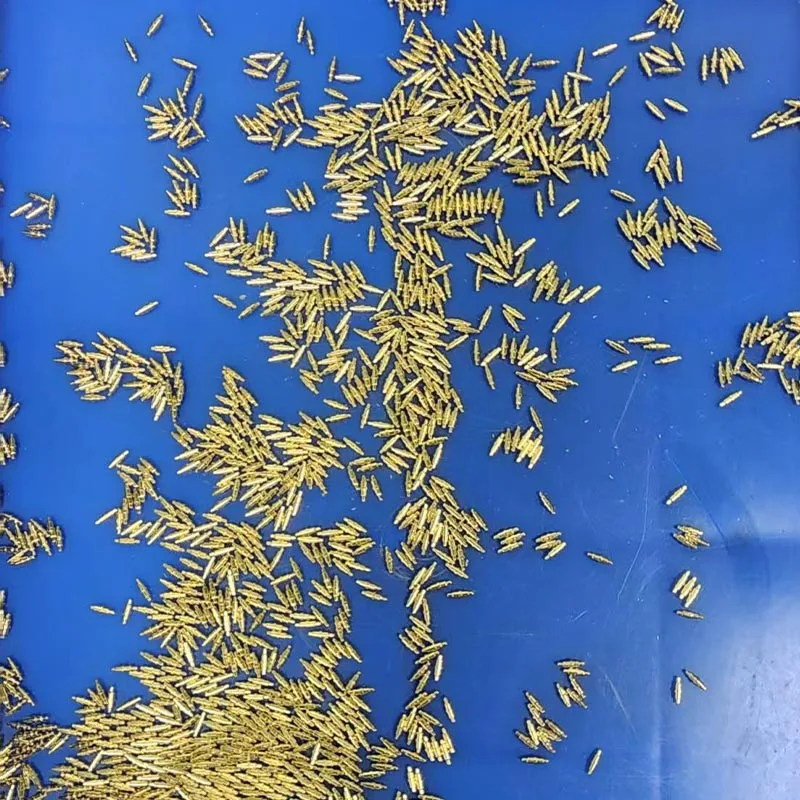

SMT Ground Pin Brass Locating Standoff Hardware is a surface-mount component that combines three functions in one part: a ground pin, a locating standoff, and a brass mechanical support. It is typically placed on a PCB pad, secured during reflow soldering, and used to align, support, or ground another board, shield, or metal chassis.
Key characteristics include:
-
Brass construction for conductivity, corrosion resistance, and mechanical strength
-
Surface-mount compatibility for automated pick-and-place and reflow processes
-
Grounding path between PCB and chassis or shielding structures
-
Locating function for precise alignment of mating components
Core Functions and Benefits
| Function | Description | Assembly Benefit |
|---|---|---|
| Grounding | Provides a low-resistance electrical path | Reduces EMI and improves signal integrity |
| Locating | Positions mating parts or boards accurately | Prevents misalignment during assembly |
| Standoff | Maintains a fixed height or gap | Protects components and ensures mechanical stability |
| SMT mounting | Compatible with reflow soldering | Enables fully automated production |
Why SMT Ground Pin Brass Locating Standoff Hardware Is Used in PCB Assembly
-
Automated Assembly Compatibility – The surface-mount design allows pick-and-place machines to position parts quickly and consistently.
-
Reliable Grounding – Brass offers excellent conductivity, which helps maintain a stable ground reference in sensitive circuits.
-
Mechanical Alignment – The locating feature reduces tolerance stack-up and improves mating accuracy.
-
Thermal and Mechanical Durability – Brass withstands reflow temperatures and repeated mechanical stress.
-
Space Efficiency – One component performs multiple functions, saving board space and reducing part count.
Design and Selection Considerations
| Consideration | Recommended Approach |
|---|---|
| Plating | Tin or gold over brass for solderability |
| Tolerance | Tight tolerances for accurate locating |
| Height | Match chassis or shield clearance requirements |
| Current capacity | Select based on grounding current needs |
| Reflow profile | Verify compatibility with standard SMT processes |
Qiyiguo supports custom heights, plating options, and tolerances to match specific PCB assembly requirements.
FAQ
What is the main purpose of SMT Ground Pin Brass Locating Standoff Hardware?
It provides simultaneous grounding, mechanical standoff, and locating functions so that PCBs, shields, or chassis components stay aligned and electrically stable during and after assembly.
Can SMT Ground Pin Brass Locating Standoff Hardware be used in high-volume production?
Yes, its surface-mount design is compatible with standard pick-and-place and reflow soldering equipment, making it suitable for high-volume automated PCB assembly.
How do I choose the right SMT Ground Pin Brass Locating Standoff Hardware for my PCB?
Consider height, plating, tolerance, grounding current, and reflow compatibility, then work with a supplier like Qiyiguo to match the part to your assembly process.
Conclusion
SMT Ground Pin Brass Locating Standoff Hardware delivers grounding, alignment, and mechanical support in a single surface-mount component. For engineers seeking consistent performance and efficient assembly, Qiyiguo offers reliable brass standoff solutions tailored to PCB requirements.
Contact us today to discuss your SMT Ground Pin Brass Locating Standoff Hardware specifications and request a quote.
