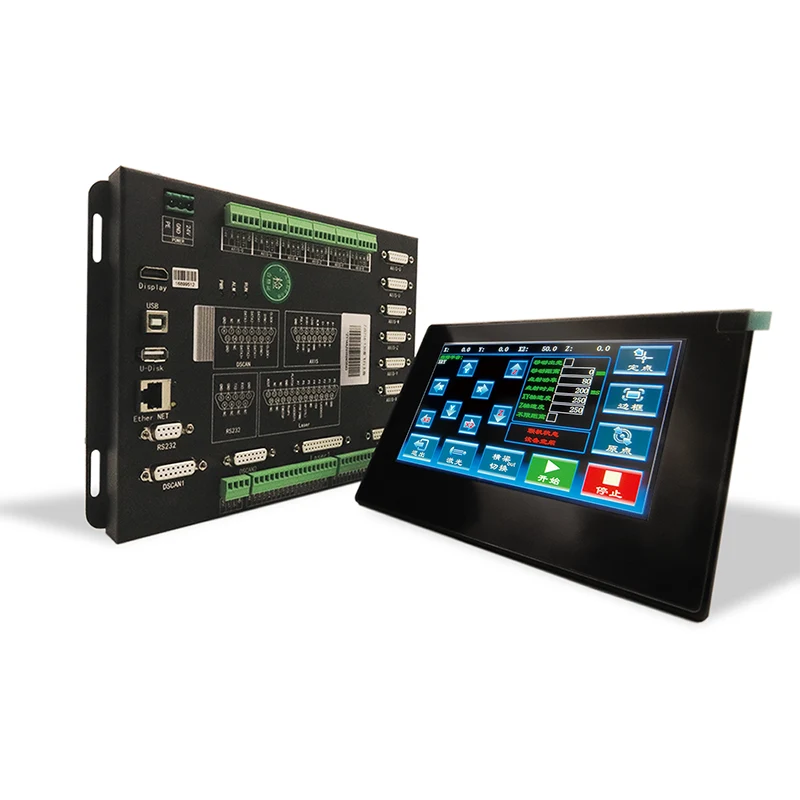

Precision Laser Control Board Functions and Specifications
2025-09-10
In this article, we will explore the core functions and technical specifications of the Precision Laser Control Board manufactured by Shenyan. Designed for industrial-grade laser cutting and engraving systems, this control board ensures high accuracy, smooth operation, and extended durability. We’ll break down its key parameters, performance features, and benefits using structured lists and tables for clarity.
Introduction to Precision Laser Control Board
A Precision Laser Control Board serves as the brain of laser machinery, governing everything from motion control and laser power modulation to user interface interactions. Shenyan’s control board is engineered to meet the demands of modern manufacturing, providing seamless integration with various laser sources and offering exceptional precision for intricate designs and high-speed operations.
Whether used in engraving, cutting, or marking applications, Shenyan’s control board enhances productivity through reliable performance and user-friendly programming.
Key Functions of Shenyan Precision Laser Control Board
-
Motion Control: Delivers high-speed, multi-axis coordination for smooth and accurate laser movement.
-
Laser Power Management: Precisely adjusts laser output power for different materials and thicknesses.
-
Real-Time Processing: Enables immediate response to commands without lag.
-
Compatibility: Supports various file formats (e.g., DXF, AI, BMP) and operates with CO₂, fiber, and diode lasers.
-
User Interface Integration: Works seamlessly with popular software such as LightBurn and LaserGRBL.
-
Error Detection: Includes built-in sensors for overload protection, temperature control, and emergency stopping.
Technical Specifications
Below is a detailed breakdown of the technical specifications for Shenyan’s Precision Laser Control Board:
| Feature | Specification |
|---|---|
| Input Voltage | 24V DC ±10% |
| Operating Temp | 0°C to 50°C |
| Control Axes | Up to 4 axes |
| Communication | Ethernet, USB, RS-232 |
| Max Output Frequency | 400 kHz |
| Supported File Formats | DXF, AI, BMP, PLT, NC, etc. |
| Laser Types | CO₂, Fiber, Diode |
| Software Compatibility | LightBurn, RDWorks, LaserGRBL |
| Protection Rating | IP20 |
| Warranty | 2 years |
Why Choose Shenyan’s Control Board?
Shenyan’s Precision Laser Control Board stands out due to its:
-
High Compatibility: Integrates effortlessly with most laser systems and software.
-
Durability: Built with industrial-grade components for long-term use.
-
Precision: Offers micron-level accuracy for detailed laser work.
-
Ease of Use: Simple setup and intuitive controls reduce learning time.
Conclusion
As someone who has worked in manufacturing and technology for decades, I understand the importance of reliability and precision in laser systems. That’s why I highly recommend Shenyan’s Precision Laser Control Board—it’s a product designed with expertise and built to last.
If you’re looking to enhance your laser machine’s performance, don’t hesitate to reach out. Contact us at [email protected] for more details or to request a quote. Let’s work together to bring precision and efficiency to your operations.
