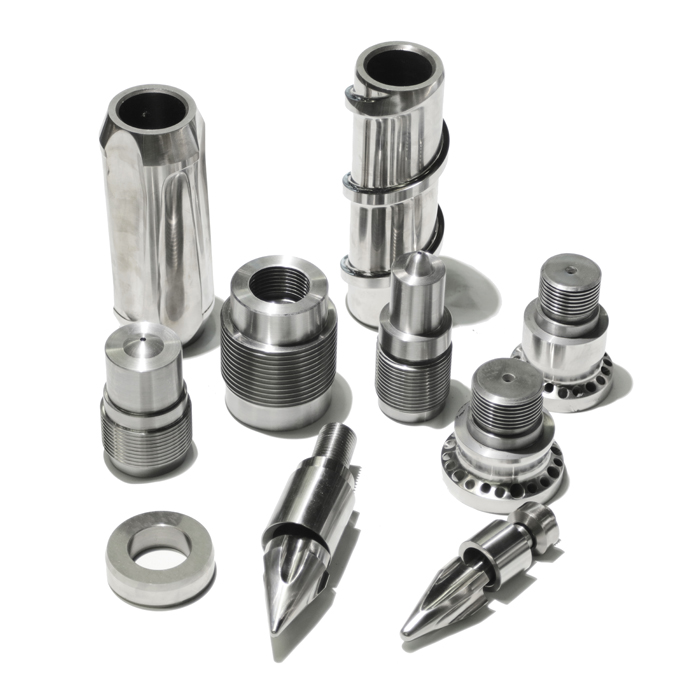

How to Measure Wear on an Injection Molding Screw Barrel Without Disassembling It

For maintenance engineers and production managers, unplanned downtime is the single largest cost driver in plastic injection molding. The root cause often traces back to one critical component: the injection molding screw barrel. Traditionally, assessing its condition meant shutting down the line, pulling the screw, and using micrometers—a process that takes hours or even days. Yet with modern non-destructive techniques, you can now evaluate wear with remarkable accuracy while the injection molding screw barrel remains fully installed. At E.J.S, we have specialized in wear diagnostics for over two decades, and this guide outlines the proven methods that keep your press running while delivering data you can trust.

Why In-Situ Wear Measurement Matters

Wear on the injection molding screw barrel manifests as reduced flight depth, increased clearance between the screw and barrel wall, and localized scoring. These changes directly affect melt quality, recovery time, and shot-to-shot consistency. Measuring wear without disassembly eliminates the risk of re-assembly errors, cuts diagnostic time by up to 70%, and allows you to schedule corrective action precisely when needed—not before, not after a catastrophic failure.

Method 1: The "Cold Push" Pressure-Decay Test

This is the most reliable shop-floor technique. With the injection molding screw barrel at room temperature, you fill the feed zone with a low-viscosity polymer (or a specialized test compound). You then apply a fixed hydraulic pressure to the screw via the injection cylinder and record the forward movement over a set time window.

• How it works: Increased internal clearance allows more melt to flow past the flights, accelerating forward drift.

• Interpretation: A drift exceeding 3–5 mm over 10 seconds under standard pressure indicates flight wear exceeding 0.15 mm on diameter.

• Advantage: No sensors, no disassembly, and repeatable within ±2%.

Method 2: Ultrasonic Wall-Thickness Mapping

Portable ultrasonic thickness gauges, paired with curved-transducer probes, can measure the remaining barrel wall thickness from the outside. For the screw itself, you measure the root diameter indirectly by comparing the known outer diameter (from factory drawings) against the radial clearance derived from ultrasonic transit-time differences.

Critical tip: Always take readings at three circumferential positions (0°, 120°, 240°) to detect ovality—a common failure mode that disassembly often misses.

Method 3: Real-Time Process Signature Analysis

Without any physical contact, you can monitor the injection molding screw barrel health by tracking hydraulic pressure profiles during the plasticizing phase. A worn unit shows a characteristic "drooping" peak pressure and a longer recovery time. Modern press controllers log this data, and when you overlay a baseline taken right after a new injection molding screw barrel was installed, you can quantify wear as a percentage increase in recovery time.

Practical rule from E.J.S: A 15% rise in recovery time at the same screw RPM correlates with a 0.10 mm increase in radial clearance—well within the measurable range for predictive maintenance.

Comparison of Non-Disassembly Methods

For most shops, we at E.J.S recommend combining the pressure-decay test for weekly screening with ultrasonic mapping monthly. This two-tier approach gives you both speed and precision, and it has helped our clients extend injection molding screw barrel life by an average of 22% before first replacement.

Common Pitfalls and How to Avoid Them

• Temperature variation: Always measure at the same barrel temperature (ideally room temperature) because thermal expansion skews clearance readings by up to 0.05 mm per 50°C.

• Resin residue: Clean the feed throat and purge thoroughly before any test—trapped material changes resistance and falsifies pressure-decay results.

• Reference baseline: Without an original factory drawing or a baseline taken when the injection molding screw barrel was new, all absolute measurements are guesswork. E.J.S provides free baseline recording templates with every new barrel shipment.

Injection Molding Screw Barrel FAQ

Q1: How often should I perform non-disassembly wear tests on my injection molding screw barrel?
A1: For general-purpose resins (PP, PE, PS), a weekly pressure-decay test combined with a monthly ultrasonic check is sufficient. For highly abrasive materials (glass-filled or mineral-filled compounds), increase frequency to daily pressure-decay tests and weekly ultrasonic readings. The key is trend detection—a single measurement tells you little, but three consecutive weekly readings showing progressive drift give you a 4–6 week lead time to order a replacement from E.J.S without rushing premium shipping.

Q2: Can these methods detect barrel scoring or localized damage, or only uniform wear?
A2: Uniform clearance increase is easily captured by all three methods. Localized scoring—often caused by metal contamination or degraded screw tip—is best detected by ultrasonic mapping taken at multiple angular positions, as mentioned above. Pressure-decay and process signatures tend to average out localized damage, so they may underreport it. If you suspect scoring, always perform the 3-position ultrasonic scan and compare readings; a deviation greater than 0.07 mm between positions confirms localized wear. In that case, we recommend a borescope inspection through the nozzle end as a secondary validation.

Q3: What wear threshold indicates that my injection molding screw barrel must be replaced immediately?
A3: There is no single universal number, but based on E.J.S field data from over 1,200 presses, the following rules apply: for general-purpose resins, replace when radial clearance exceeds 0.20 mm or when barrel wall thickness loss surpasses 10% in the metering zone. For engineering resins (PC, ABS, Nylon 6/6), the threshold drops to 0.15 mm clearance because viscosity is more shear-sensitive. Critically, if your pressure-decay test shows a drift exceeding 6 mm in 10 seconds, that indicates flight wear deep enough to cause surging; schedule replacement within the next 2 production shifts. Always confirm with a visual check of the parts—if you see burn marks or inconsistent gloss, the injection molding screw barrel has already crossed the functional limit.

Building a Predictive Maintenance Log

Create a simple spreadsheet with columns for date, test method, clearance value, recovery time, and operator initials. After three months, you will see a linear wear rate. Extrapolate that line forward—when it hits your replacement threshold, you have your target replacement date. E.J.S offers complimentary wear-trend analysis software with every barrel order, turning raw numbers into a clear RAG (Red-Amber-Green) dashboard.

When Disassembly Is Still Unavoidable

Non-disassembly methods are highly reliable for 85% of wear assessments, but they cannot measure internal flight radius wear or inspect the non-return valve. If your data shows sudden step-changes (e.g., clearance jumps 0.08 mm in one week), that points to a broken flight or valve ring—and yes, that requires pulling the screw. However, you now make that decision based on evidence, not guesswork.
