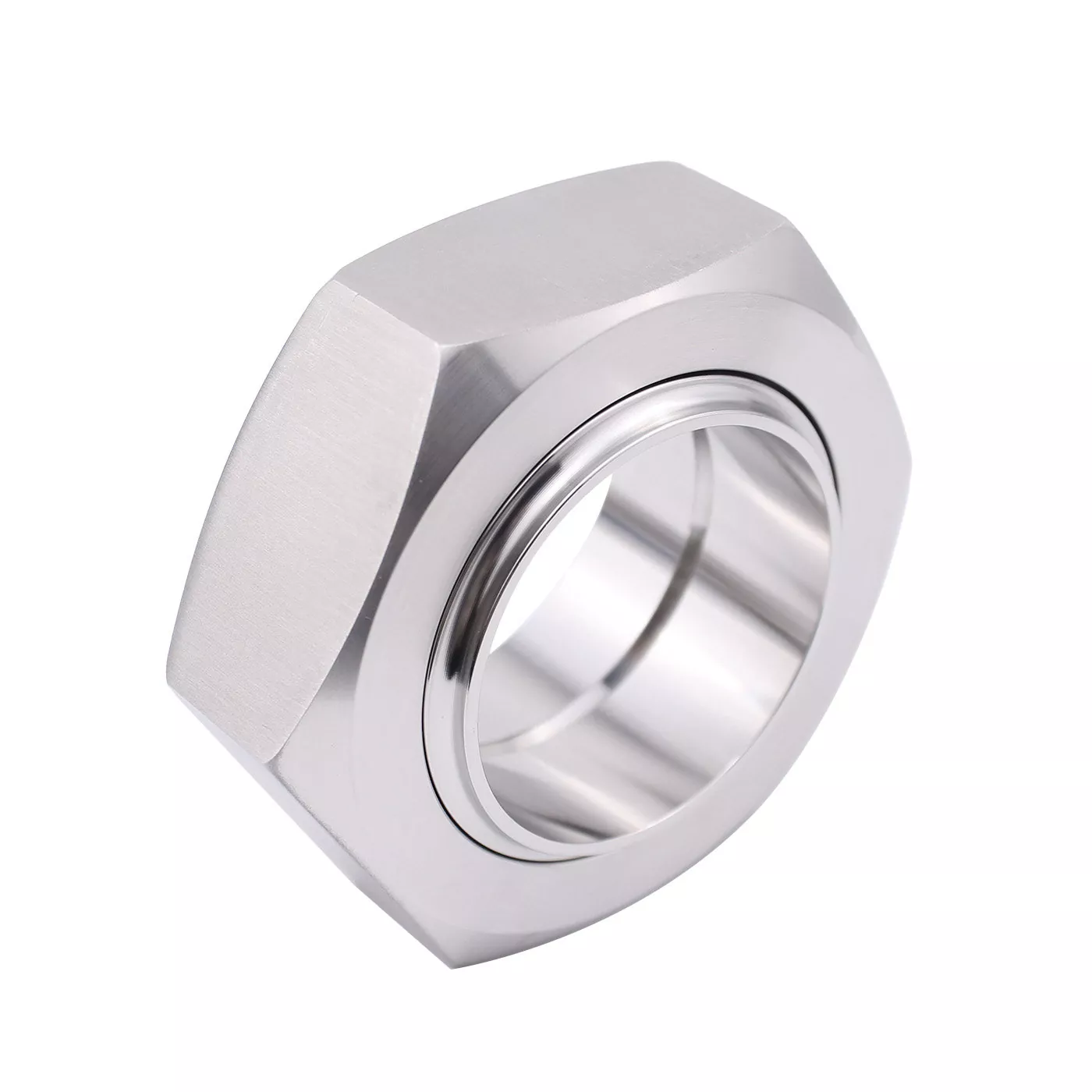

How to install a 3A Sanitary Stainless Steel Union Fitting properly
2026-10-15
DINGYUE is a leading sanitary fluid component manufacturer with 24 years of experience supplying 3A-certified parts for global food, dairy, pharmaceutical and beverage production lines, and its 3A Sanitary Stainless Steel Union Fittings series strictly follows 3A 08-03 sanitary design standards to eliminate dead legs, avoid product residue and support fully automated CIP/SIP cleaning. Improper installation is one of the top causes of unexpected leakage, bacterial contamination and shortened service life for these precision components, even when using high-quality certified products. This article breaks down verified step-by-step installation guidelines, industry standard tolerances and common mistake avoidance tips to help maintenance and engineering teams achieve fully compliant, long-lasting sealing performance.
Standard Installation Step Reference
The correct installation of 3A Sanitary Stainless Steel Union Fittings follows a 4-step standardized process that meets 3A hygiene requirements, with no hidden gaps left for microbial growth:
- Pre-installation inspection: Check all components including the union nut, sealing gasket, inner and outer ferrules for scratches, burrs or material contamination, confirm the gasket material matches the process fluid and temperature rating.
- Pipe end preparation: Trim the connected stainless steel pipe to a perfectly flat, burr-free vertical end, polish the edge smoothly and wipe all contact surfaces with food-grade isopropyl alcohol to remove residual particles.
- Alignment and assembly: Insert the PTFE or EPDM sanitary gasket between the two precisely aligned pipe ends, make sure no gasket edge extends into the inner flow path to avoid creating product residue dead spots.
- Torque-controlled tightening: Use a calibrated torque wrench to tighten the union nut evenly to the specified torque value, do not over-tighten to avoid deforming the ferrule or crushing the gasket which would cause premature seal failure.
The table below lists standard torque values for common size specifications:
| Union Size (Inch) | Recommended Torque (N·m) | Maximum Working Pressure | Gasket Material Recommendation |
|---|---|---|---|
| 1" | 12-15 | 10 bar | Food-grade EPDM |
| 1.5" | 18-22 | 10 bar | PTFE |
| 2" | 25-30 | 10 bar | EPDM or PTFE |
3A Sanitary Stainless Steel Union Fittings FAQ
Q: What risks will happen if the 3A Sanitary Stainless Steel Union Fittings are over-tightened during installation?
A: Over-tightening will deform the precision machined stainless steel ferrule, create uneven compression on the sealing gasket, cause local gasket extrusion damage, and leave tiny gaps at the sealing face that trap product residue, leading to bacterial growth, cross-contamination and unexpected process fluid leakage.
Q: Can I reuse the original sealing gasket when disassembling and reinstalling the 3A Sanitary Stainless Steel Union Fittings for pipeline maintenance?
A: No. After the first installation and long-term operation under process temperature and pressure, the gasket has formed permanent compression deformation. Reusing it will not achieve the required uniform sealing compression, which will break the 3A sanitary seal integrity and introduce hidden hygiene risks.
Q: What is the correct way to align the two connected pipes during installation to meet 3A sanitary standards?
A: The inner diameter of the two connected pipes must be perfectly concentric with the inner diameter of the union fitting, with no step difference exceeding 0.2mm at the joint. Any misalignment will create a recessed area where product can accumulate, making CIP cleaning ineffective and violating 3A sanitary design requirements.
