How to Choose and Install a Quick Saddle for PVC Pipes Efficiently?

Abstract

Quick saddle fittings for PVC pipes are essential components in modern pipeline systems, especially for irrigation, water supply, and industrial fluid distribution. They provide a fast and reliable way to create branch connections without cutting or dismantling the main pipeline. This article explores how to select the right quick saddle, how to install it correctly, and how to avoid common operational issues. It is designed to address key customer concerns such as leakage, compatibility, durability, and installation efficiency.

Table of Contents

• Introduction to Quick Saddle for PVC Pipes
• Key Benefits and Applications
• How to Choose the Right Quick Saddle
• Technical Parameters Overview
• Step-by-Step Installation Guide
• Common Problems and Solutions
• Maintenance and Longevity Tips
• FAQ
• Conclusion

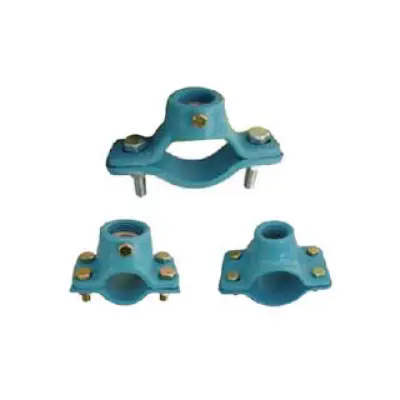

Introduction to Quick Saddle for PVC Pipes

A quick saddle for PVC pipes is a mechanical fitting designed to create a branch outlet from an existing pipeline without extensive modification. It is widely used in water distribution systems, agricultural irrigation networks, and industrial piping systems where efficiency and reliability are critical.

Traditional methods often require cutting the pipe and installing tees, which increases downtime and labor costs. Quick saddles eliminate these inefficiencies by offering a clamp-on solution that ensures a secure and leak-proof connection.

Key Benefits and Applications

• Fast Installation: No need for pipe cutting or welding.
• Cost Efficiency: Reduces labor and operational downtime.
• Versatility: Suitable for irrigation, municipal water supply, and industrial use.
• Leak Prevention: Designed with sealing systems to ensure tight connections.
• Durability: Made from corrosion-resistant materials for long-term use.

These fittings are particularly valuable in large-scale agricultural systems where rapid expansion or repair is often required.

How to Choose the Right Quick Saddle

Selecting the appropriate quick saddle is critical to ensure system performance and longevity. Below are the main factors to consider:

• Pipe Diameter Compatibility: Ensure the saddle matches the outer diameter of the PVC pipe.
• Pressure Rating: Choose a saddle that meets or exceeds system pressure requirements.
• Material Quality: High-quality plastics or reinforced composites offer better durability.
• Sealing Mechanism: Look for EPDM or rubber gaskets for enhanced sealing.
• Outlet Size: Match the outlet size with the required branch connection.

Technical Parameters Overview

Step-by-Step Installation Guide

Proper installation is essential to ensure a leak-free and durable connection. Follow these steps:

1. Clean the Pipe Surface: Remove dirt, grease, and debris to ensure proper sealing.
2. Mark the Installation Area: Identify the exact location for the branch outlet.
3. Position the Saddle: Place the saddle evenly around the pipe.
4. Tighten the Bolts: Secure the saddle using bolts or clamps, ensuring uniform pressure.
5. Drill the Outlet Hole: Use an appropriate drill bit through the saddle outlet.
6. Connect the Branch Pipe: Attach the secondary pipeline securely.
7. Test for Leaks: Run water through the system and inspect for any leakage.

This process significantly reduces installation time compared to traditional pipe modification methods.

Common Problems and Solutions

• Leakage at the Joint: Check gasket alignment and ensure bolts are evenly tightened.
• Improper Fit: Verify pipe diameter compatibility before installation.
• Cracking Under Pressure: Use saddles with appropriate pressure ratings.
• Loose Connection: Retighten bolts and ensure correct torque is applied.

Addressing these issues early helps maintain system integrity and prevents costly repairs.

Maintenance and Longevity Tips

• Inspect fittings periodically for signs of wear or leakage.
• Avoid over-tightening, which may damage the saddle or pipe.
• Replace worn-out gaskets to maintain sealing performance.
• Ensure proper alignment during installation to reduce stress on the fitting.

Routine maintenance can significantly extend the service life of quick saddle fittings.

FAQ

Q1: Can quick saddles be used for high-pressure systems?

Yes, but it is important to select a model with an appropriate pressure rating such as PN16 to ensure safety and performance.

Q2: Do I need special tools for installation?

Basic tools such as a wrench and drill are sufficient. No specialized equipment is required.

Q3: Are quick saddles reusable?

In most cases, they can be reused if they are not damaged and the sealing components remain intact.

Q4: How do I ensure a leak-proof connection?

Proper surface cleaning, correct alignment, and even tightening of bolts are essential for preventing leaks.

Conclusion

Quick saddle fittings provide a practical and efficient solution for creating branch connections in PVC piping systems. By selecting the right specifications, following proper installation procedures, and maintaining the fittings regularly, users can achieve reliable and long-lasting performance.

As a trusted manufacturer, Epoch offers high-quality quick saddle solutions designed to meet diverse application needs. Their products combine durability, ease of installation, and excellent sealing performance, making them a preferred choice in the pipeline industry.

For more detailed product information and customized solutions, please visit the official website. If you are looking to improve your pipeline efficiency and reduce installation time, contact us today to get professional support and tailored recommendations.
