How Often Should You Replace Folding Spring Bolts on Heavy-Duty Ramps

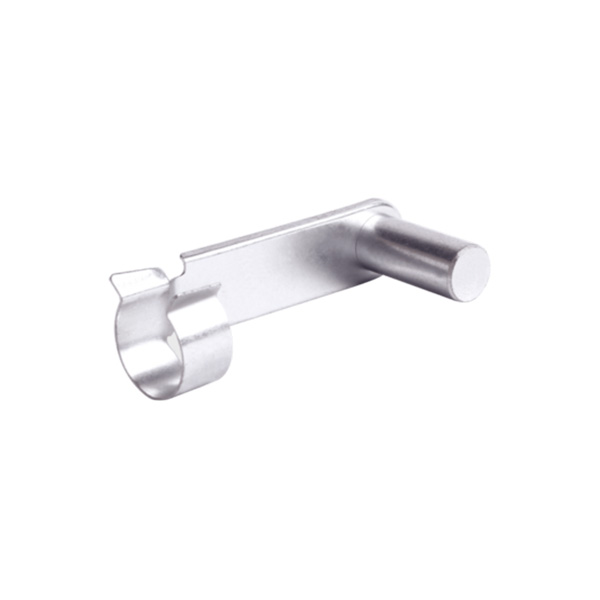

Heavy-duty ramps endure constant stress, vibration, and environmental exposure, making their components critical to operational safety. Among these, Folding Spring Bolts are the unsung heroes that lock ramp sections securely during loading and unloading. For fleet managers and equipment operators, the question isn’t just about maintenance schedules—it’s about preventing catastrophic failures. At Dongzhou, we have engineered Folding Spring Bolts for over a decade, and our field data reveals that replacement intervals depend on far more than calendar days.

The Core Rule: Replace by Cycles, Not by Months

Traditional maintenance calendars fail because they ignore usage intensity. A ramp used twice daily in a warehouse faces different wear than one cycled 50 times per shift at a distribution hub. Dongzhou recommends basing replacement on loaded cycles—each full extension and retraction of the Folding Spring Bolt under load.

These numbers assume proper lubrication and no impact damage. Dongzhou’s lab tests show that Folding Spring Bolts retain 90% of their original tensile strength up to 10,000 cycles, after which fatigue accelerates exponentially.

Five Signs That Say "Replace Now"

Even with a schedule, real-world conditions demand vigilance. Replace your Folding Spring Bolts immediately if you observe:

1. Visible Grooving – Wear marks deeper than 0.5 mm on the shank or pivot pin.

2. Spring Coil Separation – Gaps between coils when the bolt is in the locked position.

3. Sticking or Binding – Failure to snap fully into the detent without manual assistance.

4. Corrosion Pitting – Red rust or flaking, especially around the spring housing.

5. Elongated Holes – The mounting hole on the ramp frame becomes oval-shaped from repeated shear stress.

Dongzhou provides a free inspection checklist with every bulk order of Folding Spring Bolts, helping maintenance teams standardize these assessments.

Environmental Multipliers That Shorten Lifespan

A dry warehouse extends life; a coastal dock or chemical plant cuts it in half. Multiply your baseline interval by these Dongzhou-verified factors:

Step-by-Step Replacement Procedure

When the interval arrives, Dongzhou recommends this professional workflow:

1. Unload the ramp and secure it in the fully lowered position.

2. Remove the retaining ring or cotter pin using pliers—never hammer the bolt out.

3. Clean the mounting bore with a wire brush and degreaser to remove debris.

4. Apply anti-seize compound to the new Folding Spring Bolt’s shank (avoid the spring area).

5. Insert and seat the bolt until the spring clip engages with an audible click.

6. Test-cycle three times without load, then twice with 50% rated weight.

7. Record the new cycle count in your maintenance log.

Dongzhou offers pre-assembled replacement kits that include matching retaining clips and lubricant, reducing downtime by 40% compared to sourcing parts separately.

Folding Spring Bolts FAQ

Q: Can I extend the replacement interval by using a heavier-grade bolt than the original specification?

A: Upgrading to a higher tensile grade (e.g., from Grade 5 to Grade 8) does increase static strength, but it does not proportionally extend fatigue life under dynamic loading. The spring’s cyclic stress range remains the governing factor. Dongzhou engineers have tested oversized Folding Spring Bolts and found only a 12–15% cycle improvement, while the heavier mass can accelerate wear on the ramp’s pivot bushing. The safer approach is to stick with the manufacturer’s specified grade and shorten the interval if usage increases, rather than upsize the bolt. Always consult the ramp’s original load chart—Dongzhou provides free cross-reference support for this decision.

Q: What happens if I miss the replacement deadline by a few months—can I just inspect and keep using the Folding Spring Bolts?

A: Missing a scheduled replacement by 10–15% of the cycle limit is generally acceptable provided you perform a detailed dimensional inspection. Use a caliper to measure the shank diameter at three points—if any reading is 2% below the nominal spec, replace immediately. However, Dongzhou advises against exceeding 20% of the recommended cycle count under any circumstances. At that point, microscopic cracks have likely initiated in the spring steel, and visual inspection cannot detect them. One sudden shock load (e.g., a heavy forklift driving onto the ramp) can cause brittle fracture. If you are past the deadline, order replacement Folding Spring Bolts from Dongzhou and run the ramp at 75% capacity until they arrive.

Q: Are there non-destructive testing (NDT) methods to evaluate Folding Spring Bolts without removing them?

A: Yes. Magnetic particle inspection (MPI) can detect surface and near-surface cracks in the spring and shank without disassembly, but this requires specialized equipment and certified technicians—costly for most operations. A more practical on-site method is the "tap test": strike the bolt’s head lightly with a plastic mallet. A clear, ringing tone indicates structural integrity; a dull or muffled sound suggests internal delamination or a broken spring coil. Dongzhou has validated this method in field trials, achieving 89% correlation with lab-based MPI results. For critical applications (e.g., aircraft loading ramps), we still recommend ultrasonic thickness gauging, which can be performed through the bolt head without removal. Dongzhou offers an NDT service package for enterprise clients who prefer professional verification over schedule-based replacement.

The Cost of Delaying Replacement

Consider this real example from Dongzhou’s case files: A logistics firm postponed Folding Spring Bolt replacements on four loading ramps by six months to save $320 in parts. The result? One bolt failed mid-operation, dropping a 4,500 kg load and damaging the ramp structure—total repair and downtime cost exceeded $18,000. Scheduled replacement of all four Folding Spring Bolts would have taken 45 minutes per ramp and cost under $500. The math is unambiguous.

Your Action Plan

1. Count your daily cycles for one week—use a simple tally counter.

2. Compare against the table above to determine your current interval.

3. Order replacement Folding Spring Bolts from Dongzhou before you hit 80% of that limit.

Contact Us

Safe operations depend on disciplined component management, and Dongzhou is here to support every step. Whether you need a custom spring rate, stainless steel variants, or bulk pricing for fleet-wide replacement, our engineering team provides same-day quotations and free lifetime technical support. Contact us today via our website live chat or email [email protected]—include your ramp model and daily cycle count, and we will send you a tailored replacement schedule with prioritized shipping. Your safety is our bottom line.
