How Does a Yarn Suction Gun Affect the Tension Uniformity of POY During Doffing
2026-05-28
In the production of Partially Oriented Yarn (POY), tension uniformity during doffing is critical for downstream processing. An improperly used or poorly designed Yarn Suction Gun For POY can introduce micro-fluctuations in tension, leading to denier variation and broken filaments. At Yahua, precision-engineered suction guns are developed to address this exact challenge, ensuring stable tension from the moment doffing begins.
The Role of a Yarn Suction Gun in POY Doffing

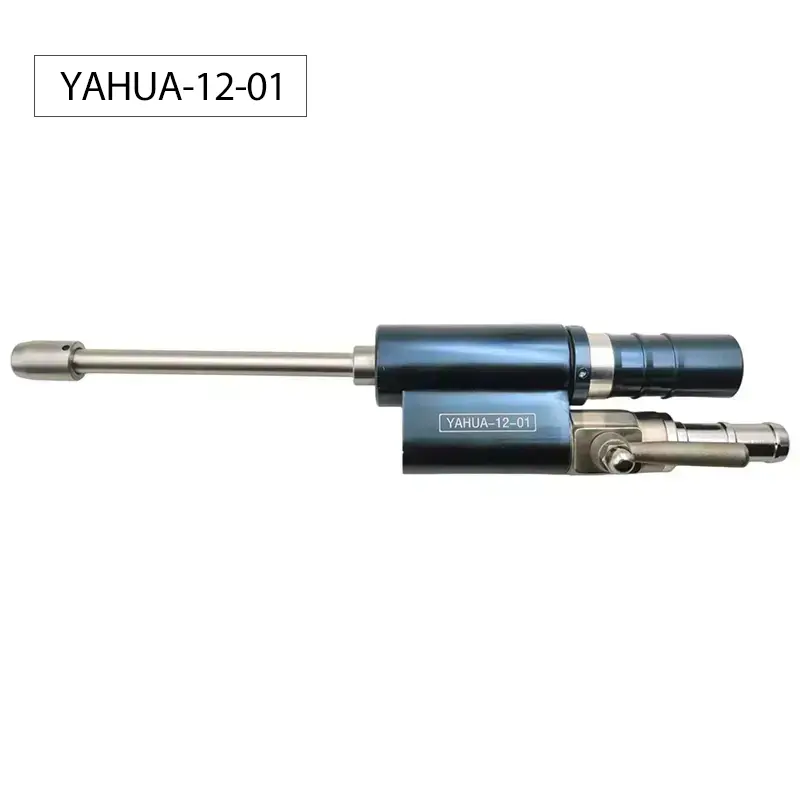

During doffing, the Yarn Suction Gun For POY temporarily pulls and stores yarn ends while a full bobbin is replaced. The gun’s suction force, nozzle geometry, and internal air flow pattern directly influence how evenly tension is applied across the yarn. Excessive suction creates sudden tension spikes; insufficient suction causes slack, resulting in tangles.
Key Factors Affecting Tension Uniformity
| Factor | Impact on Tension Uniformity | Yahua Solution |
|---|---|---|
| Air pressure stability | Fluctuating pressure causes uneven drag | Regulated inline valve with pressure gauge |
| Nozzle inner diameter | Too narrow increases friction; too wide loses control | Optimized 4.5mm ID for POY range |
| Internal air vent design | Turbulent flow creates tension vibration | Smooth venturi channel reduces turbulence |
| Filter cleanliness | Clogged filter reduces suction consistency | Quick-clean reusable mesh filter |
How Different Design Choices Change Tension Behavior
-
Straight nozzle vs. tapered nozzle: Tapered nozzles allow gradual yarn acceleration, reducing initial tension peaks by approximately 30% compared to straight designs.
-
Side inlet vs. axial inlet: Side inlet guns create asymmetric air flow, causing the yarn to whip inside the chamber – a primary source of tension oscillation. Yahua uses axial inlets with central yarn guides.
-
Body material: Metal bodies dissipate static better than plastic, preventing yarn cling that adds erratic tension.
Yarn Suction Gun For POY – FAQ Common Questions
Q1: Can a yarn suction gun permanently damage POY tension characteristics even after doffing is complete?
A: Yes. If the Yarn Suction Gun For POY applies uneven or excessive suction, it can stretch the amorphous regions of POY beyond elastic recovery. This results in permanent tension marks called "stretch bands" visible in subsequent drawing or texturing. Yahua guns are calibrated to maintain suction below 0.25 bar for fine denier POY (50–150D), ensuring the yarn remains within its elastic limit. Always match the gun’s operating pressure to the specific POY denier and winding speed.
Q2: How often should operators check the yarn suction gun to maintain tension uniformity during high-speed doffing cycles?
A: For continuous POY lines running above 4000 m/min, operators should inspect the Yarn Suction Gun For POY at least every eight hours. The key checkpoints are: (1) inlet nozzle wear – a worn oval opening increases tension variation by up to 15%; (2) air filter cleanliness – a 50% clogged filter reduces suction efficiency by 40%, causing inconsistent yarn pull; (3) internal yarn residue – accumulated polymer oligomers create friction points. Yahua supplies a visual wear indicator on the nozzle, and recommends a full cleaning every 500 doffing cycles.
Q3: What is the acceptable tension variation range when using a yarn suction gun for POY, and how can it be measured?
A: Acceptable peak-to-peak tension variation during suction gun operation is ±2 grams for standard POY (150D/48f) and ±1 gram for fine denier (50D/24f). Variation beyond this range indicates gun malfunction or incorrect air pressure. To measure, install an in-line tension sensor between the yarn guide and the suction gun inlet. Run the gun for five seconds and record the maximum and minimum values. Yahua testing shows that properly maintained Yarn Suction Gun For POY units achieve coefficient of variation (CV%) below 1.5% across 20 consecutive doffs. If CV exceeds 3%, replace the gun’s venturi block.
Best Practices for Maintaining Tension Uniformity with Yahua
-
Always pre-set air pressure using Yahua’s recommended pressure chart (available on each unit).
-
Replace nozzle inserts every 3000 doffs to avoid asymmetric wear.
-
Train operators to insert the yarn straight into the axial inlet – angled insertion creates off-axis drag.
Contact Us
Achieving perfect tension uniformity during POY doffing starts with the right equipment. Yahua provides technically validated Yarn Suction Gun For POY systems, complete with wear monitoring and application support. Contact us today for a customized recommendation based on your denier range, winding speed, and doffing frequency.
