How Does a Variable Spring Hanger Improve Pipeline Support Performance?

---

Article Summary:

A Variable Spring Hanger is an essential support component designed to manage vertical movement, thermal expansion, and load changes in industrial piping systems. This article explains how Variable Spring Hangers work, why they are important, and how they help engineers solve common pipeline support challenges. With advanced design concepts and reliable manufacturing experience, Yangzhou Tianshun Pipeline Technology Co., Ltd. provides professional pipeline support solutions for power plants, petrochemical facilities, chemical industries, and other industrial applications.

---

Table of Contents

• 1. What Is a Variable Spring Hanger?
• 2. How Does a Variable Spring Hanger Work?
• 3. Why Are Variable Spring Hangers Important for Industrial Pipelines?
• 4. Common Problems Solved by Variable Spring Hangers
• 5. Key Factors When Selecting a Variable Spring Hanger
• 6. Applications of Variable Spring Hangers
• 7. FAQ About Variable Spring Hangers

---

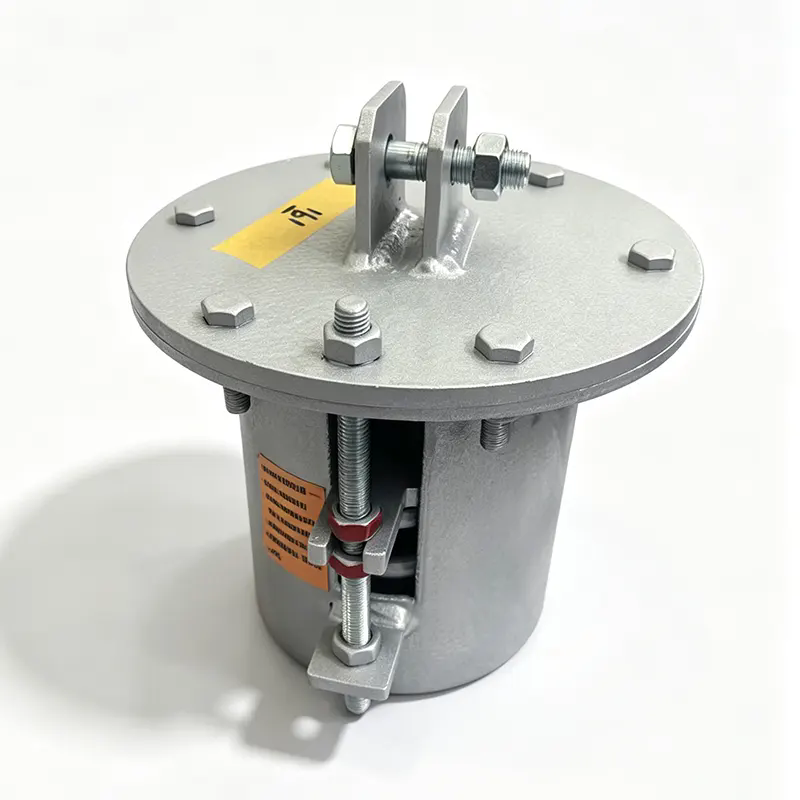

1. What Is a Variable Spring Hanger?

A Variable Spring Hanger is a specialized pipeline support device that uses a spring mechanism to absorb vertical displacement while maintaining controlled support for piping systems. Unlike rigid supports that restrict movement, this type of hanger allows pipelines to expand and contract naturally when temperatures change.

Industrial pipelines often experience significant thermal movement during operation. When high-temperature fluids pass through pipes, the pipeline expands. During shutdown periods, the temperature decreases and the pipeline contracts. Without proper support equipment, these movements may create excessive stress, deformation, vibration, or even structural damage.

The main purpose of a Variable Spring Hanger is to provide a flexible supporting force that changes according to the movement of the pipeline. It can carry the weight of the pipe while allowing a certain amount of vertical displacement.

Compared with conventional fixed supports, Variable Spring Hangers provide better flexibility and help maintain system stability. They are widely used in applications where pipeline movement cannot be avoided but must be carefully controlled.

---

2. How Does a Variable Spring Hanger Work?

The operating principle of a Variable Spring Hanger is based on mechanical spring force. Inside the hanger assembly, a carefully selected spring generates a supporting force that balances the weight of the connected pipeline.

When the pipeline moves vertically due to thermal expansion or contraction, the spring compresses or extends accordingly. The spring force changes with displacement, allowing the hanger to continuously support the pipeline throughout its operating cycle.

The basic working process includes several steps:

• Load Support: The spring carries the weight of the pipeline, insulation, valves, and related components.
• Movement Absorption: The spring mechanism allows controlled vertical movement caused by temperature variations.
• Stress Reduction: The flexible support minimizes additional forces transferred to equipment connections.
• System Protection: The hanger helps prevent pipeline deformation and improves long-term reliability.

A properly designed Variable Spring Hanger ensures that the pipeline remains supported while reducing unnecessary mechanical stress. This is especially important in large industrial systems where even small movements can influence equipment safety and operational efficiency.

---

3. Why Are Variable Spring Hangers Important for Industrial Pipelines?

Industrial pipeline systems are exposed to complicated operating conditions, including high temperatures, pressure fluctuations, vibration, and frequent start-stop cycles. Traditional rigid supports may not provide enough flexibility to handle these challenges.

A Variable Spring Hanger provides a practical solution by combining load-bearing capability with movement compensation. This balance helps engineers design safer and more durable piping systems.

The major advantages include:

• Reducing Pipeline Stress: Variable Spring Hangers prevent excessive forces from accumulating during thermal movement.
• Improving Equipment Protection: They reduce loads transferred to pumps, boilers, turbines, and other connected equipment.
• Increasing Service Life: Proper pipeline support decreases fatigue damage caused by repeated movement.
• Supporting Complex Designs: They are suitable for pipelines with large vertical displacement requirements.

For industries such as power generation, petroleum processing, and chemical manufacturing, reliable support systems are critical. A small failure in pipeline support can lead to expensive maintenance, production interruption, or safety risks.

Yangzhou Tianshun Pipeline Technology Co., Ltd. focuses on providing dependable pipeline support products designed according to industrial requirements. Through professional engineering solutions, the company helps customers improve pipeline stability and operational performance.

---

4. Common Problems Solved by Variable Spring Hangers

In industrial pipeline projects, many operational problems are related to improper support design. A pipeline may appear stable during installation, but temperature changes and continuous operation can create hidden mechanical stress. Variable Spring Hangers are designed to address these challenges and provide a more reliable support solution.

Below are several common pipeline problems that can be effectively reduced by using Variable Spring Hangers:

• Excessive Thermal Expansion Stress: When pipelines operate under high temperatures, thermal expansion creates movement. If the support system cannot absorb this displacement, stress may concentrate at elbows, joints, and equipment connections. Variable Spring Hangers allow controlled movement while maintaining proper support.
• Uneven Load Distribution: Pipeline weight is not always evenly distributed, especially when systems include heavy valves, instruments, or insulation layers. A Variable Spring Hanger helps maintain balanced support and prevents excessive loading on specific areas.
• Equipment Connection Damage: Connected equipment such as turbines, pumps, and pressure vessels usually has strict load limitations. Excessive pipeline movement may transfer unwanted forces to these components. Flexible spring support reduces this risk.
• Pipeline Vibration Issues: Industrial pipelines may experience vibration caused by fluid flow, machinery operation, or pressure changes. Proper support using Variable Spring Hangers can improve system stability and reduce vibration impact.
• Maintenance Difficulties: A poorly supported pipeline may require frequent inspection and repair. Reliable spring hanger systems help extend maintenance intervals and improve overall operating efficiency.

5. Key Factors When Selecting a Variable Spring Hanger

Choosing the correct Variable Spring Hanger requires careful consideration of pipeline conditions, operating requirements, and installation environment. An unsuitable support device may fail to provide the expected performance and could create additional engineering problems.

The following factors should be evaluated before selecting a suitable hanger:

• Pipeline Load: The total supported weight should include the pipe itself, fluid weight, insulation, valves, and other attached components.
• Vertical Displacement: Engineers need to calculate the expected upward or downward movement caused by thermal expansion and contraction.
• Operating Temperature: Temperature conditions directly influence pipeline expansion behavior and support requirements.
• Installation Space: The available installation area affects hanger configuration, size, and connection method.
• Environmental Conditions: Factors such as corrosion, humidity, and outdoor exposure should be considered when choosing materials and protective treatments.

A professional manufacturer can help customers select suitable products according to project requirements. Yangzhou Tianshun Pipeline Technology Co., Ltd. provides customized pipeline support solutions based on different industrial applications and engineering conditions.

Important Selection Considerations

• Confirm the required load capacity before installation.
• Calculate pipeline movement accurately to avoid insufficient travel range.
• Choose suitable materials according to working environments.
• Ensure installation follows engineering specifications.
• Perform regular inspections during operation.

Correct selection and installation are essential for achieving the maximum performance of a Variable Spring Hanger. A well-designed support system can significantly improve pipeline reliability and reduce unexpected operational problems.

6. Applications of Variable Spring Hangers

Variable Spring Hangers are widely used in industries where pipeline movement and load control are important. Their flexible support capability makes them suitable for many demanding operating environments.

Typical applications include:

• Power Generation Plants: Steam pipelines, boiler systems, and turbine connections often experience high-temperature expansion. Variable Spring Hangers help maintain stable support during operation.
• Petrochemical Facilities: Chemical processing pipelines require reliable support because they operate under complex temperature and pressure conditions.
• Oil and Gas Industries: Long-distance transmission pipelines need effective movement control to ensure safe and continuous operation.
• Refinery Systems: Processing equipment connections require accurate load management to prevent excessive stress.
• Industrial Manufacturing Facilities: Various production systems use pipelines that require flexible and durable support solutions.

Because of their adaptability, Variable Spring Hangers have become an important component in modern pipeline engineering. They provide a practical balance between flexibility and structural stability.

7. Advantages of Choosing Professional Variable Spring Hanger Solutions

A high-quality Variable Spring Hanger is not only a mechanical support device but also an important part of a complete pipeline safety strategy. Manufacturing accuracy, material quality, and engineering experience directly influence product performance.

Yangzhou Tianshun Pipeline Technology Co., Ltd. specializes in pipeline support equipment and provides solutions designed for industrial requirements. The company focuses on product reliability, engineering compatibility, and long-term operating performance.

Professional Variable Spring Hanger solutions can provide:

• Stable load support under different operating conditions.
• Reliable movement compensation for thermal expansion.
• Improved pipeline safety and service life.
• Reduced maintenance requirements.
• Better protection for connected industrial equipment.

For engineering projects requiring accurate pipeline support, selecting an experienced supplier can help reduce risks and improve system efficiency.

FAQ About Variable Spring Hangers

Q1: What is the main purpose of a Variable Spring Hanger?

A Variable Spring Hanger supports pipeline weight while allowing controlled vertical movement caused by thermal expansion and contraction. It helps reduce stress and protects pipeline systems from excessive mechanical forces.

Q2: What is the difference between a Variable Spring Hanger and a Constant Spring Hanger?

A Variable Spring Hanger changes its supporting force as the spring moves, while a Constant Spring Hanger is designed to maintain nearly the same supporting force throughout its travel range. The selection depends on pipeline movement requirements and engineering conditions.

Q3: Where are Variable Spring Hangers commonly installed?

They are commonly installed in power plants, petrochemical facilities, refineries, oil and gas systems, and other industrial pipeline projects where thermal movement needs to be controlled.

Q4: How can I choose the correct Variable Spring Hanger?

Selection should consider pipeline weight, operating temperature, displacement range, installation environment, and required load capacity. Professional technical support can help ensure the correct choice.

Q5: Why is pipeline support design important?

Proper pipeline support design prevents excessive stress, protects connected equipment, improves operational stability, and extends the service life of the entire piping system.

Conclusion

A Variable Spring Hanger plays a vital role in modern industrial pipeline systems by providing flexible support, absorbing thermal movement, and maintaining reliable load control. As industrial facilities continue to demand higher safety standards and operational efficiency, selecting suitable pipeline support equipment becomes increasingly important.

Through professional manufacturing capabilities and engineering experience, Yangzhou Tianshun Pipeline Technology Co., Ltd. delivers dependable Variable Spring Hanger solutions for different industrial applications. The right support system can help customers reduce pipeline stress, improve equipment protection, and achieve more stable long-term operation.

If you need reliable pipeline support products or customized Variable Spring Hanger solutions for your project, please contact us today. Our professional team is ready to provide suitable solutions according to your engineering requirements.
