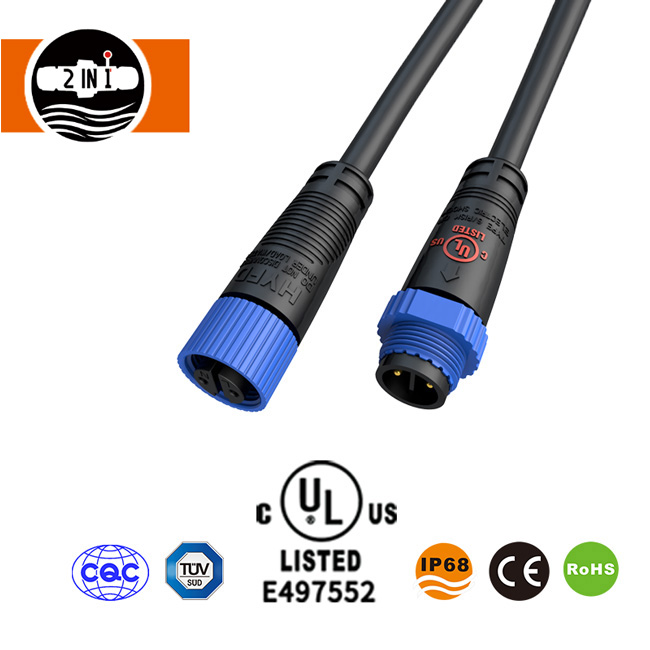

How Does a UL M15 Waterproof Male Female Connector Improve Outdoor Electrical Connections?

In outdoor electrical systems, a connector must do more than simply join two wires. It needs to maintain stable electrical performance while dealing with rain, moisture, dust, temperature changes, vibration, and repeated connection cycles. A UL M15 Waterproof Male Female Connector is designed around these practical requirements, combining a compact M15 connection structure with waterproof sealing and male-female mating. M15 waterproof connector solutions are commonly available in 2-pin and 3-pin configurations and are widely used in LED street lighting and outdoor lighting applications. For buyers looking for dependable cable connection solutions, ShenZhen 2 IN 1 Technology Co., Ltd. can provide connector products and customized cable assembly options for different application requirements.

What Is a UL M15 Waterproof Male Female Connector?

A UL M15 Waterproof Male Female Connector is an electrical connector designed to connect cables or electrical components while helping protect the connection point from water and environmental contamination.

The male and female components are designed to mate together securely, while the waterproof structure helps create a sealed connection. Depending on the product design, M15 connectors may use screw-locking structures, molded cable assemblies, or field-assembly configurations.

Typical product configurations can include:

• 2-pin and 3-pin connection options
• Male-to-female cable assemblies
• Straight connector designs
• F-type or distribution configurations
• Pre-molded cable solutions
• Customized cable lengths and wire specifications

Commercial M15 waterproof connectors on the market can offer IP67 or IP68 protection, depending on the specific construction and testing requirements.

Why Is Waterproof Protection Important?

Water and dust can create serious problems for outdoor electrical connections. Moisture entering an unprotected connection may contribute to corrosion, unstable electrical contact, insulation problems, or eventual system failure.

A properly designed waterproof connector helps create a barrier around the connection area. For outdoor lighting, landscape equipment, machinery, and other electrical systems, this protection can improve operational reliability and reduce the need for frequent maintenance.

The effectiveness of waterproof protection depends on the complete connector design, including:

1. Sealing components
2. Housing structure
3. Cable entry design
4. Contact arrangement
5. Locking mechanism
6. Material selection
7. Manufacturing quality

For this reason, buyers should evaluate the complete connector assembly rather than considering only the IP rating.

How Does the Connector Improve Electrical Connection Performance?

The role of an M15 connector is not limited to waterproofing. It also provides a practical interface between cables and electrical equipment.

Stable Electrical Contact

Quality contact terminals are important for maintaining a reliable electrical path. Some M15 products use brass contacts with surface plating to help improve conductivity and corrosion resistance.

Secure Connection

A locking structure can help prevent accidental separation caused by vibration, movement, or routine handling. This is particularly useful for outdoor lighting systems and equipment exposed to environmental movement.

Easier Installation

Pre-assembled male and female cables can reduce installation work because the connector and cable are supplied as an integrated solution. Depending on the design, field-assembly versions can also provide flexibility for installers.

Better Environmental Adaptability

M15 waterproof connectors are available with operating temperature ranges such as approximately -40°C to +105°C in some commercial product specifications. Actual performance should always be confirmed against the manufacturer's technical documentation.

Where Can UL M15 Waterproof Male Female Connectors Be Used?

The compact structure and environmental protection make M15 connectors suitable for a wide range of applications.

M15 waterproof connectors are particularly associated with LED street lighting and outdoor lighting systems, while other configurations can be adapted for machinery and electrical equipment.

Which Specifications Should Buyers Check?

Choosing a connector based only on its appearance can create compatibility problems. Purchasing teams should confirm the electrical, mechanical, environmental, and cable requirements before placing an order.

Important specifications include:

• Number of pins: 2-pin, 3-pin, or other required configurations
• Rated voltage: Confirm compatibility with the application
• Rated current: Match the expected electrical load
• Waterproof rating: Verify the required IP level
• Cable diameter: Ensure the cable fits the connector sealing structure
• Wire gauge: Match the cable cross-sectional area
• Operating temperature: Consider the installation environment
• Mating cycles: Important for frequently connected equipment
• Cable length: Customized lengths may simplify installation
• Certification: Confirm applicable UL or other market requirements

For example, published M15 connector specifications from different manufacturers show configurations ranging from 2-pin and 3-pin designs to different current, voltage, cable diameter, and IP-rating combinations. This demonstrates why specifications should be matched to the actual application instead of selecting a connector solely by model name.

What Makes Customized Connector Solutions Valuable?

Different projects often require different cable lengths, wire gauges, connector configurations, and termination methods. A standard connector may work for general applications, but customized cable assemblies can make installation more efficient.

ShenZhen 2 IN 1 Technology Co., Ltd. focuses on waterproof connector and cable solutions, providing options for applications that require different cable specifications and connection configurations.

For OEM and project-based buyers, customization may cover areas such as:

• Cable length
• Wire gauge
• Connector pin configuration
• Male/female combination
• Overmolded cable assembly
• Connector housing
• Cable material
• Packaging requirements

A customized solution can help buyers reduce unnecessary cable processing during installation and create a more consistent connection system across different equipment models.

How Can Buyers Select the Right M15 Connector?

A simple purchasing process can reduce compatibility risks:

Step 1: Define the application
Identify whether the connector will be used for street lighting, outdoor equipment, machinery, or another electrical system.

Step 2: Confirm electrical requirements
Determine the working voltage and current before selecting the connector.

Step 3: Check environmental conditions
Consider exposure to rain, humidity, dust, temperature changes, vibration, or other environmental factors.

Step 4: Confirm cable specifications
Check wire gauge, cable outer diameter, material, and required cable length.

Step 5: Verify certification requirements
For projects requiring UL-certified components, confirm that the specific connector and cable configuration meets the applicable certification requirements.

Step 6: Request samples when necessary
Sample testing can help buyers verify mechanical fit, connection performance, sealing, cable compatibility, and installation requirements before mass production.

Why Choose ShenZhen 2 IN 1 Technology Co., Ltd.?

For B2B buyers, the connector itself is only one part of the purchasing decision. Consistent manufacturing, customization capability, quality control, communication, and delivery support can also influence the overall project experience.

ShenZhen 2 IN 1 Technology Co., Ltd. provides waterproof connector solutions for customers seeking practical cable-to-cable connection products. Its M15 product range can support different male and female configurations and cable assembly requirements, helping customers develop solutions according to their application needs.

For outdoor lighting manufacturers, electrical equipment suppliers, project contractors, and OEM buyers, selecting the appropriate UL M15 Waterproof Male Female Connector can help establish a more secure and maintainable electrical connection system.

If you are looking for an M15 waterproof connector with specific pin numbers, cable length, wire gauge, waterproof requirements, or customized cable assembly, contact us at ShenZhen 2 IN 1 Technology Co., Ltd. to discuss your application requirements and find a suitable connector solution for your project.
