How Does a Torsional Shear Bolt Ensure Maximum Structural Safety?
2025-10-09

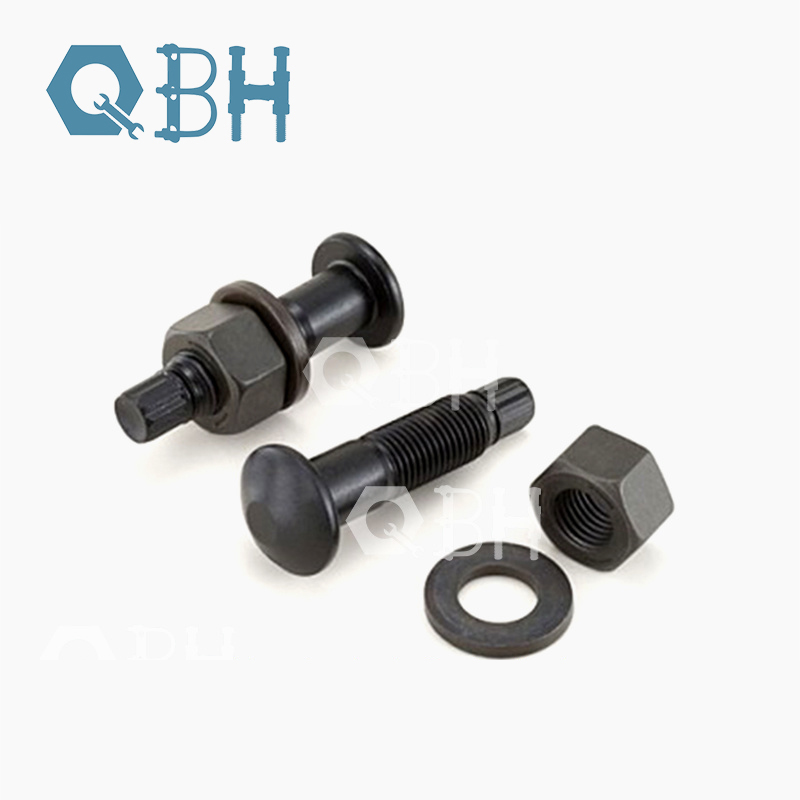

A Torsional Shear Bolt is a specialized type of fastener designed to achieve precise tension control during installation. Unlike conventional bolts, it uses a shear-off mechanism to guarantee the correct preload in the joint, providing an effective solution for structural applications where accuracy, consistency, and reliability are critical.
When the bolt is tightened, torque is applied until the control arm or the hex portion shears off at a predetermined torque level. This shearing point indicates that the bolt has reached its designed clamping force. As a result, installers no longer need torque wrenches or specialized calibration — the bolt itself acts as a built-in torque control system.
This unique working principle makes torsional shear bolts widely used in steel construction, bridge building, power transmission towers, wind turbines, and large-scale infrastructure projects. They provide not only the required strength but also speed up installation, reduce human error, and improve overall connection integrity.
The Mechanical Principle
-
Torque-to-tension conversion: The bolt converts rotational torque into axial clamping force.
-
Shear-off indicator: The hex tip breaks at the calibrated torque threshold, ensuring consistent tightening.
-
Friction stability: The lubricated threads minimize friction variation for uniform tension.
This combination ensures every joint performs as designed, offering structural engineers confidence that each connection meets specification — even without torque verification tools.
Why Torsional Shear Bolts Are Preferred in Modern Engineering
Torsional shear bolts (TSBs) have gained immense popularity across construction and energy sectors because they merge efficiency, safety, and precision. Traditional bolts require torque checks, experienced installers, and post-installation verification. Torsional shear bolts, on the other hand, eliminate guesswork.
Key Advantages
| Feature | Benefit | Explanation |
|---|---|---|
| Self-indicating shear-off head | Visual installation control | When the head snaps, proper tension is confirmed instantly |
| No torque wrench needed | Faster assembly | Reduces setup time and the need for torque testing |
| Corrosion-resistant coatings | Extended life cycle | Zinc, hot-dip galvanized, or Dacromet finishes protect against weather and chemicals |
| High tensile strength | Structural safety | Designed for demanding load-bearing connections |
| Consistent preload | Uniform joint performance | Prevents loosening due to vibration or fatigue |
| Cost-effective installation | Reduced labor cost | One-step tightening simplifies training and supervision |
Typical Applications
-
Steel Frame Construction – Used in high-rise buildings and industrial facilities.
-
Bridges & Infrastructure – Ensures joint reliability under heavy dynamic loads.
-
Wind Turbines – Provides vibration-resistant fastening for towers and nacelles.
-
Power Transmission Lines – Offers high-strength, weather-resistant joints.
-
Offshore Structures – Suitable for marine environments with corrosion protection coatings.
By removing the need for torque verification and ensuring reliable preload control, torsional shear bolts have become the industry standard for critical fastening where both safety and efficiency matter most.
What Are the Technical Parameters of a Torsional Shear Bolt?
A professional understanding of torsional shear bolt specifications helps engineers match the correct bolt to project requirements.
Typical Technical Specifications
| Parameter | Description | Standard Range |
|---|---|---|
| Diameter (D) | Bolt nominal diameter | M12, M16, M20, M22, M24, M27, M30 |
| Length (L) | Overall bolt length | 40mm – 300mm |
| Thread Pitch | ISO Metric thread | Coarse thread according to ISO 261 |
| Material Grade | Bolt strength | 8.8S / 10.9S grade carbon or alloy steel |
| Coating Options | Surface protection | Zinc plating, Hot-dip galvanizing, Dacromet, Geomet |
| Shear-off Torque (Nm) | Controlled torque for preload | 150Nm – 950Nm (varies by size) |
| Tensile Strength | Minimum guaranteed strength | 800 – 1040 MPa |
| Nut Type | Heavy hex nut (matched strength) | ASTM A563 or equivalent |
| Washer | Hardened washer | Provides even load distribution |
| Standards Compliance | Engineering conformity | EN 14399-10, JSS II-09, BS 4395, ISO 898-1 |
These parameters demonstrate how torsional shear bolts are designed for precision and strength. Engineers can specify bolt grades and coatings depending on environmental exposure, load demand, and safety requirements.
Manufacturing Quality
Reputable manufacturers apply non-destructive testing (NDT), dimensional inspection, and torque calibration during production. Each batch undergoes verification to ensure that the shear point occurs at the exact torque threshold. This testing process guarantees both mechanical reliability and repeatable performance across projects.
How to Install and Maintain a Torsional Shear Bolt Correctly
Proper installation is essential for the torsional shear bolt to perform as designed. The process is straightforward and doesn’t require complex tools, which is one of its greatest advantages.
Installation Steps
-
Align the components: Ensure the holes in both parts are clean and aligned.
-
Insert the bolt: Pass the bolt through the hole with the nut and washer properly placed.
-
Hand-tighten: Secure the nut until snug, ensuring correct alignment.
-
Apply torque using a standard shear wrench: Rotate until the control arm shears off.
-
Visual verification: The sheared-off head confirms proper installation — no need for torque re-checking.
Maintenance Guidelines
-
Regularly inspect joints for visible corrosion or surface damage.
-
Avoid reusing torsional shear bolts after installation — they are single-use fasteners.
-
Store bolts in dry, clean conditions to preserve protective coatings.
-
Use only certified torque shear wrenches to maintain proper shearing torque values.
When properly installed, these bolts require minimal maintenance, offering long-term durability and resistance against loosening even in high-vibration environments.
Frequently Asked Questions (FAQ)
Q1: How does a torsional shear bolt differ from a regular high-strength bolt?
A torsional shear bolt is pre-engineered with a break-off control arm that ensures the correct preload is automatically applied during tightening. A regular high-strength bolt requires manual torque measurement and calibration. The shear-type design makes installation faster, safer, and less dependent on operator experience.
Q2: How can I ensure the correct quality when purchasing torsional shear bolts?
Always verify that the bolts comply with recognized standards such as EN 14399-10 or ISO 898-1, and check for manufacturer certifications like ISO 9001. A reliable supplier will provide mill certificates, torque testing data, and surface coating reports. For high-demand projects, third-party inspection is also recommended to ensure compliance.
Conclusion – Partner with QBH for Reliable Torsional Shear Bolts
Torsional shear bolts have transformed the structural fastening industry through their self-tensioning precision, easy installation, and consistent preload performance. From bridges to power towers, they deliver unmatched reliability in demanding applications where safety cannot be compromised.
At QBH, we specialize in manufacturing high-quality torsional shear bolts engineered for durability, precision, and global standard compliance. Our products are available in multiple coatings, grades, and sizes to fit your specific engineering needs. Each bolt is rigorously tested to ensure optimal performance under real-world conditions.
If you’re looking for a dependable fastening solution for your next project, contact us today to learn more about our torsional shear bolt range or to request a custom quotation.
Your connection to quality and safety begins with QBH.
