How Does a Quick Saddle for PVC Pipes Work?
2026-05-22
Abstract: Quick saddles for PVC pipes have revolutionized the way pipelines are modified and extended. They provide a fast, reliable, and leak-proof method to create branch connections without dismantling existing pipelines. This article explores the design, advantages, installation procedures, and maintenance tips for quick saddles, helping professionals and DIY enthusiasts make informed decisions.
Table of Contents
- Introduction
- What is a Quick Saddle for PVC Pipes?
- Advantages of Using Quick Saddles
- Step-by-Step Installation Guide
- Tips for Choosing the Right Quick Saddle
- Maintenance and Troubleshooting
- FAQ
- Conclusion
Introduction
Modifying or extending a PVC pipeline traditionally involves cutting, gluing, or welding the pipes, which can be time-consuming and often requires shutting down the system. Quick saddles provide an innovative solution, allowing professionals to add branch lines efficiently and safely. Shandong Epoch Equipment Co., Ltd. specializes in high-quality quick saddles that meet industrial standards and ensure reliable pipeline performance.
What is a Quick Saddle for PVC Pipes?

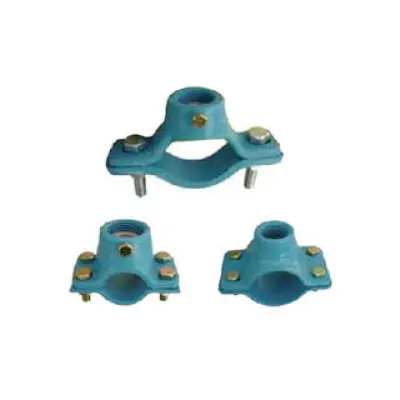

A quick saddle is a specialized fitting designed to attach a branch line to an existing PVC pipeline without extensive modifications. It typically consists of a saddle-shaped clamp and an integrated outlet connection that aligns perfectly with the main pipe. The fitting is secured using screws or bolts, creating a tight seal that prevents leaks.
Components of a Quick Saddle:
- Saddle Body: Curved section that fits around the existing PVC pipe.
- Outlet Port: Connection point for the branch pipe.
- Gasket: Provides a watertight seal between the saddle and the main pipe.
- Bolts/Screws: Secure the saddle to the pipe.
Advantages of Using Quick Saddles
Quick saddles offer numerous benefits for both residential and industrial applications:
| Benefit | Description |
|---|---|
| Time Efficiency | Installation is faster compared to traditional cutting and gluing methods. |
| Minimal Downtime | Branch connections can be added without shutting down the entire system. |
| Leak-Proof | High-quality gaskets and precise fitting ensure a reliable seal. |
| Cost-Effective | Reduces labor and material costs by eliminating pipe cutting and additional fittings. |
| Versatility | Available in various sizes to accommodate different PVC pipe diameters. |
Step-by-Step Installation Guide
Installing a quick saddle correctly ensures long-term reliability. Follow these steps:
- Preparation: Clean the surface of the main PVC pipe to remove dirt, grease, or debris.
- Positioning: Place the saddle on the desired location, aligning the outlet with the planned branch pipe.
- Securing: Tighten the bolts evenly to compress the gasket and create a tight seal.
- Branch Connection: Attach the branch PVC pipe to the saddle outlet using standard PVC adhesive or mechanical fittings as required.
- Testing: Turn on the system and check for leaks at the connection point.
Pro Tip: Use a torque wrench to ensure consistent bolt tightness, avoiding pipe deformation or leaks.
Tips for Choosing the Right Quick Saddle
Choosing the correct quick saddle is crucial for performance and durability:
- Pipe Size Compatibility: Ensure the saddle matches the main pipe diameter for a proper seal.
- Material Quality: Opt for high-quality PVC or reinforced materials to withstand pressure and environmental conditions.
- Gasket Type: Select a gasket suitable for the fluid type and temperature range.
- Pressure Rating: Verify the saddle’s maximum pressure rating to match your system requirements.
- Manufacturer Reliability: Shandong Epoch Equipment Co., Ltd. provides certified quick saddles with consistent quality.
Maintenance and Troubleshooting
Regular maintenance ensures the longevity of your quick saddle connections:
- Visual Inspection: Periodically check for cracks, leaks, or loose bolts.
- Cleaning: Remove any debris or sediment around the connection to prevent gasket deterioration.
- Leak Repair: Tighten bolts or replace the gasket if minor leaks are detected.
- Replacement: If the saddle is damaged or deformed, replace it immediately to avoid system failure.
FAQ
Q1: Can I install a quick saddle on a pressurized PVC pipe?
A1: Yes, but ensure the system pressure does not exceed the saddle’s rated capacity. Always follow manufacturer guidelines.
Q2: Do quick saddles require specialized tools?
A2: Standard hand tools like screwdrivers and wrenches are typically sufficient. Torque wrenches are recommended for consistent installation.
Q3: Are quick saddles reusable?
A3: Some designs allow for temporary removal and reuse, but repeated use may compromise the gasket seal. It is safer to use a new saddle for critical connections.
Q4: How do I ensure a leak-proof installation?
A4: Clean the pipe surface thoroughly, align the saddle correctly, and tighten bolts evenly. Testing under low pressure before full operation is recommended.
Conclusion
Quick saddles for PVC pipes simplify pipeline modifications and provide a reliable, leak-proof solution for creating branch connections. With proper installation, maintenance, and selection, they can significantly reduce downtime and labor costs. Shandong Epoch Equipment Co., Ltd. offers high-quality quick saddles that meet rigorous industrial standards. Explore our products and contact us to find the perfect solution for your pipeline needs.
