How Does a Dismating Joint Improve Pipeline Maintenance?
2026-02-04
Summary: Dismating joints are essential components in industrial piping systems, allowing quick disassembly, maintenance, and inspection without cutting or welding. This article explores their design, applications, benefits, and technical specifications, helping engineers and facility managers optimize pipeline operations.
Table of Contents
- Introduction to Dismating Joints
- Structure and Working Principle
- Common Applications
- Key Advantages
- Technical Specifications
- Installation Guidelines
- Maintenance and Troubleshooting
- Frequently Asked Questions
- Conclusion & Contact
Introduction to Dismating Joints
A dismantling joint, also referred to as a dismating joint, is a mechanical component used to connect two flanged sections of piping with a central adjustable sleeve. Unlike rigid connections, it allows easy separation for maintenance, inspection, or installation of new equipment. These joints are widely used in water supply, wastewater treatment, and industrial piping systems where flexibility and accessibility are critical.
Structure and Working Principle

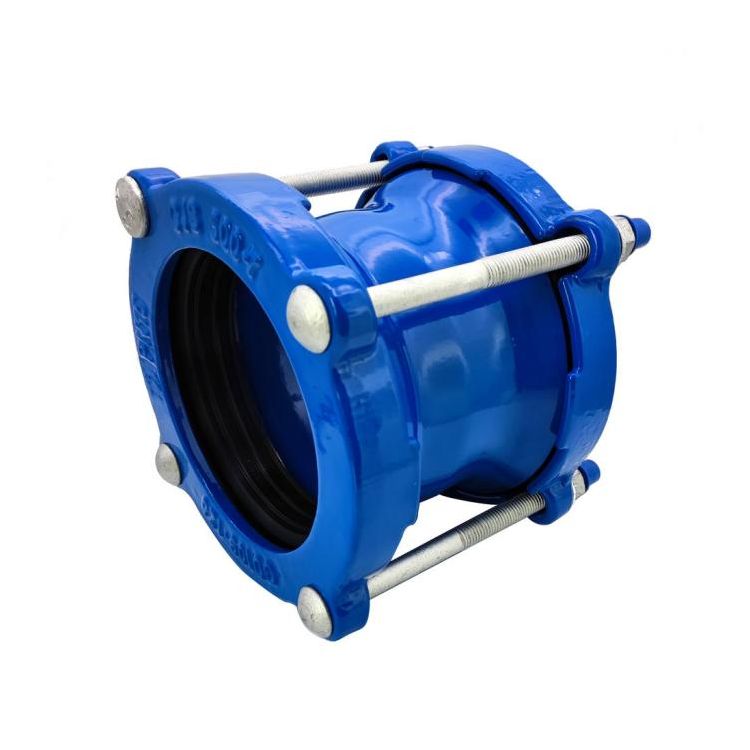

The typical dismantling joint consists of three main parts:
- Flanged Ends: Bolted to the pipeline, ensuring secure attachment and leak-proof performance.
- Adjustable Sleeve: Positioned between flanges, allowing axial adjustment to accommodate misalignments or expansion.
- Bolts and Nuts: Enable secure fastening and quick disassembly when needed.
When maintenance is required, the bolts can be removed, and the flanges separated without cutting the pipeline. This minimizes downtime and reduces labor costs.
Common Applications
Dismating joints are designed for versatile use in various industries:
- Water and Wastewater Systems: Facilitate quick repair or replacement of pumps, valves, and pipe sections.
- Industrial Piping: Enable installation of heavy equipment, testing, and inspection without pipeline modifications.
- HVAC and Fire Protection Systems: Simplify alignment and connection of large-diameter pipes.
- Temporary Installations: Ideal for projects requiring periodic assembly and disassembly.
Key Advantages
- Ease of Maintenance: Quick separation reduces downtime.
- Alignment Flexibility: Adjustable sleeves compensate for minor misalignments.
- Cost Efficiency: Eliminates the need for cutting, welding, or specialized tools.
- Durable and Reliable: Manufactured with high-quality steel or ductile iron to ensure long-term performance.
- Leak Prevention: Precision flanges and gaskets provide secure, watertight connections.
Technical Specifications
| Parameter | Description |
|---|---|
| Material | Ductile Iron, Stainless Steel, Carbon Steel |
| Flange Standard | ANSI, DIN, JIS |
| Pressure Rating | PN10 – PN25 / 150 – 300 PSI |
| Temperature Range | -20°C to 120°C |
| Size Range | DN50 – DN1200 (2" – 48") |
| Coating | Epoxy, Zinc, or Hot-Dip Galvanized |
Installation Guidelines
- Ensure the pipeline flanges are clean and aligned.
- Insert the adjustable sleeve between flanged ends.
- Install bolts and tighten gradually in a crisscross pattern to ensure even compression.
- Check alignment and adjust the sleeve as necessary before final tightening.
- Perform pressure testing to verify leak-proof installation.
Maintenance and Troubleshooting
- Regularly inspect bolts for corrosion or loosening.
- Replace gaskets periodically to maintain sealing performance.
- Check sleeve and flange surfaces for wear or deformation.
- If leakage occurs, retighten bolts gradually or replace the gasket if necessary.
- Keep spare bolts and gaskets available for quick maintenance operations.
Frequently Asked Questions
-
Q: Can a dismantling joint handle high-pressure pipelines?
A: Yes, joints are rated for pressures up to 25 bar or 300 PSI depending on material and flange standard. -
Q: Are dismantling joints compatible with all flange standards?
A: They are available for ANSI, DIN, and JIS standards, but correct specification is crucial. -
Q: How long does installation usually take?
A: Installation time is significantly shorter than welding or cutting, typically 30–60 minutes for standard sizes. -
Q: Can dismantling joints be reused after disassembly?
A: Yes, with proper handling and maintenance, joints can be reused multiple times.
Conclusion & Contact
Dismating joints provide an efficient, reliable solution for pipeline maintenance, equipment installation, and system flexibility. Their adjustable design, quick disassembly, and robust performance make them essential in modern industrial piping.
