A constant spring hanger is a critical supporting component used in industrial piping systems, power plants, petrochemical facilities, and mechanical installations where thermal expansion and vertical movement must be controlled. This article explains how a Constant Spring Hanger works, why it is important, how it solves common engineering challenges, and what factors should be considered when selecting the right solution.
With increasing demands for safe, reliable, and long-lasting industrial infrastructure, choosing the correct pipe support system has become essential. Tianshun provides professional Constant Spring Hanger solutions designed to maintain stable load support, reduce stress concentration, and improve the operational reliability of complex piping networks.

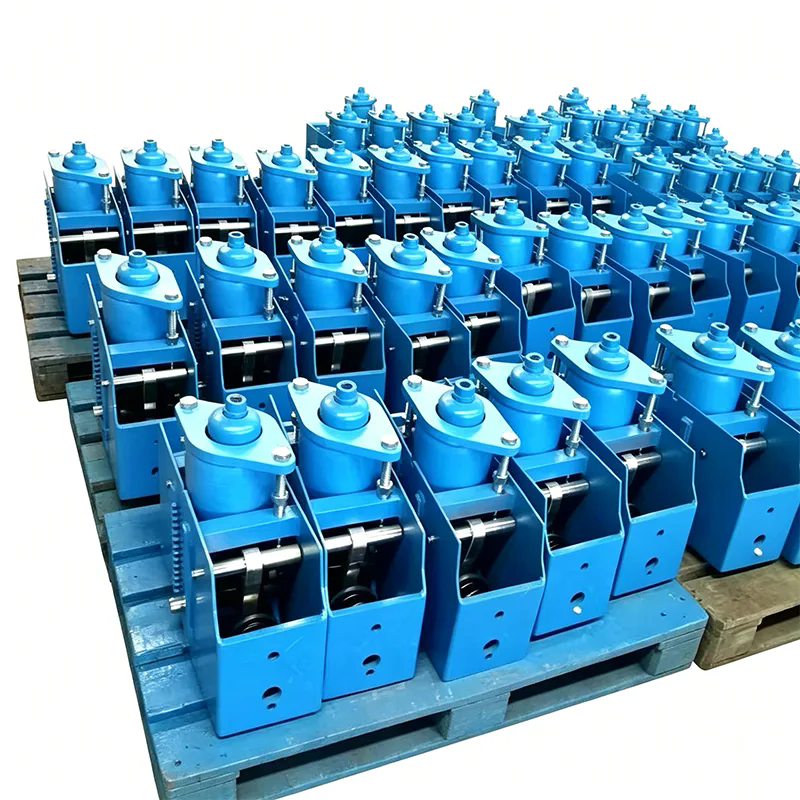

A Constant Spring Hanger is a mechanical pipe support device designed to provide continuous and nearly constant supporting force while allowing vertical movement of connected piping. It is commonly installed in systems where pipes experience significant thermal expansion or contraction during operation.
Unlike rigid supports that restrict movement, a Constant Spring Hanger allows the pipeline to move vertically while maintaining the required load-bearing capacity. This feature helps prevent excessive stress on pipes, valves, equipment connections, and structural components.
In high-temperature industrial environments, pipelines expand when heated and contract when cooled. Without proper support, this movement can create additional loads that may result in deformation, vibration, leakage, or equipment damage. A properly designed Constant Spring Hanger provides controlled flexibility to protect the entire system.
| Component | Function |
|---|---|
| Spring Assembly | Provides continuous supporting force during vertical movement. |
| Load Adjustment Mechanism | Ensures accurate support according to pipeline requirements. |
| Housing Structure | Protects internal components and improves durability. |
| Connection Parts | Allows secure installation with piping structures. |
The working principle of a Constant Spring Hanger is based on mechanical balance between spring force and pipeline load. The internal spring mechanism is designed to provide a constant supporting force throughout the entire movement range.
When a pipeline expands vertically due to temperature changes, the hanger moves with the pipe while maintaining the same supporting force. This constant load capability prevents sudden changes in stress distribution.
This operating method makes Constant Spring Hangers especially suitable for critical systems where load variation must be minimized.
Industrial piping systems often face challenges caused by temperature changes, heavy equipment loads, and continuous operation. A suitable support solution can significantly improve reliability.
| Common Challenge | Impact on System | Constant Spring Hanger Solution |
|---|---|---|
| Thermal Expansion | Creates movement and stress in pipelines. | Allows controlled vertical movement while maintaining support. |
| Uneven Load Distribution | Causes excessive stress on certain areas. | Provides stable supporting force. |
| Equipment Connection Stress | May damage valves and connected machinery. | Reduces transferred loads. |
| Pipeline Vibration | Affects operational safety. | Improves overall system stability. |
For industries operating under extreme temperatures and demanding conditions, selecting the correct support system is not only an engineering decision but also a long-term safety investment.
Constant Spring Hangers offer several advantages compared with conventional fixed supports. Their ability to maintain consistent load support makes them valuable in complex industrial applications.
Tianshun focuses on providing dependable Constant Spring Hanger solutions that meet industrial requirements for strength, accuracy, and operational stability.
Choosing the correct Constant Spring Hanger requires careful consideration of operating conditions, pipeline design, and installation requirements.
| Selection Factor | Important Consideration |
|---|---|
| Load Capacity | Select a model that matches the actual pipe weight and operating load. |
| Movement Range | Ensure the hanger can handle expected vertical displacement. |
| Operating Temperature | Choose materials suitable for working environments. |
| Installation Space | Consider available structural conditions. |
| Quality Requirements | Confirm manufacturing precision and reliability. |
Engineers should also evaluate project standards, maintenance requirements, and future operating conditions before making a final decision.
Constant Spring Hangers are widely used in industries where pipelines experience thermal movement and heavy loads.
In these applications, reliable pipe support helps improve safety, reduce downtime, and extend the service life of expensive industrial equipment.
| Feature | Constant Spring Hanger | Variable Spring Hanger |
|---|---|---|
| Load Variation | Maintains nearly constant load. | Load changes during movement. |
| Application | Suitable for critical piping systems. | Suitable for systems with limited movement requirements. |
| Stress Control | Provides better stress management. | May create higher load variation. |
| Design Requirement | Used where precise support is needed. | Used for general applications. |
Although Constant Spring Hangers are designed for durability, regular inspection helps maintain safe and efficient operation.
Proper maintenance can reduce unexpected failures and ensure the support system continues protecting the pipeline effectively.
Q1: Why is a Constant Spring Hanger used in piping systems?
A Constant Spring Hanger is used to support pipelines while allowing vertical movement caused by thermal expansion and contraction. It helps reduce stress and protect connected equipment.
Q2: What makes a Constant Spring Hanger different from a normal pipe support?
The main difference is that a Constant Spring Hanger maintains a nearly constant supporting force throughout the movement range, while ordinary supports may restrict movement or create uneven loads.
Q3: Where are Constant Spring Hangers commonly installed?
They are commonly used in power plants, petrochemical facilities, steam systems, and other industrial environments with large temperature variations.
Q4: How can I choose a suitable Constant Spring Hanger?
Selection depends on factors such as pipe weight, movement range, temperature conditions, installation environment, and engineering requirements.
Q5: Why choose Tianshun Constant Spring Hanger solutions?
Tianshun provides professionally designed support solutions focused on reliability, accurate load control, and long-term industrial performance.
A Constant Spring Hanger plays an essential role in maintaining the safety and efficiency of modern industrial piping systems. By providing stable support while allowing controlled movement, it helps reduce stress, prevent damage, and improve operational reliability.
For industries requiring dependable pipe support solutions, Tianshun delivers high-quality Constant Spring Hanger products designed to meet demanding application requirements. If you need professional support selection or customized solutions, please contact us today for more information and expert assistance.
