How Does a CNC Tool Holder Affect Tool Life and Surface Finish
2026-01-04

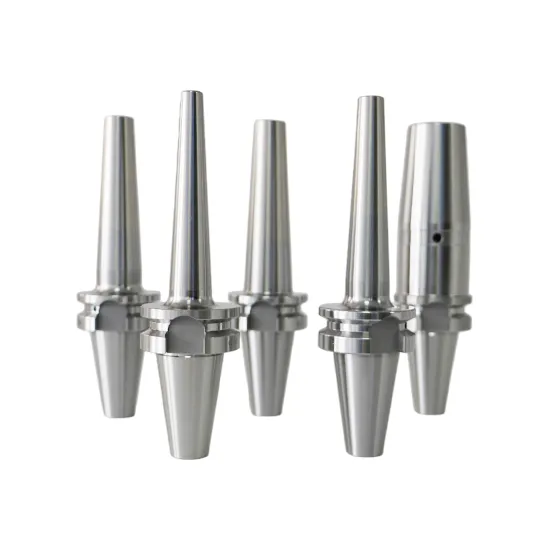

In the precision-driven world of CNC machining, every component plays a pivotal role. While cutting tools often get the spotlight, the CNC Tool Holder is the critical, unsung hero connecting the spindle to the tool. Its performance directly dictates your machining economics and part quality. The right CNC Tool Holder from a trusted manufacturer like WDF is not just an accessory; it's an investment in achieving superior surface finish and maximizing tool life.
The connection is fundamental: the tool holder is the direct conduit of power and motion. Any imperfection in this link—be it runout, imbalance, or insufficient grip—translates into vibration, chatter, and deflection at the cutting edge.
-
Impact on Tool Life: Excessive vibration accelerates tool wear through chipping, fracturing, and premature flank wear. A holder with high concentricity, like WDF's precision-balanced designs, ensures the tool rotates perfectly on-axis, distributing wear evenly and predictably.
-
Impact on Surface Finish: Chatter and deflection cause poor dimensional accuracy and visible marks on the workpiece. A rigid, well-clamped tool eliminates these vibrations, enabling smooth cutting action that produces mirror-like finishes and tight tolerations.
The following table contrasts the effects of a low-quality holder versus a high-precision WDF holder:
| Factor | Low-Quality Tool Holder | High-Precision WDF Tool Holder |
|---|---|---|
| Tool Runout | High (> 0.003") | Very Low (< 0.0002") |
| Grip Force | Inconsistent, may slip | Exceptional and uniform (e.g., thermal shrink fit) |
| Dynamic Balance | Unbalanced at high RPM | Professionally balanced for high-speed operation |
| Result on Tool Life | Shortened, unpredictable wear | Extended, consistent wear patterns |
| Result on Surface Finish | Chatter marks, poor accuracy | Excellent finish, tight tolerances held |
CNC Tool Holders FAQ
Q: What is the most important factor in a tool holder for finish machining?
A: For finish machining, minimal runout is paramount. Even tiny deviations are magnified at the cutting edge, causing inconsistent chip load and poor surface finish. WDF holders are engineered for sub-micron runout to ensure flawless part quality.
Q: Can a tool holder really prevent chatter?
A: Absolutely. Chatter is often caused by a lack of system rigidity and dynamic instability. A high-quality, balanced holder like those from WDF dramatically increases the damping capacity and stiffness of the tool assembly, moving the process out of chatter-prone zones.
Q: How often should I check and maintain my CNC tool holders?
A: Regularly. Inspect the taper and clamping mechanism for dirt, nicks, or corrosion before each use. Implement a periodic schedule (e.g., monthly) for professional cleaning and runout verification. Proper maintenance is key to preserving the performance built into your WDF CNC Tool Holders.
Choosing the correct CNC Tool Holder is a decisive step toward peak productivity and part perfection. It’s the foundation upon which machining excellence is built. Don't let a weak link compromise your process or your profits.
Contact us today at WDF to discuss your application. Our technical experts will help you select the ideal tool holder to extend your tool life, enhance your surface finish, and optimize your entire machining operation.
