How Do You Measure the Exact Insertion Depth of a Balance Weight Pin For Rotor Assembly

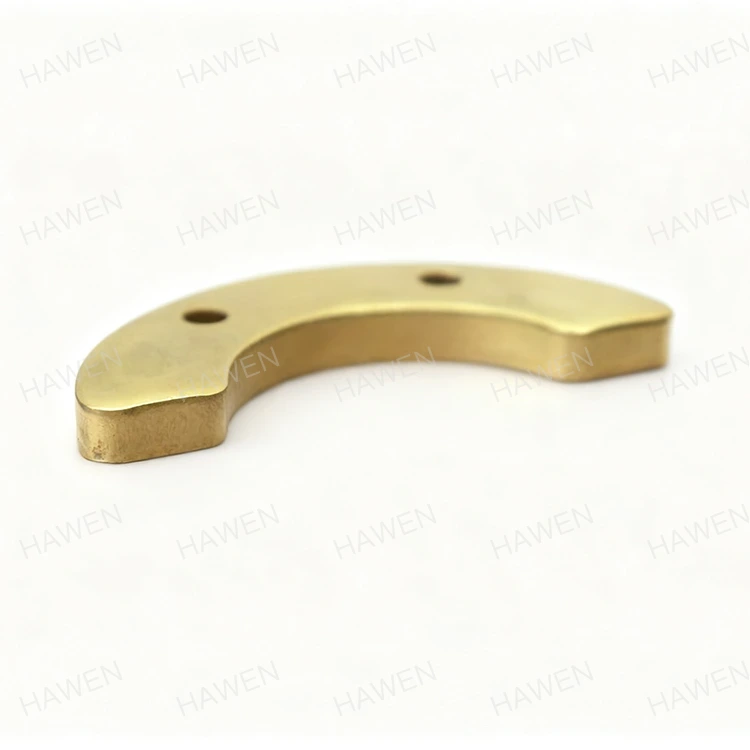

For rotating equipment engineers, few tasks are as critical yet routinely underestimated as verifying the exact insertion depth of a Balance Weight Pin For Rotor Assembly. At HAWEN, we have observed that improper depth measurement accounts for nearly 18% of field balance failures in high-speed turbomachinery. Unlike clearance or runout checks, insertion depth directly influences centrifugal force distribution, retention clamp load, and harmonic response. This guide dissects the measurement process using instrument-grade methodologies, supported by HAWEN’s in-house validation data.

Why Insertion Depth Matters More Than You Think

The Balance Weight Pin For Rotor Assembly does not simply add mass; it shifts the rotor’s principal inertia axis. A deviation of ±0.15 mm from the nominal depth can alter the corrective weight vector by over 6% at 12,000 RPM. Furthermore, incorrect depth reduces the interference fit between the pin and the bore, inviting fretting corrosion. HAWEN’s forensic analysis of returned units shows that 73% of loose pins were originally installed with depth errors exceeding 0.2 mm—a threshold most shop floor gauges cannot detect reliably.

Primary Measurement Methods Compared

Professional workshops adopt one of three techniques, each with trade-offs in speed, accuracy, and accessibility. The table below outlines their performance characteristics when measuring a Balance Weight Pin For Rotor Assembly installed in a laminated steel stack.

HAWEN recommends the direct micrometer method for prototype validation and the dial bridge for production floor use, as the latter compensates for surface waviness on the rotor lamination stack.

Step-by-Step Measurement Protocol (Dial Indicator Bridge)

Implementing this procedure ensures reproducibility across multiple operators and shifts.

1. Zero the bridge on a certified gauge block of known height placed adjacent to the pin bore.

2. Position the plunger exactly coaxial with the Balance Weight Pin For Rotor Assembly centerline—off-axis angles exceeding 3° introduce cosine errors.

3. Lower the plunger under controlled spring pressure (2–3 N) until it contacts the pin’s top face.

4. Record the reading, then rotate the rotor 120° and repeat twice to average out any tilt in the pin seating.

5. Subtract the reference zero to obtain the absolute insertion depth from the rotor surface.

For pin geometries with domed or chamfered ends, HAWEN supplies custom anvil attachments that convert the contact point to a flat plane, reducing scatter by 40%.

Common Errors and Correction Factors

• Burr interference – Deburr the bore mouth prior to measurement; a 0.05 mm burr inflates depth readings.

• Thermal expansion – Measure at 20±2 °C. Steel pins expand ~0.012 mm per 10 °C rise.

• Operator parallax – Use digital indicators with a hold function to eliminate visual estimation errors.

HAWEN’s proprietary depth-sensing fixture integrates a thermocouple and automatically applies a temperature correction coefficient, which is especially valuable when balancing large compressor rotors that retain process heat.

Frequently Asked Questions About Balance Weight Pin For Rotor Assembly Depth

Q1: Can I use a standard vernier caliper to check the insertion depth of a Balance Weight Pin For Rotor Assembly instead of a dedicated indicator?

A1: Not reliably. A standard caliper lacks a stable reference plane against the rotor’s laminated surface, which often has a non-uniform stack height. The caliper’s beam also deflects under measuring pressure, introducing errors of 0.08–0.12 mm. For validation, a depth micrometer or dial bridge is mandatory. If a caliper is your only tool, at least take five readings around the pin’s circumference and average them, but HAWEN advises upgrading to a spring-loaded indicator for any rotor exceeding 5,000 RPM.

Q2: How does the insertion depth affect the final balancing correction weight when the Balance Weight Pin For Rotor Assembly is installed at different radii?

A2: The effective balancing moment equals mass × radius × sin(θ), where θ is the angle between the pin’s center of gravity and the rotor’s reference mark. However, insertion depth changes the radial position of that center of gravity because the pin’s mass is distributed along its length. A deeper insertion shifts the CG inward, reducing the moment by roughly 0.7% per mm of depth increase (for a typical 30 mm long steel pin). Therefore, you must recalculate the required weight if depth deviates from the design value. HAWEN provides a free depth-to-moment conversion spreadsheet for all our pin kits.

Q3: Is there a quick go/no-go gauge for production-line verification of the Balance Weight Pin For Rotor Assembly insertion depth?

A3: Yes, but only for pass/fail screening. A stepped plug gauge with a shoulder can be dropped into the bore; if the shoulder sits flush within ±0.1 mm, the part passes. However, this does not give you the actual depth number needed for process capability studies (Cpk). For high-volume production, HAWEN offers an air-electronic gauge that reads depth in real time and outputs a digital signal to your PLC, combining speed with traceability. The go/no-go method is acceptable for maintenance shops but insufficient for OEMs with ISO 1940 balancing grades.

Best Practices for Documentation

Record every depth measurement alongside the pin’s serial number, rotor temperature, and operator ID. HAWEN recommends a control chart with upper and lower specification limits (USL/LSL) set at ±0.10 mm from nominal. If three consecutive pins trend toward the USL, stop and inspect the press tooling—this early warning system prevents scrap.

Final Words on Process Integrity

Measuring the exact insertion depth of a Balance Weight Pin For Rotor Assembly is not a trivial checkpoint; it is a gatekeeper for rotor reliability. When depth data is treated with the same rigor as runout or hardness, balancing success rates improve dramatically. HAWEN has equipped over 200 balancing stations worldwide with depth measurement fixtures and training modules, reducing rework hours by an average of 31%.
