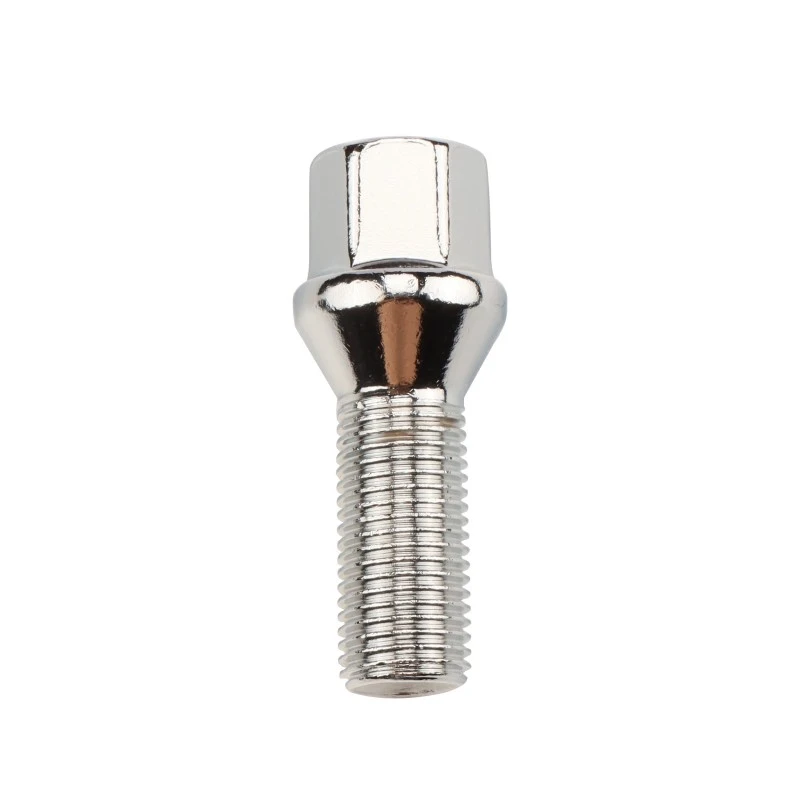

How Do You Measure the Correct Length for M12x1.5 Conical Seat Wheel Lug Bolts
2026-09-15
Getting the length right on M12x1.5 Conical Seat Wheel Lug Bolts is one of the most overlooked steps in wheel installation, yet it directly affects safety, thread engagement, and wheel fitment. At J&W, we have seen far too many customers order bolts by guessing rather than measuring. This guide walks you through the professional method for determining the correct length, so you can install your wheels with confidence and avoid costly mistakes.
Why Bolt Length Matters More Than You Think
M12x1.5 Conical Seat Wheel Lug Bolts must achieve proper thread engagement inside the hub. Too short, and the bolt may strip or fail under load. Too long, and the bolt can protrude into the brake assembly or bottom out before clamping the wheel. Both scenarios create serious safety risks.
The Key Measurements You Need
Before selecting a bolt, gather these three measurements:
-
Thread size: M12 x 1.5 (12 mm diameter, 1.5 mm pitch)
-
Seat type: Conical (60-degree tapered seat)
-
Usable thread length: The distance from the base of the seat to the end of the threads
The usable thread length is the number you are solving for.
Step-by-Step Measurement Process
-
Remove the wheel and clean the hub face and bolt holes.
-
Measure the hub thickness where the bolt passes through.
-
Measure the wheel mounting pad thickness at the bolt hole.
-
Add the two figures together to get the total clamping depth.
-
Add the required thread engagement, which for M12 bolts is typically 6.5 to 8 full turns, or roughly 10 to 12 mm of thread inside the hub.
-
Subtract any spacer thickness if spacers are used, or add it if the spacer sits between the wheel and hub.
The formula looks like this:
| Component | Measurement |
|---|---|
| Hub thickness | A |
| Wheel pad thickness | B |
| Required thread engagement | C (10–12 mm) |
| Spacer thickness (if any) | D |
| Correct bolt length | A + B + C + D |
Thread Engagement Reference Table
| Bolt Size | Minimum Thread Engagement | Recommended Turns |
|---|---|---|
| M12 x 1.5 | 10 mm | 6.5–8 turns |
| M12 x 1.25 | 10 mm | 8–10 turns |
| M14 x 1.5 | 12 mm | 8–10 turns |
For M12x1.5 Conical Seat Wheel Lug Bolts, always aim for at least 10 mm of thread engagement. Less than that increases the risk of pull-out.
Common Measurement Mistakes
-
Measuring the overall bolt length instead of usable thread length
-
Forgetting to account for aftermarket wheel pad thickness
-
Mixing conical seat bolts with ball seat wheels
-
Reusing stretched or damaged bolts
At J&W, every M12x1.5 Conical Seat Wheel Lug Bolt is manufactured to precise tolerances, so the length you order matches the length you receive.
FAQ
Q: What happens if my M12x1.5 Conical Seat Wheel Lug Bolts are too long?
A: If the bolts are too long, they can protrude through the hub and contact brake components, or they may bottom out before the wheel is fully clamped. This prevents proper torque from being applied and can cause the wheel to loosen. Always verify clearance behind the hub before installation.
Q: Can I use washers to adjust the length of M12x1.5 Conical Seat Wheel Lug Bolts?
A: No. Washers are not designed for conical seat bolts and will alter the seat geometry. Using washers reduces thread engagement and creates an uneven load path. If your bolts are the wrong length, order the correct size from J&W instead of improvising.
Q: How do I know if my M12x1.5 Conical Seat Wheel Lug Bolts have enough thread engagement?
A: Count the full turns required to tighten the bolt by hand before final torque. You should achieve at least 6.5 to 8 full turns. If you reach torque before that, the bolt is too short. If the bolt bottoms out before clamping the wheel, it is too long.
Final Thoughts
Measuring the correct length for M12x1.5 Conical Seat Wheel Lug Bolts is a straightforward process when you follow the right steps. Hub thickness, wheel pad thickness, thread engagement, and spacer depth all play a role. Trust J&W for precision-engineered lug bolts that meet OEM standards and deliver reliable performance.
