How Do You Control Graphite Morphology in Vermicular Cast Iron Casting During Production

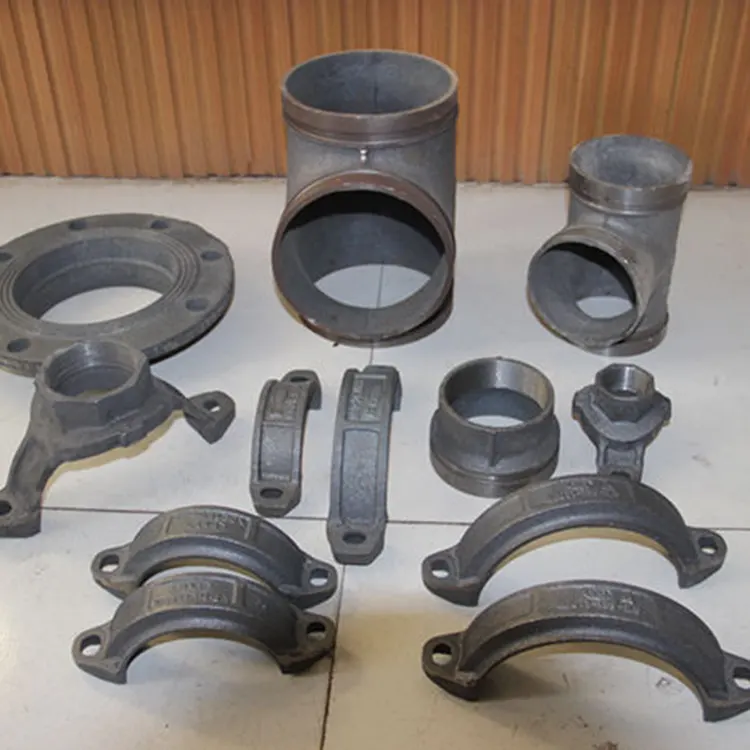

Controlling graphite morphology is the single most critical challenge in Vermicular Cast Iron Casting. Unlike gray iron (flake graphite) or ductile iron (spheroidal graphite), vermicular graphite requires a tightly controlled transitional structure—partially flake, partially spherical. This unique shape delivers exceptional thermal conductivity and mechanical strength, but production stability remains difficult. At Difon, we have spent over a decade refining process windows to achieve consistent vermicular ratios above 80% in high-volume foundry operations.

The Core Variables That Shape Graphite Form

Graphite morphology in Vermicular Cast Iron Casting is governed by five interdependent factors. The table below summarizes their influence and control limits:

Step-by-Step Production Control Strategy

1. Base Iron Preparation with Low Sulfur

Start with a low-sulfur base iron (below 0.015%). Higher sulfur consumes excessive magnesium, narrowing the already tight vermicular range. Difon uses deslagging and synthetic slag covers to keep sulfur variation within ±0.002% across shifts.

2. Magnesium Treatment – The Narrow Window

Add magnesium wire or FeSiMg alloy in controlled increments. The target residual Mg is 0.012% ± 0.004%. This is the most sensitive step: below 0.008% gives flake graphite (gray iron), above 0.018% gives nodules (ductile iron). Difon employs real-time thermal analysis cups to adjust Mg addition within 30 seconds of sampling.

3. Inoculation to Refine Nucleation Sites

Post-treatment inoculation with Zr-bearing or Ba-bearing ferro-silicon increases nucleation sites, reducing undercooling and stabilizing the vermicular shape. Over-inoculation shifts the structure toward ductile iron, so Difon calibrates inoculant weight based on each ladle’s thermal history.

4. Controlled Pouring and Mold Design

Pouring temperature must stay within 1380–1420°C. Higher temperatures increase Mg fade; lower temperatures promote premature solidification and flake formation. For thick sections (>80mm), Difon adds chill plates to accelerate cooling, preventing graphite coarsening.

5. In-Process Metallographic Verification

Every production batch includes a sample casting for rapid metallographic inspection (within 5 minutes). The vermicularity ratio is calculated per ASTM A247. If the ratio falls below 75%, the melt is diverted to gray iron production—avoiding scrap losses.

Common Pitfalls and How Difon Avoids Them

• Mg fade over time: We pour all castings within 8 minutes of treatment; after 10 minutes, Mg loss exceeds 0.003%.

• Inconsistent sulfur from returns: We segregate returned scrap by chemical analysis and pre-blend before melting.

• Thermal gradient variations: Our gating system design includes multiple ingates to ensure uniform filling and directional solidification.

Vermicular Cast Iron Casting FAQ – Expert Answers

Q1: What is the acceptable vermicularity percentage for high-performance cylinder heads, and how do you measure it in production?

A1: For automotive and heavy-duty applications, the acceptable vermicularity ratio is 80% or higher, with the remainder being spheroidal graphite (not flake). In production, Difon measures this using quantitative image analysis on polished, unetched samples at 100× magnification. We take three fields per sample and average the results. If any field drops below 75%, we reject the entire heat. We also perform ultrasonic velocity testing as a secondary check—vermicular iron shows a velocity of 5,400–5,600 m/s, whereas flake iron drops below 5,000 m/s, giving us real-time non-destructive verification for every casting batch.

Q2: Why does residual magnesium have such a narrow tolerance, and what happens if it drifts by just 0.005%?

A2: Magnesium is a strong carbide-forming and graphitizing element. At 0.008% Mg, the graphite grows preferentially along the basal plane, producing flakes. At 0.018% Mg, the surface tension of the melt changes enough to force complete spheroidal growth. The 0.010% gap between these points is the only “working range” for vermicular graphite. A drift of +0.005% (from 0.012% to 0.017%) will produce 40–50% nodular graphite, which reduces thermal conductivity by 15–20%—ruining the part’s ability to dissipate heat. A drift of -0.005% (to 0.007%) produces flake graphite, cutting tensile strength by half. Difon avoids this by using automated Mg feed systems that adjust based on live thermal analysis, not manual ladle additions.

Q3: Can inoculation completely correct an incorrect magnesium level, or is it only a fine-tuning tool?

A3: Inoculation cannot correct an off-target magnesium level—it only affects nucleation density and undercooling, not graphite shape directly. If your residual Mg is 0.020% (ductile range), even heavy inoculation will not revert the shape to vermicular; you will simply get finer spheroids. If your Mg is 0.007% (gray range), inoculation will produce finer flakes but never vermicular. Inoculation is strictly a fine-tuning tool for the correct Mg base. At Difon, we treat inoculation as a “morphology stabilizer” rather than a “corrector.” We always confirm Mg before inoculation, and we adjust inoculant type (barium-based for thick sections, zirconium-based for thin sections) only after the Mg reading is confirmed within the vermicular zone. This two-step discipline is why our first-pass yield exceeds 92%.

Advanced Process Monitoring at Difon

We integrate three layers of real-time control:

• Thermal analysis (cooling curve derivative) – predicts morphology within 90 seconds.

• Spark emission spectroscopy – checks Mg, S, Ce, and La every 15 minutes.

• Automated mold filling sensors – detect temperature drop per cavity and flag deviations.

This digital approach reduces operator dependency and ensures that Vermicular Cast Iron Casting remains repeatable across multiple production lines.

Why Consistency Matters for Your Applications

In turbocharger housings, exhaust manifolds, and brake discs, the difference between 78% and 85% vermicularity translates to a 30% variation in thermal fatigue life. Difon has documented that maintaining a standard deviation of less than ±0.002% Mg across 500 consecutive heats leads to zero field failures related to graphite structure. Our customers report that parts from Difon show 98% dimensional stability after 1,000 thermal cycles—compared to 87% from suppliers using manual Mg control.

Ready to Stabilize Your Vermicular Cast Iron Casting Production?

Graphite morphology control is not a one-time setup—it demands systematic instrumentation, disciplined sampling, and real-time corrective action. Difon brings this expertise to every project, whether you are prototyping new designs or scaling up high-volume orders.

Contact us today for a free process audit of your current vermicular casting line. Our engineering team will analyze your melt practice, recommend precision Mg feed systems, and provide on-site training to achieve first-pass yields above 90%.
