How Do Torsional Shear Bolts Improve Structural Connections?

Torsional Shear Bolt, also known as a torsion‐shear high strength bolt or tension control bolt, is designed to simplify installation and guarantee consistent preload by breaking off a spline tail when the correct torque is reached. This product is increasingly used in steel structures, bridges, towers, and other load‐bearing assemblies where secure, high‐strength bolted connections are critical.

Below is a typical specification summary of a torsional shear bolt product line to set the stage:

What Is a Torsional Shear Bolt?

Definition and Principle

A torsional shear bolt is a high-strength structural fastener that includes a built-in spline tail. When being tightened with a specially calibrated shear (or torque) wrench, the spline tail will break off once the bolt reaches its intended tensile preload. This action provides a visual and mechanical indication that sufficient torque has been applied, ensuring reliable clamp force and reducing dependency on operator judgment.

This mechanism differentiates it from common hex head bolts or tension control (TC) bolts, though sometimes the terminology overlaps (torsional shear bolt ≈ TC bolt).

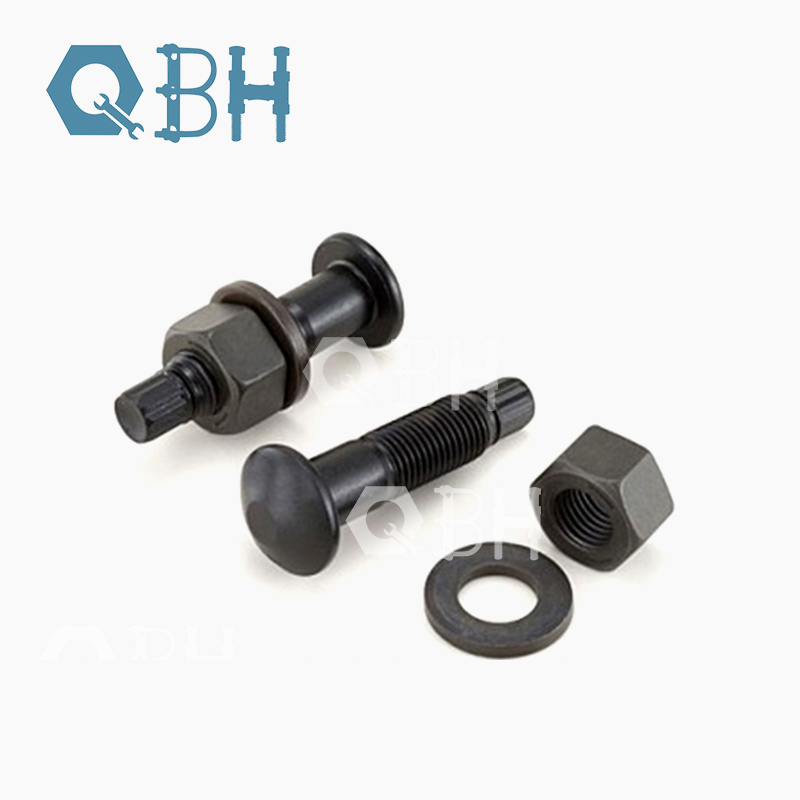

Structure & Components

• Head: Usually semi-spherical or “mushroom” style rather than hexagonal to facilitate single-side tightening and visual inspection.

• Shaft / Thread: Designed to standard metric or imperial thread, with careful control of thread pitch, tolerance, and material properties.

• Spline Tail (“Plum Head”): A protruding section with splines that is engineered to shear off at a precise torque level during final tightening.

• Nut & Washer: A high-strength nut and usually one washer on the nut side. Some designs omit washers or modify washer geometry to optimize load distribution.

Application Scenarios

Torsional shear bolts are particularly favored in structural steel work:

• Industrial buildings, stadiums, towers, and bridges

• Crane runways, boiler supports, and structural frameworks

• High-vibration or cyclic-load applications where bolt loosening must be minimized

Why Use Torsional Shear Bolts? (Advantages & Challenges)

Key Advantages

Consistent Preload Assurance

Because the spline is engineered to break off only when the bolt reaches the correct tension, overtightening or undertightening is minimized. Traditional torque methods can vary due to friction, lubrication, and operator error.

Simplified Installation & Inspection

Single-side access and one-tool tightening make installation faster and simpler. The broken tail itself is a pass/fail indication, obviating the need for external torque measuring or post-inspection tools.

No Need for Lock Nuts

Because the bolt is preloaded precisely and the spline breaks off, torsional shear bolts tend to resist loosening under vibration, making lock nuts redundant in many cases.

Higher Efficiency & Labor Savings

Only one worker is usually needed to tighten and inspect. This reduces labor costs and accelerates erection time, especially for large structures with many fasteners.

Fatigue Resistance

With proper preload and tightly controlled installation, the load distribution is more stable, helping resist fatigue and preventing joint slip. The elimination of torsional shear in the bolt during preload also reduces residual stresses.

Common Challenges & Limitations

• Special Tools Required: Electric shear wrenches or torque calibration tools are necessary for installation. This can be a higher upfront cost.

• Limited Sizes and Lengths: Compared to conventional bolts, torsional shear bolts come in a more restricted range of diameters and lengths.

• Sensitivity to Surface Conditions: Any alteration in thread lubrication, plating, or damage may affect the torque-tension relationship and lead to underperformance.

• Once-Break / Non-Adjustable: After the tail breaks off, the bolt cannot be re-adjusted. If reinstallation or adjustment is needed, the entire bolt must be replaced.

• Cost Premium: Manufacturing precision and additional tooling often make torsional shear bolts more expensive than conventional high-strength bolts.

FAQ: Common Questions about Torsional Shear Bolts

Q1: How does one verify the bolt was correctly tightened?
A1: The spline tail breaks off at a predetermined torque, serving as a visual and mechanical verification. If the tail remains, tension was insufficient; if the tail completely sheared, tensioning is complete.

Q2: Can a torsional shear bolt be reused after removal?
A2: No. Once the spline tail is broken, the bolt has been plastically deformed and cannot be reliably reused. Replacement with the same specification is required.

How to Select, Install, and Maintain Torsional Shear Bolts

Selection Guidelines

Determine Load Requirements & Safety Factor

Calculate the design tension, shear, dynamic loads, fatigue cycles, and environmental stresses. Choose a bolt grade and diameter that offers sufficient margin.

Match Standards & Codes

Select bolts conforming to relevant standards (e.g. GB standards in China, ASTM/ISO in other regions) and ensure you reference correct batch certificates and test reports.

Surface Treatment & Corrosion Resistance

Choose plating or galvanizing according to corrosion environment. Note that plating may affect torque values and must be accounted for carefully.

Tailor Tooling & Tail Length

Ensure that you have compatible shear wrenches for required diameter ranges. The tail length and spline must match the tool’s break-off spec.

Installation Steps

1. Pre-assemble the bolt, washer, and nut loosely by hand.

2. Initial tightening: Use an impact or adjustable torque wrench to bring bolt within a certain percentage of desired preload (often 60–80%).

3. Final tightening / torsion shear stage: Use a calibrated shear wrench to apply torque until the spline tail breaks off, indicating successful preload.

4. Inspection: Check visually whether tails are completely sheared and flush; confirm any quality report or tagging.

5. Torque verification sampling: In high-stakes jobs, randomly check some bolts’ tension or residual elongation to verify process integrity.

Maintenance & Inspection

• Periodic checks for loosening or corrosion over time.

• In vibration environments, monitor whether any nibs or broken tails have shifted, indicating potential slip.

• In case of loosening or failure, replace affected bolt(s) entirely.

• Document installation records, tool calibration logs, and batch data for traceability.

Trends, Challenges & Future Prospects

Evolving Industry Trends

Smarter Bolting & Digital Monitoring

Integration of sensors and smart tooling (e.g. digital shear wrenches with data logging) enables real-time feedback, traceability, and predictive maintenance of bolted joints.

Expanded Size Range & Custom Design

Manufacturers are extending the range of diameters, lengths, and grades, pushing into larger structural applications and custom solutions.

Advanced Materials & Coatings

New alloy steels, surface treatments (e.g. improved galvanic coatings, corrosion inhibitors) and nanocoatings aim to enhance strength-to-weight ratios and longevity in corrosive environments.

Automated & Robotic Installation

Robotic bolting systems equipped with torsion shear tools may enable automated, high-speed installation for large-scale projects.

Key Challenges & Focus Areas

• Cost control: Precision production and calibration raise cost; balancing performance and economics is key.

• Tool standardization: Ensuring cross-compatibility of shear wrenches across bolt suppliers and construction sites.

• Reliability under extreme environments: Ensuring that torque-tension relationships remain valid under temperature, humidity, or chemical exposure.

• Training & quality control: Highly skilled processes and documentation will remain critical to prevent misinstallation or system failures.

Conclusion & Call to Action

Torsional shear bolts represent a high-efficiency, reliable fastening solution for demanding steel structure applications. Their advantages in installation speed, preload consistency, and vibration resistance make them increasingly preferred in modern construction and infrastructure projects. As technological integration, materials innovation, and automated systems mature, torsional shear bolt usage is expected to expand further into large-scale and critical structures.

For those seeking a trustworthy torsional shear bolt supplier with rigorous quality control, comprehensive product lines, and custom capabilities, QBH is positioned to provide you with premium solutions. Contact us today to learn more and get your tailored quotation.
