How Do Set Screws Improve Mechanical Fastening Performance?
2026-05-27
Set screws are critical fastening components used in machinery, automotive systems, industrial equipment, robotics, electronics, and precision assemblies. Choosing the correct set screw can directly affect equipment stability, torque transmission, vibration resistance, and long-term operational safety. This article explains how set screws work, their common types, applications, materials, installation methods, and how to select the best option for demanding industrial environments.
Table of Contents
What Are Set Screws?

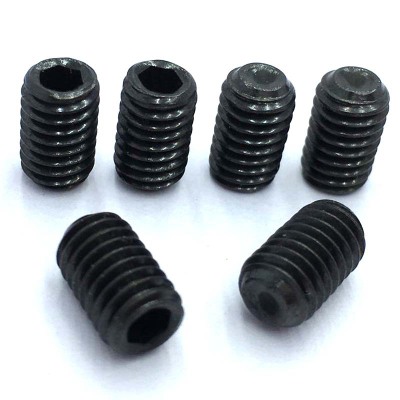

Set screws are threaded fasteners designed to secure one object inside or against another object without using a traditional nut. Unlike standard screws, set screws are usually headless and fully threaded. They are commonly used to lock pulleys, gears, collars, bearings, and hubs onto shafts.
Their compact design allows them to fit flush with or below the surface of the component, making them ideal for applications where space is limited or a smooth exterior is required.
- Compact and space-saving fastening solution
- Excellent torque transmission capability
- Strong resistance against vibration loosening
- Suitable for precision mechanical assemblies
- Available in multiple point styles and materials
How Do Set Screws Work?
Set screws work by applying compressive force through the screw tip onto the target surface, usually a shaft or internal component. Once tightened, the pressure generated by the screw prevents relative movement between components.
Different tip designs create different holding characteristics. Some prioritize strong penetration into the shaft surface, while others minimize surface damage and allow repeated repositioning.
| Set Screw Point Type | Main Feature | Typical Application |
|---|---|---|
| Cup Point | Strong holding power | General machinery |
| Flat Point | Reduced surface damage | Soft shafts and precision parts |
| Cone Point | Maximum penetration | Permanent positioning |
| Dog Point | Accurate alignment | Machine assemblies |
| Knurled Cup Point | Extra vibration resistance | Heavy-duty equipment |
Common Types of Set Screws
Choosing the correct type of set screw is essential for ensuring mechanical reliability and reducing maintenance costs.
Cup Point Set Screws
Cup point set screws are among the most widely used options because they provide strong gripping action and excellent resistance to vibration.
Flat Point Set Screws
Flat point designs distribute pressure over a wider area, reducing shaft damage and making them suitable for delicate or hardened surfaces.
Cone Point Set Screws
Cone point screws deliver aggressive locking performance by penetrating directly into the mating surface. They are ideal for permanent installations.
Dog Point Set Screws
Dog point designs provide accurate positioning and alignment in pre-drilled holes, commonly used in precision mechanical systems.
Materials and Surface Treatments
The material and coating selection of set screws greatly affects corrosion resistance, hardness, load capacity, and environmental durability.
| Material | Advantages | Common Industries |
|---|---|---|
| Carbon Steel | High strength and affordability | Industrial machinery |
| Stainless Steel | Excellent corrosion resistance | Marine and food equipment |
| Alloy Steel | Superior hardness | Heavy equipment |
| Brass | Non-marring and corrosion resistant | Electronics |
Popular coatings include black oxide, zinc plating, phosphate coating, and nickel plating. These treatments help improve wear resistance and environmental durability.
Industrial Applications
Set screws are widely used across multiple industries because of their compact size and dependable fastening capability.
Automotive Industry
Used in steering systems, transmission assemblies, pulleys, and rotating shafts.
Manufacturing Equipment
Provides secure positioning for gears, collars, conveyor systems, and motors.
Electronics
Ideal for compact assemblies requiring precision fastening and vibration resistance.
Medical Devices
Used in precision instruments where reliability and clean appearance are critical.
How to Choose the Right Set Screw
Selecting the correct set screw depends on several technical considerations. A poor selection can lead to loosening, shaft damage, or premature equipment failure.
- Determine the load requirements — Consider torque, vibration, and operational stress.
- Select the proper point style — Match the holding method to the application.
- Choose suitable materials — Evaluate environmental exposure and corrosion risks.
- Verify thread specifications — Ensure compatibility with mating components.
- Consider maintenance needs — Some designs allow easier adjustment and replacement.
For demanding industrial environments, many engineers prefer hardened alloy steel set screws with anti-corrosion coatings to maximize operational lifespan.
Installation Best Practices
Proper installation is essential for achieving optimal fastening performance and preventing mechanical failure.
- Clean threads before installation
- Use the correct tightening torque
- Apply thread-locking compounds when necessary
- Inspect shaft surfaces for wear or contamination
- Use appropriate hex keys or drivers
- Regularly inspect screws in high-vibration systems
Over-tightening may deform the shaft or damage threads, while under-tightening can cause loosening during operation.
Common Problems and Solutions
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| Loosening During Operation | High vibration | Use knurled cup point or thread locker |
| Shaft Damage | Incorrect point style | Use flat point screws |
| Corrosion | Harsh environment | Choose stainless steel materials |
| Thread Failure | Over-tightening | Apply correct torque values |
Why Choose Suzhou Wisdom International Co., Ltd
Suzhou Wisdom International Co., Ltd specializes in high-quality industrial fasteners and precision hardware components for global customers. The company provides reliable set screw solutions designed for demanding applications across manufacturing, automation, transportation, electronics, and heavy industry.
With strict quality control procedures, advanced production capabilities, and extensive export experience, Suzhou Wisdom International Co., Ltd delivers products that meet international performance standards while supporting customized engineering requirements.
- Wide range of set screw specifications
- Custom materials and surface treatments
- Stable production and global shipping support
- Competitive pricing for bulk orders
- Professional technical assistance
FAQ
What is the difference between a set screw and a regular screw?
A set screw is usually headless and designed to secure components within mechanical assemblies, while regular screws typically use a head and nut for fastening.
Which set screw point type provides the strongest holding power?
Cone point and cup point set screws generally provide the strongest holding capability for high-torque applications.
Are stainless steel set screws suitable for outdoor use?
Yes. Stainless steel set screws offer excellent corrosion resistance and are commonly used in outdoor or humid environments.
Can set screws be reused?
Many set screws can be reused if the threads and point surfaces remain undamaged after removal.
How do I prevent set screws from loosening?
Using thread-locking adhesive, correct torque values, and vibration-resistant point styles can significantly reduce loosening risks.
