How Do I Replace the Primary Clutch Assembly on a Honda Wave125 KPH C110 110cc Auto Clutch Motorcycle
2026-10-12

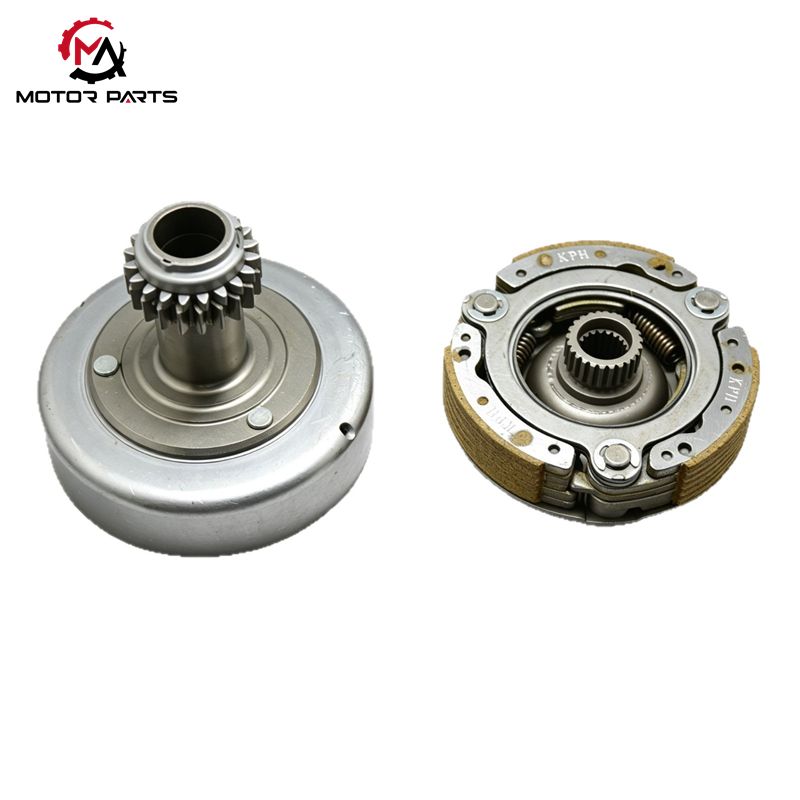

The Primary Clutch Assembly For Honda Wave125 KPH C110 110cc Motorcycle Auto Clutch is one of the most important components in the automatic transmission system of these underbone motorcycles. When it wears out, riders often notice sluggish acceleration, strange noises, or a complete loss of drive. At Max Trading, we supply high-quality replacement clutch assemblies and have helped thousands of riders restore their bikes to peak performance. This guide walks you through the replacement process step by step, using professional techniques and the right tools.
Tools and Materials Required
| Tool / Material | Purpose |
|---|---|
| Primary Clutch Assembly For Honda Wave125 KPH C110 110cc Motorcycle Auto Clutch | Replacement part |
| Socket set (8mm–17mm) | Removing bolts and nuts |
| Torque wrench | Ensuring correct tightening specs |
| Impact driver | Loosening the clutch nut |
| Clutch holder tool | Preventing rotation during removal |
| New gasket and oil seal | Sealing the crankcase |
| Engine oil | Refilling after reassembly |
| Clean rags and solvent | Cleaning mating surfaces |
Step-by-Step Replacement Procedure
1. Preparation and Safety
Park the motorcycle on a flat surface, turn off the engine, and let it cool completely. Disconnect the battery negative terminal. Drain the engine oil into a suitable container.
2. Remove the Left Crankcase Cover
Loosen the bolts in a crisscross pattern to avoid warping. Gently tap the cover with a rubber mallet and remove it. Inspect the gasket and replace it if damaged.
3. Secure the Clutch and Remove the Nut
Use a clutch holder tool to lock the Primary Clutch Assembly For Honda Wave125 KPH C110 110cc Motorcycle Auto Clutch in place. Remove the center nut with an impact driver or breaker bar.
4. Extract the Old Assembly
Slide the old Primary Clutch Assembly For Honda Wave125 KPH C110 110cc Motorcycle Auto Clutch off the shaft. Note the order of shims, washers, and springs for correct reassembly.
5. Install the New Assembly
Clean the shaft and mating surfaces. Fit the new Primary Clutch Assembly For Honda Wave125 KPH C110 110cc Motorcycle Auto Clutch in the reverse order of removal. Apply a small amount of clean engine oil to the shaft splines.
6. Torque and Reassemble
Tighten the center nut to the manufacturer's specification (typically 50–60 Nm). Reinstall the crankcase cover with a new gasket, then refill with the correct grade and quantity of engine oil.
7. Test Ride
Start the engine and let it idle. Check for leaks and unusual noises. Take a short test ride to confirm smooth engagement and acceleration.
Maintenance Tips
| Symptom | Likely Cause | Solution |
|---|---|---|
| Slipping under acceleration | Worn clutch shoes | Replace Primary Clutch Assembly For Honda Wave125 KPH C110 110cc Motorcycle Auto Clutch |
| Grinding noise | Damaged bearings | Inspect and replace assembly |
| No movement | Broken springs | Install new assembly |
| Vibration | Worn shaft splines | Check shaft and replace if needed |
FAQ – Common Questions About the Primary Clutch Assembly
Q: How do I know if my Honda Wave125 KPH C110 110cc needs a new Primary Clutch Assembly For Honda Wave125 KPH C110 110cc Motorcycle Auto Clutch?
A: Common signs include slipping during acceleration, delayed engagement, grinding or rattling noises from the crankcase, and a sudden loss of power transfer. If the clutch shoes are worn below the service limit or the springs are weak, replacement is necessary. Max Trading recommends inspecting the assembly every 20,000 km.
Q: Can I install a Primary Clutch Assembly For Honda Wave125 KPH C110 110cc Motorcycle Auto Clutch without special tools?
A: While basic hand tools can remove the crankcase cover, the center nut requires a clutch holder tool and a torque wrench. Using an impact driver without a holder can damage the shaft. For best results, follow the service manual and use the correct tools. Max Trading offers tool kits and genuine parts for a perfect fit.
Q: How long does a Primary Clutch Assembly For Honda Wave125 KPH C110 110cc Motorcycle Auto Clutch typically last?
A: With regular oil changes and normal riding conditions, a quality assembly lasts between 30,000 and 50,000 km. Aggressive riding, heavy loads, and poor maintenance shorten its lifespan. Choosing a durable replacement from Max Trading ensures maximum reliability and performance.
