How do deep drawn services support lightweighting in automotive engineering
2026-04-15
The automotive industry is under constant pressure to reduce vehicle weight in order to improve fuel efficiency, lower emissions, and extend electric vehicle range. Deep drawn services have emerged as a critical manufacturing solution in this pursuit. At Youlin, we specialize in providing high-precision deep drawn services that enable automakers and Tier 1 suppliers to produce lighter, stronger, and more complex metal components without sacrificing structural integrity.
The role of deep drawn services in lightweighting

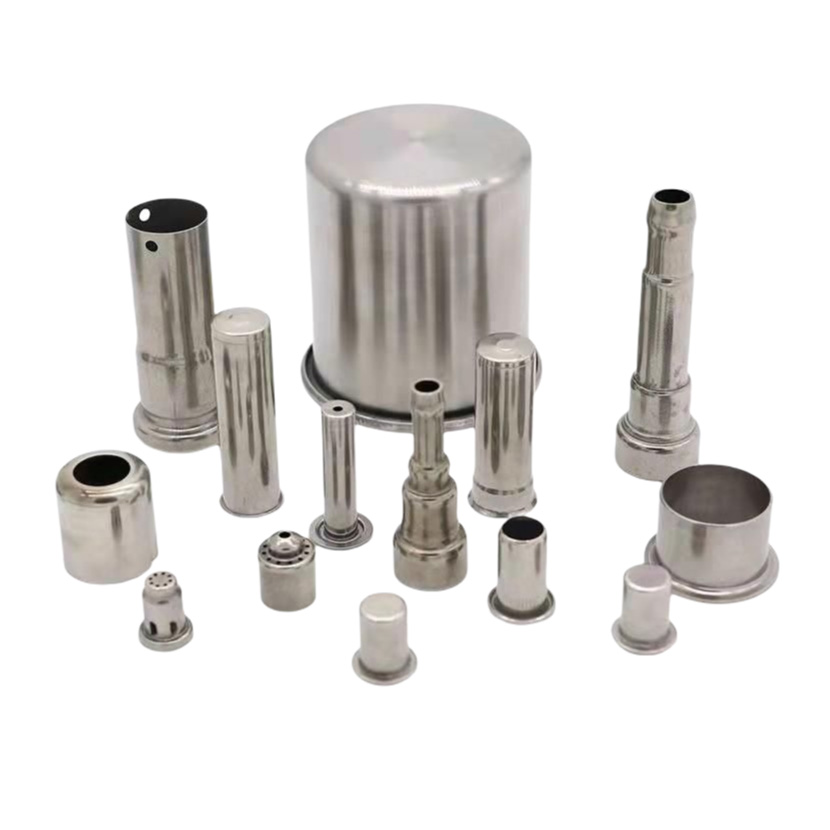

Deep drawn services transform flat metal blanks into seamless, three-dimensional parts through a controlled punching and drawing process. This method allows for thinner wall thicknesses while maintaining excellent mechanical properties, directly supporting automotive lightweighting goals.
| Lightweighting Strategy | How Deep Drawn Services Contribute |
|---|---|
| Material reduction | Achieve complex shapes with uniform wall thickness, minimizing excess material |
| High-strength alloys | Form advanced materials like high-strength steel and aluminum without cracking |
| Part consolidation | Replace multi-piece assemblies with a single drawn component, reducing fasteners and joints |
| Thin-wall design | Maintain structural strength at lower gauges than traditional stamping |
Key applications in modern vehicles
Deep drawn services from Youlin are widely used in:
-
Battery enclosures for electric vehicles
-
Sensor housings and connectors
-
Fuel system components
-
Airbag canisters and safety parts
-
Transmission and clutch components
Deep Drawn Services FAQ
What makes deep drawn services more effective for lightweighting than traditional stamping?
Deep drawing allows for a higher depth-to-diameter ratio and produces parts with superior grain structure integrity. Unlike traditional stamping, which can create weak points at bends and seams, deep drawn components are seamless and work-hardened during forming. This means engineers can specify thinner starting materials without compromising strength. Additionally, deep drawing generates less scrap material—often less than 10% waste compared to up to 40% with stamped and welded assemblies—directly reducing both weight and material costs.
Can deep drawn services work with aluminum and other lightweight alloys?
Yes, and Youlin has extensive experience forming aluminum, high-strength low-alloy (HSLA) steels, copper alloys, and stainless steel. However, lightweight alloys require precise control over blank holder force, punch speed, and lubrication to prevent tearing or wrinkling. Aluminum, for example, has lower ductility than steel and demands specialized tooling geometries. Youlin uses advanced simulation software and in-house die design to optimize each draw reduction stage, ensuring defect-free parts even at reduced thicknesses.
How does part consolidation through deep drawn services reduce overall vehicle weight?
One deep drawn component often replaces assemblies made of multiple stamped, welded, or fastened parts. Each eliminated bracket, weld nut, or overlap joint contributes directly to weight savings. For instance, a deep drawn battery tray can replace a fabricated structure of six separate stamped pieces and twelve fasteners. Beyond the obvious mass reduction, consolidation also eliminates failure points, improves dimensional accuracy, and reduces the need for heavy sealing materials or reinforcement ribs.
Best practices for maximizing lightweighting with deep drawn services
-
Design with uniform wall thickness in mind
-
Select the highest-strength formable alloy for the application
-
Simulate material flow before hard tooling
-
Partner with an experienced provider like Youlin for progressive die design
Why choose Youlin for deep drawn services in automotive lightweighting
Youlin combines decades of engineering expertise with modern press technology ranging from 5 to 400 tons. Every project begins with feasibility analysis and material consultation to ensure the lightest possible design meets all performance targets. Our deep drawn services include prototyping, simulation, tooling fabrication, and high-volume production with full SPC documentation.
For automakers seeking validated weight reduction strategies, deep drawn services are no longer optional—they are essential.
Contact us today to discuss your lightweighting challenge. Youlin provides free design reviews, material recommendations, and rapid quotes for custom deep drawn services tailored to automotive engineering requirements.
