How Do Closed Loop Hybrid Stepper Motors Improve Motion Control Accuracy
2025-11-05

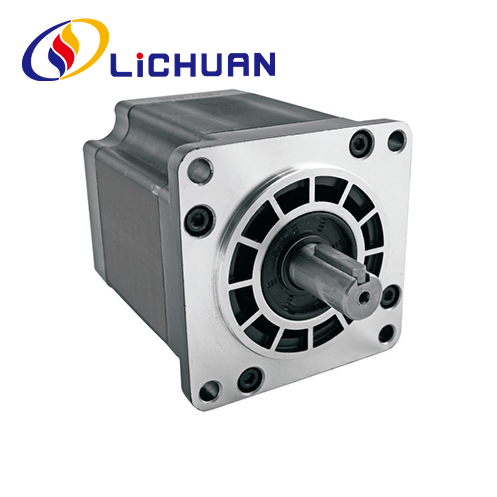

For decades, motion control engineers have faced a persistent challenge: how to achieve the perfect balance of cost, simplicity, and precision. Open-loop stepper motors are reliable workhorses, but they can stutter, stall, and lose steps without the system ever knowing. This is where the closed loop hybrid stepper motor from LICHUAN® changes the game. It retains the core simplicity and high torque of a traditional Hybrid Stepper Motor but adds a critical layer of intelligence through an integrated encoder, creating a system that constantly self-corrects for unparalleled accuracy and reliability.
What Core Features Define a High-Performance Closed Loop System
A true closed-loop system is more than just a motor with an add-on encoder. It's an integrated solution. The LICHUAN® design philosophy focuses on three pillars:
-
Real-Time Position Feedback: An integrated high-resolution encoder acts as the system's eyes, continuously monitoring the rotor's actual position and feeding this data back to the driver.
-
Intelligent Error Correction: The drive electronics compare the actual position with the commanded position. If a deviation is detected—due to load changes or resonance—the system instantly and automatically compensates, eliminating positional errors.
-
Optimized Torque Delivery: Unlike open-loop systems that run at full current, our closed-loop Hybrid Stepper Motor dynamically adjusts current to the exact demand of the load, reducing heat and energy consumption.
How Do the Technical Specifications Translate to Tangible Benefits
Let's look at the hard data. The performance of our LICHUAN® CLS Series is defined by parameters that directly solve application pain points.
| Parameter | Specification | Real-World Advantage |
|---|---|---|
| Encoder Resolution | 1000 PPR | Provides fine-grain position feedback for smooth, jitter-free motion, even at very low speeds. |
| Position Accuracy | ±0.09° | Eliminates cumulative error, guaranteeing the load arrives at the exact intended location every single time. |
| Max. Holding Torque | 3.5 N.m | Delivers high starting torque in a compact form factor, ideal for applications with high inertial loads. |
Frequently Asked Questions About Hybrid Stepper Motors
What is the main advantage of a hybrid stepper motor over other types
The primary advantage is its superior combination of high torque at low speeds and a small step angle for precise positioning. This makes the Hybrid Stepper Motor ideal for applications requiring controlled, accurate movement without the complexity of a servo system.
Can a closed loop system recover from a missed step
Yes, this is its defining feature. A LICHUAN® closed loop hybrid stepper motor continuously monitors its position. If the load causes a momentary slip or missed step, the controller detects the discrepancy and issues corrective commands to regain the correct position without requiring a system reset.
Are these motors a direct replacement for open-loop steppers
In most cases, yes. The LICHUAN® closed-loop motors are designed with form factors that are often mechanically interchangeable with their open-loop counterparts. This allows for a straightforward upgrade path, significantly boosting system performance without a complete mechanical redesign.
If you are ready to eliminate positioning errors, reduce machine downtime, and boost the overall efficiency of your equipment, the solution is clear. Contact us today to discuss your application requirements. Our engineering team at LICHUAN® is ready to provide you with detailed technical data and support to integrate the precision of our closed loop hybrid stepper motor into your next project.
