Does the Color of a Thermocouple Ceramic Insulator Indicate Its Maximum Operating Temperature
2026-08-27
When selecting a Thermocouple Ceramic Insulator for high-temperature measurement, engineers often notice a variety of colors—from ivory and pink to dark blue and emerald green. A common assumption is that these colors directly correlate with the insulator’s temperature ceiling. However, the relationship between color and thermal performance is far more nuanced. At Engineering Ceramic, we regularly clarify this misconception, because relying on visual cues alone can lead to catastrophic sensor failure. The truth is that while color offers clues about the base material and processing history, it is not a reliable standalone indicator of maximum operating temperature.

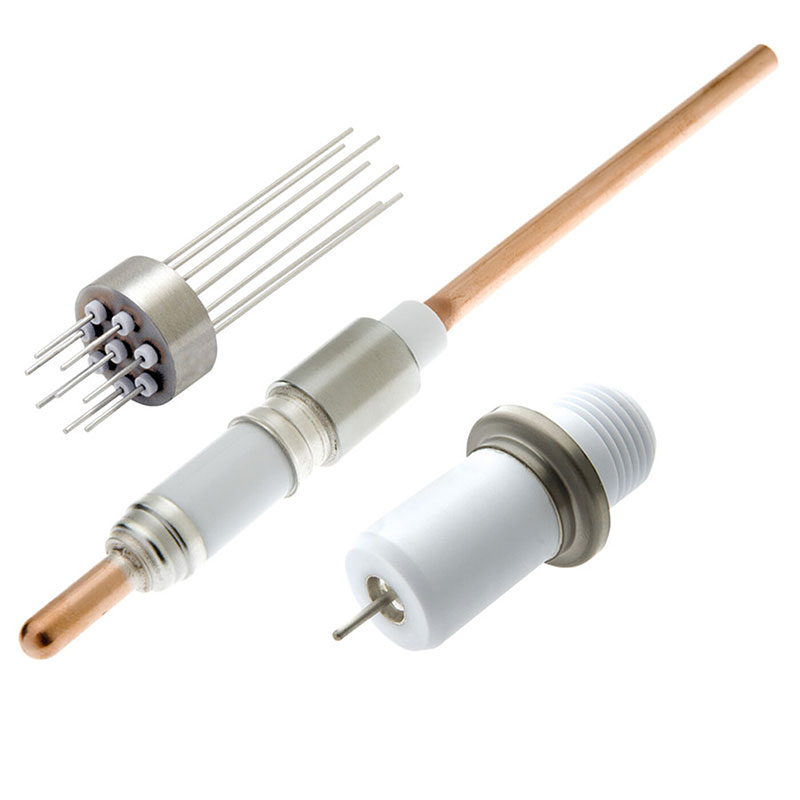

The Science Behind Ceramic Insulator Colors
The color of a Thermocouple Ceramic Insulator primarily results from two factors: the base oxide composition and the presence of trace dopants or impurities. For instance:
| Color | Common Material | Typical Max Temp (Continuous) | Key Note |
|---|---|---|---|
| Ivory / White | High-Purity Alumina (99.7%) | 1650°C – 1800°C | Color comes from minimal impurities; excellent dielectric strength. |
| Pink / Rose | Alumina with Chromium Oxide dopant | 1650°C – 1750°C | Dopant enhances mechanical toughness, not temperature rating. |
| Dark Blue / Navy | Alumina with Cobalt or Manganese | 1500°C – 1600°C | Lower max temp due to fluxing agents; often used for Type K thermocouples. |
| Emerald Green | Magnesia (MgO) or Spinel | 1800°C – 2000°C | Green indicates magnesium content; suitable for noble-metal thermocouples (Type R/S). |
| Yellow / Amber | Zirconia (Partially Stabilized) | 2000°C+ | Yellowish tint from yttria stabilizer; used in ultra-high-temperature applications. |
As the table shows, the same color family can appear across different materials, and the same material can vary in color due to sintering atmosphere or firing temperature. Therefore, color is a qualitative indicator, not a quantitative specification.
Why Color Alone Is Unreliable for Temperature Rating
The maximum operating temperature of a Thermocouple Ceramic Insulator depends on:
-
Material purity (trace glassy phases lower the softening point).
-
Density and porosity (higher porosity reduces thermal shock resistance).
-
Thickness and geometry (thinner walls fail earlier under thermal gradients).
-
Atmosphere compatibility (reducing environments can attack certain oxides).
For example, an ivory alumina insulator from one manufacturer may withstand 1700°C, while another ivory insulator with 92% purity may fail at 1400°C. Engineering Ceramic always recommends consulting the datasheet’s continuous service temperature rather than judging by eye. In fact, many high-purity magnesia insulators are intentionally dyed green for brand identification, not to signal a higher temperature limit.
Critical Selection Criteria (Beyond Color)
To make a safe and economical choice, evaluate these four parameters:
| Criterion | Why It Matters | Typical Range |
|---|---|---|
| Chemical Purity | Determines recrystallization point and creep resistance. | 95% – 99.9% |
| Bulk Density | Higher density = lower gas permeability and better voltage breakdown. | 3.2 – 3.9 g/cm³ |
| Thermal Shock Resistance | Affects survival during rapid heating/cooling cycles. | ΔT > 1000°C for alumina |
| Electrical Resistivity | Prevents leakage currents at high temperatures. | >10¹⁰ Ω·cm at 1000°C |
Engineering Ceramic produces custom insulators with documented traceability, so every batch includes certified test reports—not a color chart.
Frequently Asked Questions About Thermocouple Ceramic Insulator
Q1: Can I use a white Thermocouple Ceramic Insulator for a 1800°C application if it looks similar to a high-purity one?
A: No. Visual similarity is deceptive. White insulators are available in 92%, 95%, 99%, and 99.7% alumina grades. The 99.7% grade can handle 1800°C short-term, but the 92% grade softens above 1400°C. Always verify the manufacturer’s certification and test a sample under your actual thermal cycle. At Engineering Ceramic, we provide a material certificate with every shipment, listing the exact maximum operating temperature and thermal expansion coefficient.
Q2: Why does my blue Thermocouple Ceramic Insulator turn gray after a few heat cycles, and does that mean I’ve exceeded its temperature limit?
A: Color change during service is often caused by reduction of transition-metal oxides (e.g., cobalt or manganese) in a hydrogen-rich or oxygen-deficient atmosphere. This does not necessarily mean the temperature limit was exceeded—it indicates a chemical reaction with the environment. However, if the insulator becomes chalky, warped, or shows surface melting, then you have surpassed its maximum operating temperature. Monitor physical dimensions and electrical resistance rather than color. Engineering Ceramic recommends using protective sheaths or inert gas purging when operating above 1500°C in reducing conditions.
Q3: Is there a universal color code standard (like ASTM or IEC) for Thermocouple Ceramic Insulator temperature ratings?
A: No international standard exists that assigns temperature ratings to insulator colors. The nearest guidance comes from thermocouple wire color codes (e.g., ANSI MC96.1 for extension cables), but these apply to wires, not to ceramic insulation. Some OEMs use proprietary color schemes for internal tracing, but these are not interchangeable across brands. The only reliable standard is the material designation—for example, Al₂O₃ ≥99.5% per ISO 6474 or MgO per ASTM C927. Always request the material grade and test data from your supplier. Engineering Ceramic follows ISO 9001:2015 with full material traceability, eliminating guesswork.
Practical Checklist for Specifying the Right Insulator
-
□
Confirm the maximum steady-state and peak transient temperatures.
-
□
Identify the furnace atmosphere (oxidizing, reducing, vacuum, or inert).
-
□
Determine required insulation resistance (ohms) at the top temperature.
-
□
Choose the outer diameter and hole configuration (single, twin, or quad-bore).
-
□
Request a sample lot for thermal cycling validation.
-
□
Review the supplier’s quality control reports—not the color swatch.
Final Verdict
Color offers a rough, first-glance indication of the likely oxide family, but it is never a substitute for engineering data. A pink insulator from one source may outperform a green insulator from another, depending on purity and processing. For critical processes—semiconductor diffusion, aerospace engine testing, or metal heat treatment—basing decisions on color introduces unacceptable risk. Trust documented material specifications, third-party test results, and proven field performance.
