Can SMS 1145 Sanitary Stainless Steel Union Sets Be Used in CIP and SIP Systems

Hygienic processing plants increasingly rely on clean-in-place (CIP) and sterilization-in-place (SIP) protocols to protect product purity and reduce downtime. The performance of these systems depends heavily on the integrity of every wetted connection. SMS 1145 Sanitary Stainless Steel Union Sets from DINGYUE are engineered to meet precisely these demands, combining the Swedish SMS 1145 standard geometry with hygienic-grade stainless steel construction. This article examines whether these union sets are suitable for CIP and SIP service, and what technical factors engineers should verify before specification.

Understanding the SMS 1145 Standard

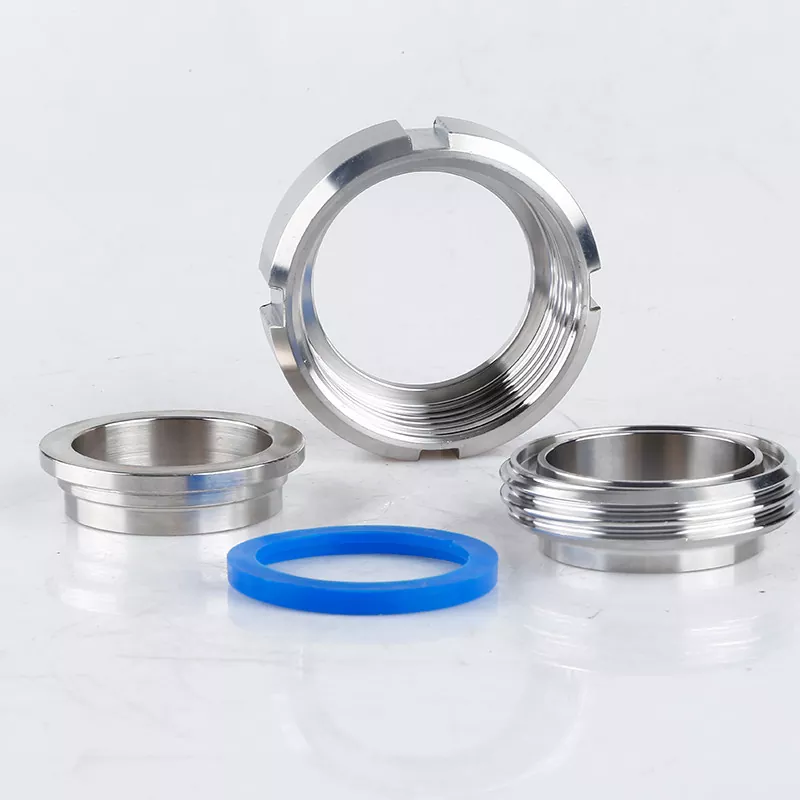

The SMS 1145 standard defines a hygienic union consisting of a male stud, a female nut, and a sealing gasket, with a characteristic 45° seat angle. This design delivers metal-to-metal contact plus an elastomeric seal, ensuring a crevice-free flow path.

Suitability for CIP Systems

CIP circuits circulate cleaning agents—typically caustic, acid, and hot water—at elevated temperatures and flow velocities. SMS 1145 Sanitary Stainless Steel Union Sets perform well in CIP service for the following reasons:

• Crevice-free design: The 45° seat and flush bore minimize areas where soil can accumulate and bacteria can harbor.

• Chemical resistance: 316L stainless steel and EPDM or PTFE gaskets resist common CIP chemicals across typical concentration ranges.

• Thermal stability: The metal-to-metal backing protects the gasket from extrusion during hot cleaning cycles.

• Repeatable assembly: Consistent nut torque supports reliable resealing after each cleaning cycle.

Suitability for SIP Systems

SIP typically involves saturated steam at 121–134 °C under pressure. Here, gasket selection becomes the decisive factor.

With the correct gasket, SMS 1145 Sanitary Stainless Steel Union Sets withstand repeated steam sterilization without seal degradation, provided the union is properly torqued and the seat is undamaged.

Installation and Maintenance Best Practices

• Verify weld quality and passivate weld zones to restore corrosion resistance.

• Torque nuts to the gasket manufacturer's specification; avoid over-compression.

• Inspect gaskets at each maintenance interval and replace at first sign of swelling, cracking, or discoloration.

• Confirm the union is fully seated before pressurization to prevent gasket extrusion.

DINGYUE Quality Commitment

DINGYUE manufactures SMS 1145 Sanitary Stainless Steel Union Sets with full material traceability, dimensional inspection to the SMS 1145 standard, and surface finishes suitable for hygienic service. Each batch is pressure-tested and documented for audit readiness.

FAQ

Are SMS 1145 Sanitary Stainless Steel Union Sets suitable for steam sterilization? Yes—when fitted with silicone or PTFE gaskets, they withstand standard SIP temperatures of 121–134 °C without seal failure.

Which gasket material should I choose for combined CIP and SIP duty? PTFE is the safest choice for combined chemical cleaning and high-temperature steam, while EPDM suits lower-temperature SIP cycles.

Can SMS 1145 Sanitary Stainless Steel Union Sets be reused after repeated cleaning cycles? Yes—the metal-to-metal seat design allows repeated disassembly and reassembly, provided gaskets are inspected and replaced as needed.

Conclusion

SMS 1145 Sanitary Stainless Steel Union Sets are fully capable of service in CIP and SIP systems when specified with appropriate gasket materials and installed correctly. Their hygienic geometry, corrosion-resistant construction, and repeatable sealing make them a dependable choice for demanding sanitary processes.

Contact us at DINGYUE today to request specifications, gasket options, or a quotation for SMS 1145 Sanitary Stainless Steel Union Sets tailored to your CIP and SIP requirements.
