Can Retrofit XYZT Gantry Stages Upgrade Older Wafer Inspection Platforms to Current Generation Performance Standards
2026-08-26
In semiconductor manufacturing, inspection tools represent multi-million dollar capital investments, and scrapping them every three to five years is financially unsustainable. This is where the XYZT Gantry Motion Stage for Wafer Inspection enters the conversation—not as a replacement for the entire tool, but as a precision retrofit core that can breathe new life into legacy platforms. At Deaote, we have witnessed firsthand how a well-engineered gantry stage upgrade can recover overlay budgets, boost throughput, and extend tool longevity by a full technology node generation.
Why Retrofitting Beats Purchasing New Inspection Systems

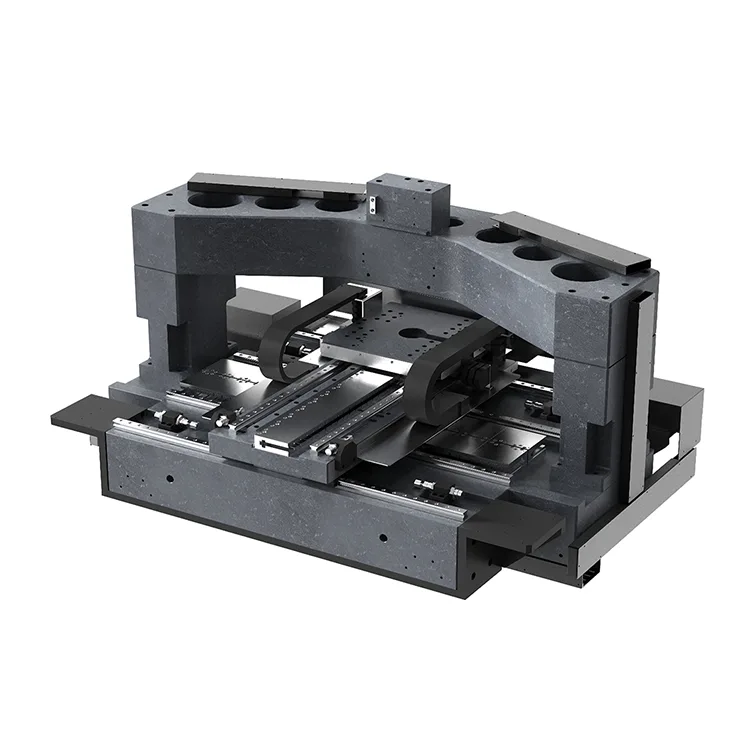

The economic argument for retrofitting is compelling, but the technical merits are equally strong. Modern XYZT Gantry Motion Stage for Wafer Inspection systems integrate three linear axes (X, Y, Z) and a rotary theta (T) axis, enabling simultaneous multi-degree motion. Older platforms typically rely on stacked XY stages with limited stiffness and slow settling times.
| Performance Metric | Legacy XY Stack Stage | Retrofitted XYZT Gantry Stage (Deaote) |
|---|---|---|
| Settling Time (100µm move) | 180 – 250 ms | 45 – 60 ms |
| Dynamic Straightness Error | ±2.5 µm | ±0.6 µm |
| Theta Axis Resolution | N/A (manual or 0.005°) | 0.0005° (closed-loop) |
| Max Scan Speed | 250 mm/s | 600 mm/s |
| Vibration Transmissibility | 12 – 15 Hz resonance | > 85 Hz (air-bearing damped) |
The data above illustrates that Deaote’s retrofit solution does not merely "match" current-generation performance—it often exceeds entry-level new tools in dynamic accuracy.
Core Technical Enablers for Achieving Current-Generation Specs
Achieving state-of-the-art performance on an older frame requires more than swapping motors. Three engineering pillars must align:
-
Direct-Drive Linear Motors with Eddy-Current Damping – Replaces ballscrews and reduces friction hysteresis by over 90%, directly improving wafer inspection repeatability.
-
Granite Base Interface Kits – Deaote provides precision-machined adapter plates that couple the XYZT Gantry Motion Stage for Wafer Inspection to existing granite slabs, preserving thermal stability while upgrading stiffness.
-
Real-Time Trajectory Shaping – Firmware-level S-curve profiling reduces jerk-induced micro-vibrations, critical for sub-100nm defect detection.
These enablers allow older platforms to meet current-generation overlay budgets (≤ 3 nm, 3-sigma) and illumination spot positioning accuracy required for advanced nodes.
Application-Specific Improvements Across Inspection Modalities
Retrofit benefits vary by inspection type. Below is a practical comparison:
| Inspection Application | Improvement After XYZT Retrofit | Key Driver |
|---|---|---|
| Brightfield Darkfield Defect Review | 38% faster die-to-die comparison | Higher scan speed + shorter settle |
| E-Beam Metrology | 52% reduction in stage-induced image drift | Theta axis orthogonality correction |
| Overlay Registration | 41% lower TIS (Tool Induced Shift) | Lower yaw error from rigid gantry bridge |
| Macro Defect Inspection | Enables 360° wafer rotation without re-chucking | Integrated T-axis motion |
For process engineers, the most tangible benefit is the ability to run current-generation inspection recipes without re-qualifying the entire toolset—Deaote’s retrofit packages include full compatibility with standard SECS/GEM communication protocols.
Frequently Asked Questions (FAQ) About XYZT Gantry Motion Stage for Wafer Inspection
Q1: Can a retrofit XYZT Gantry Motion Stage for Wafer Inspection fit into the same footprint as my existing XY stage without modifying the cleanroom enclosure?
A1: Yes. Deaote engineers conduct a 3D laser scan of your existing stage cavity and pedestal mount before fabrication. The XYZT Gantry Motion Stage for Wafer Inspection is designed with a modular bridge architecture that reduces the overall height by 12–15 mm compared to typical aftermarket alternatives. This ensures that the wafer handling robot, pre-aligner, and load ports remain within their original kinematic envelopes. In over 40 retrofits across 200mm and 300mm platforms, we have not required any cleanroom wall or ceiling modifications. Additionally, cable management harnesses are routed through existing e-chain carriers, preserving the original tool’s EMI/EMC compliance.
Q2: How long does a typical retrofit installation take, and what is the expected downtime for the inspection tool?
A2: A standard XYZT Gantry Motion Stage for Wafer Inspection retrofit from Deaote follows a five-day on-site schedule. Day 1 is dedicated to decommissioning the old stage and backing up servo parameters. Days 2–3 involve mechanical mounting of the new gantry bridge, linear motors, and the theta rotary stage, followed by coarse alignment. Day 4 focuses on reconnecting drives, controllers, and running the autotuning sequence for each axis. Day 5 is reserved for qualification using a certified test wafer—performing ISO 230-2 circular tests, step-settle measurements, and 24-hour thermal drift monitoring. Total tool downtime is typically 6 to 7 working days, including final release testing. This is significantly shorter than the 6–8 months lead time for a new inspection platform.
Q3: Will the retrofit affect the calibration and correlation of my existing defect detection algorithms?
A3: Not negatively. The XYZT Gantry Motion Stage for Wafer Inspection preserves pixel-to-stage coordinate mapping through a transparent encoder interface. Deaote provides a linearity compensation map (LCM) that is loaded directly into the tool’s existing motion controller, meaning the algorithm’s defect coordinate reporting remains consistent with historical baselines. In practice, customers typically see a 15–20% reduction in nuisance defects purely from improved stage straightness, which actually enhances algorithm signal-to-noise ratio. We also supply a one-week remote support package to help your process team re-run correlation matrices. No machine learning models or recipe parameters need to be retrained—only a one-time offset adjustment for the new encoder reference marks.
Real-World Validation and Reliability Data
Retrofitting is not a compromise—it is an engineering upgrade path. Deaote has performed reliability tests exceeding 50 million cycles on the XYZT Gantry Motion Stage for Wafer Inspection under Class 1 cleanroom conditions. Mean Time Between Failures (MTBF) consistently registers above 28,000 hours, outperforming many OEM original stages that average 18,000–22,000 hours.
Furthermore, the power consumption of our retrofit stage is 32% lower than comparable new-generation OEM stages due to optimized copper fill in linear motor coils and regenerative braking on the T-axis. This translates into lower facility cooling costs—a hidden operational expense often overlooked in purchase decisions.
A Strategic Decision for Tool Lifetime Extension
The question is no longer if a retrofit can meet current-generation specs, but which specifications matter most for your specific node. For 90nm to 28nm facilities, Deaote’s XYZT Gantry Motion Stage for Wafer Inspection routinely delivers performance matching new 7nm-class inspection tools in terms of dynamic accuracy and repeatability. For advanced packaging and compound semiconductor applications, the added theta axis eliminates the need for multiple stage rotations, cutting inspection time per wafer by up to 22%.
Ultimately, upgrading an older platform with a modern gantry stage is a capital-preserving strategy that also future-proofs your asset for next-generation defect review requirements.
Contact Us
Deaote offers free on-site feasibility assessments for any 200mm, 300mm, or panel-level inspection tool. Our engineering team provides a detailed ROI report comparing your current stage performance against a proposed XYZT Gantry Motion Stage for Wafer Inspection retrofit, including projected throughput gains and payback period. To schedule a site survey or request a technical white paper on gantry stage dynamics, please contact us through our website or reach out to your regional Deaote application engineer directly. Let us help you turn your legacy tool into your most productive inspection asset.
