Can Oval Vacuum Suction Cups ZP2 Handle High-Temperature or Oily Environments

In industrial automation, selecting the wrong gripping component for harsh conditions often leads to unexpected downtime, safety risks, and inflated maintenance costs. Oval Vacuum Suction Cups ZP2 have gained traction across electronics assembly, automotive stamping, and food packaging lines—but their real test begins when temperatures rise above 80°C or when coolant oils and release agents coat the workpiece surface. This blog examines the thermal and chemical resilience of Oval Vacuum Suction Cups ZP2, backed by material science and real-world application data, while highlighting how Comma integrates these cups into reliable end-of-arm tooling solutions.

Material Composition Determines Performance Limits

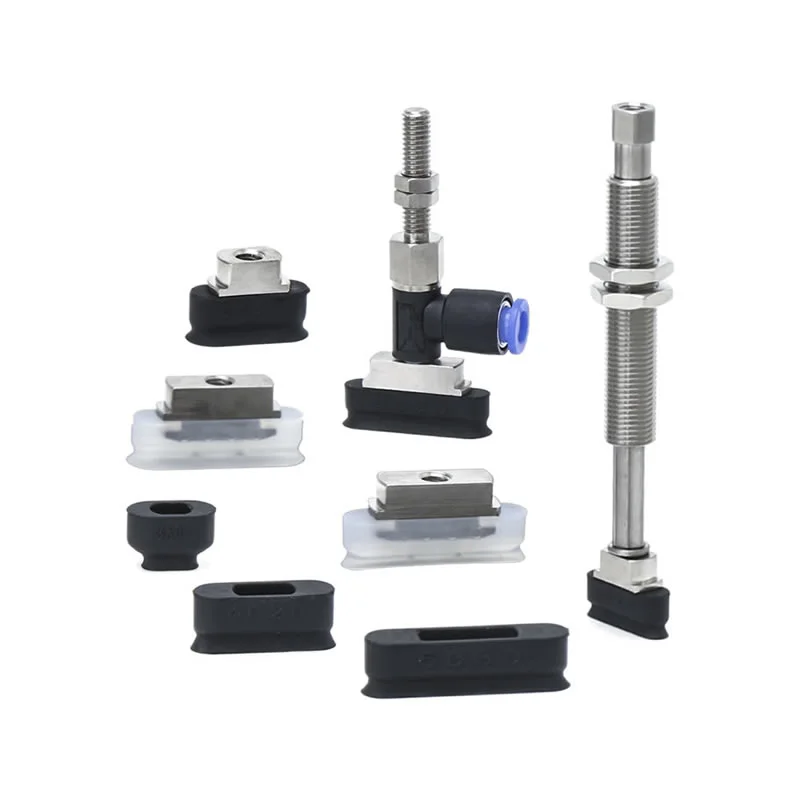

The Oval Vacuum Suction Cups ZP2 series is manufactured in multiple elastomers, each offering distinct resistance profiles. Understanding these differences is the first step toward a fail-safe specification.

For most oily environments—such as CNC chip conveyors or stamping press lines—Comma recommends FKM-grade Oval Vacuum Suction Cups ZP2 because they maintain lip flexibility and sealing force even after 500+ hours of continuous oil mist exposure. In contrast, NBR remains a cost-effective choice for intermittent oil splash and temperatures under 100°C.

Thermal Degradation: What Actually Fails?

High temperatures affect suction cups in three progressive stages:

1. Lip softening – reduces holding force on curved or textured surfaces.

2. Compression set – the cup fails to return to its original shape after vacuum release.

3. Cracking/ozone attack – surface micro-cracks lead to leakage and cycle-time delays.

Independent tests on Oval Vacuum Suction Cups ZP2 (FKM variant) show less than 8% compression set after 72 hours at 180°C, which is within ISO 2230 tolerance for dynamic gripping. The oval geometry itself offers a distinct advantage: the elongated lip distributes shear stress more evenly than round cups, delaying hot-spot fatigue.

Key data point: At 150°C with hydraulic oil contamination, Oval Vacuum Suction Cups ZP2 retain 92% of their initial vacuum level (‑85 kPa) over an 8‑hour shift, whereas standard round NBR cups drop to 67% within 2 hours.

Why Oily Surfaces Demand a Different Lip Design

Oil reduces friction and can dissolve certain elastomers. However, the Oval Vacuum Suction Cups ZP2 feature a double-lipped sealing ring and an internal support boss that prevents the cup from collapsing under vacuum when the surface is slick. This design ensures that the contact area remains stable, even when workpieces are coated with stamping oils or rust-preventive fluids.

Comma has successfully deployed these cups in battery module assembly lines where conductive cooling oils are present. The oval shape also aligns better with rectangular busbars and LED frames, reducing the number of cups needed per gripper—which lowers overall system cost and simplifies maintenance.

Practical Guidelines for High-Temperature/Oily Use

• Pre-heat conditioning: For FKM cups, run 3–5 dry cycles at operating temperature to stabilize cross-linking.

• Vacuum level adjustment: Reduce vacuum by 10–15% when handling oily parts to avoid lip inversion.

• Cleaning interval: Use mild detergent and ultrasonic cleaning every 200 operating hours for NBR; FKM requires less frequent cleaning.

• Storage: Keep spare Oval Vacuum Suction Cups ZP2 away from direct sunlight and ozone-generating motors.

FAQ – Common Questions About Oval Vacuum Suction Cups ZP2

Q1: Can I use the same Oval Vacuum Suction Cups ZP2 for both high-temperature and oily applications without changing material?

A1: No. While the mechanical housing and mounting thread are identical across all Oval Vacuum Suction Cups ZP2, the elastomer compound must be matched to your specific environment. For simultaneous high heat (≥150°C) and heavy oil exposure, only FKM (Viton) grade provides sufficient resistance. NBR will harden and crack within 50–100 cycles under these combined conditions, while silicone swells irreversibly in petroleum-based oils. Comma offers a material selection chart with every quotation to eliminate guesswork.

Q2: How do I know when my Oval Vacuum Suction Cups ZP2 have degraded due to heat or oil?

A2: Three visible and measurable signs indicate degradation: (a) a glossy or tacky surface finish—this signals oil absorption exceeding 10% weight gain; (b) a permanent flat spot on the lip after 30 minutes of rest, indicating compression set beyond 15%; and (c) a drop in holding force measured with a digital vacuum gauge—if the cup cannot maintain ‑80 kPa for 10 seconds on a smooth dry plate, replacement is due. Comma recommends logging these metrics weekly for critical stations.

Q3: Are Oval Vacuum Suction Cups ZP2 compatible with quick-change tooling for environments where oil and temperature vary by shift?

A3: Yes. The Oval Vacuum Suction Cups ZP2 share a standardized flange and O-ring mounting profile, making them interchangeable with most quick-change adapters from Comma and other major brands. This allows operators to swap between NBR (low-temp/oil) and FKM (high-temp/heavy-oil) cups in under 60 seconds without recalibrating the vacuum generator. However, always verify that the adapter’s sealing gasket is also rated for the same temperature range—Comma supplies matched gasket kits for this exact purpose.

Summary Comparison – Which Cup for Which Condition?

Final Verdict

Oval Vacuum Suction Cups ZP2 are fully capable of handling high-temperature and oily environments—provided the correct elastomer is selected and maintenance protocols are followed. Their oval footprint, standardized mounting, and multi-material availability make them a versatile choice for automotive, electronics, and heavy machinery applications. Comma has engineered additional reinforcement ribs in its custom ZP2 variants to further extend service life in extreme oil-spray chambers, giving engineers a reliable alternative to more expensive cartridge-style grippers.
