China Yatong SRL-Z300/600 High Speed Plastic and Rubber Mixer Machine

Product Description

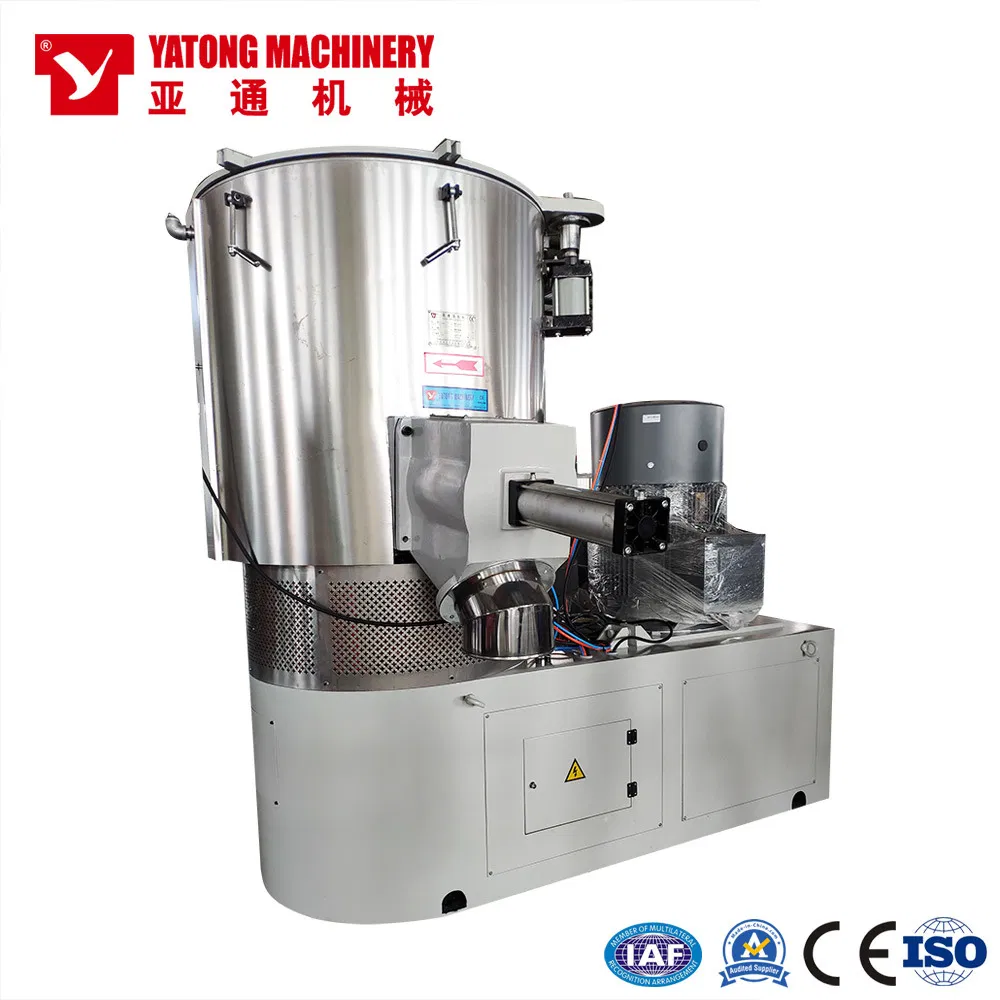

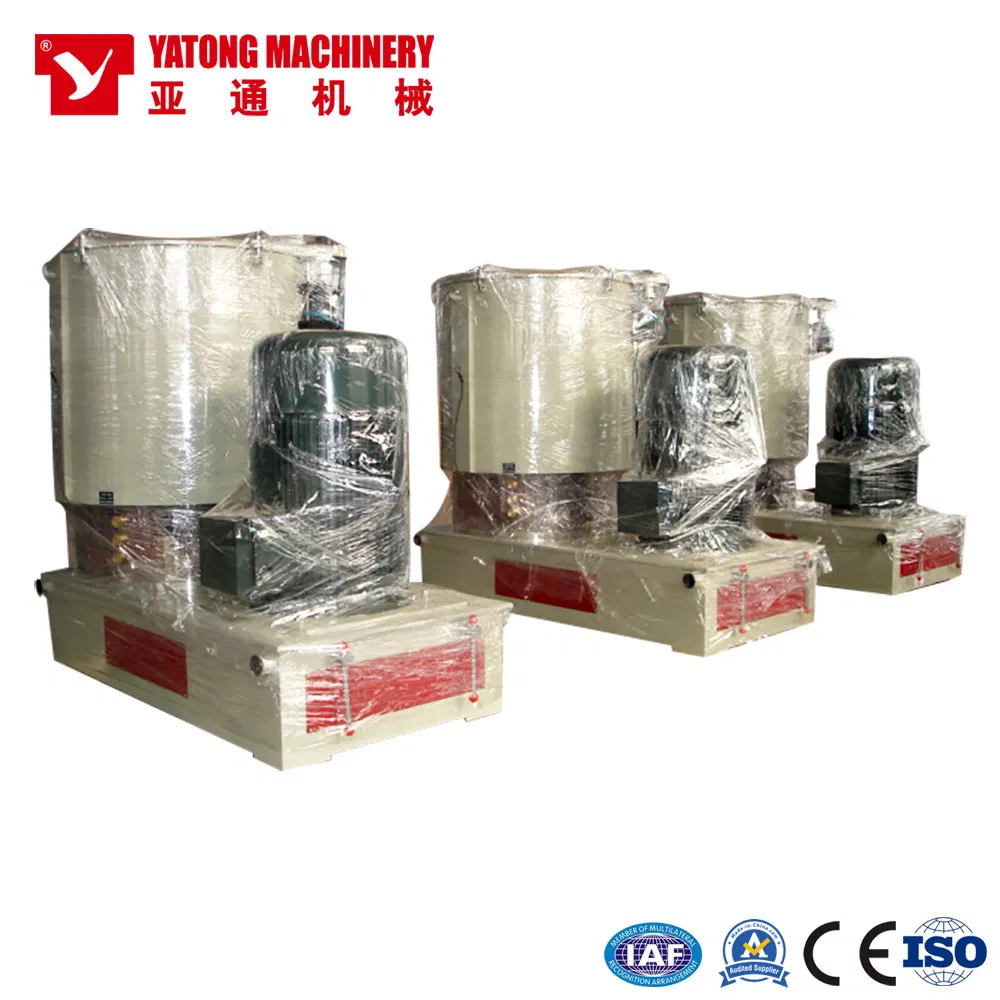

Yatong SRL-Z300/600 High Speed Plastic and Rubber Mixer Machine

SRL-Z series mixer unit is applicable for mixing, colouring and drying of various resin such as polyethylene, polypropylene, polyvinyl chloride etc and in the craft of engineering plastics such as ABS,polycarbonate etc before forming and processing as well as in the mixing of phenolic resin.

The unit combines heat mixing and cool mixing craft together. The materials after heat mixing can be got into cool mixer for cooling automatically, exhausts remaining gases and prevent agglomeration.
This unit is developed by importing and absorbing advanced foreign technology. By adopting PLC control, if features high automatic level, good mixing result. Heat mixing has such functions as self-friction, and electric heating. The vane has passed the test of dynamic and static equilibrium. The cover adopts special tech of our company, also equipped with pulse dust catching device. Cooling mixer absorbed slowdown tech from overseas, adopts direct slowdown device, overcomes the deadly weakness causing by use of retarder, that makes it running smoothly even more. This machine has come up to the same kind of product level in the world. That is an ideal equipment for producing plates, pipes and special-shaped materials etc.

Specification :

Model	SRL-Z 100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total cubage(L)	100/200	200/500	300/600	500/1000	800/1600
Effective cubage(L)	65/130	150/320	225/380	375/650	600/1050
Mixed speed(rpm)	650/1300/80	475/950/80	475/950/80	430/860/60	370/40/50
Heating/cooling manner	Electric heating self-friction/water cooling
Mixed time(min/batch)	8-12	8-12	8-12	8-12	8-15
Motor power(kw)	14/22/7.5	30/42/11	40/55/11	47/67/15	60/90/22
Dimension(mm)	195016001800	458022402470	480026402480	460030004050	517032004480
Weight(kg)	2200	3400	3600	4800	6200

REMARK : if the equipment or technological parameters have some change , we shall not make a notice separately .

Features :
a) Easy to opeating the machine
b) save power and need less worker
c) it is convenient to maintain the machine

SRL-Z Series mixer unit / cooling and hoting mixer machine / resin mixing machine

1. The machine inspection before delivery in YATONG MACHINERY When you come to our factory .Check everything is it ok .

2. Free of charge of some necessary spare part.
3. One year guaranteeof all the machines running , if any problem ,we will bear. Of course if the machines after one year ,you also can ask for the technical guidance.
4. 1-2 technical engineers will be come to your factory to installation and commissioningthe machines and train your workers if you need.
5. We accept 30% TT down payment, 70% TT or LC at sight before delivery.

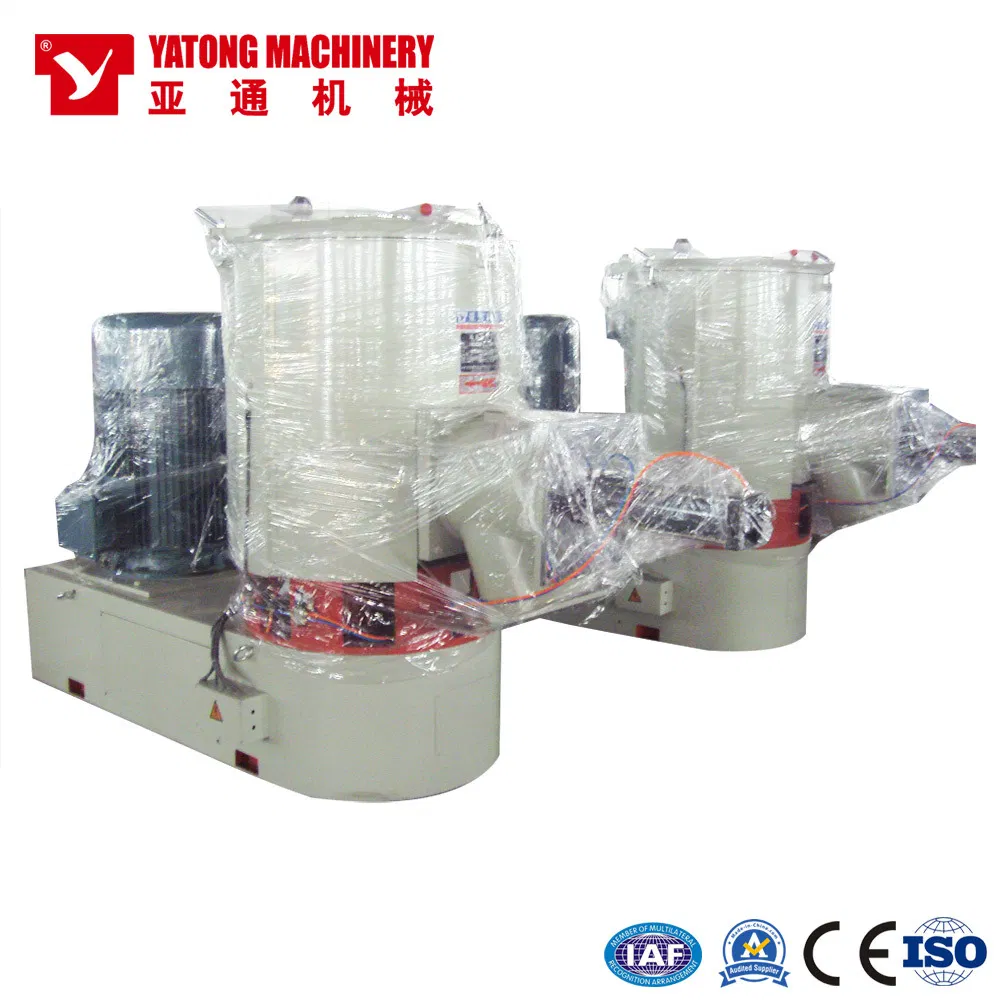

6. Film packing or plywood packing suit for sea shipping.
