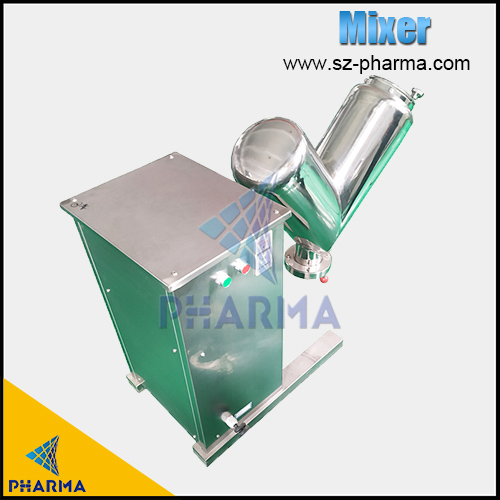

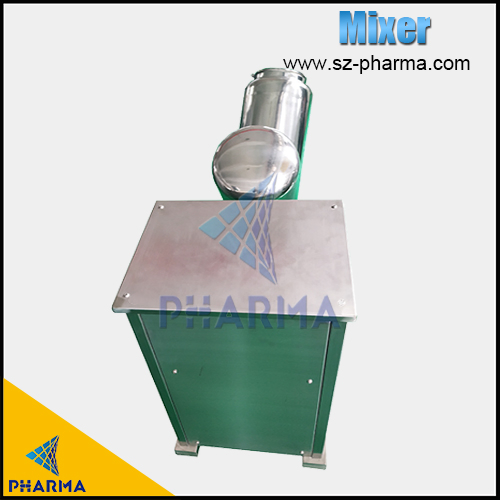

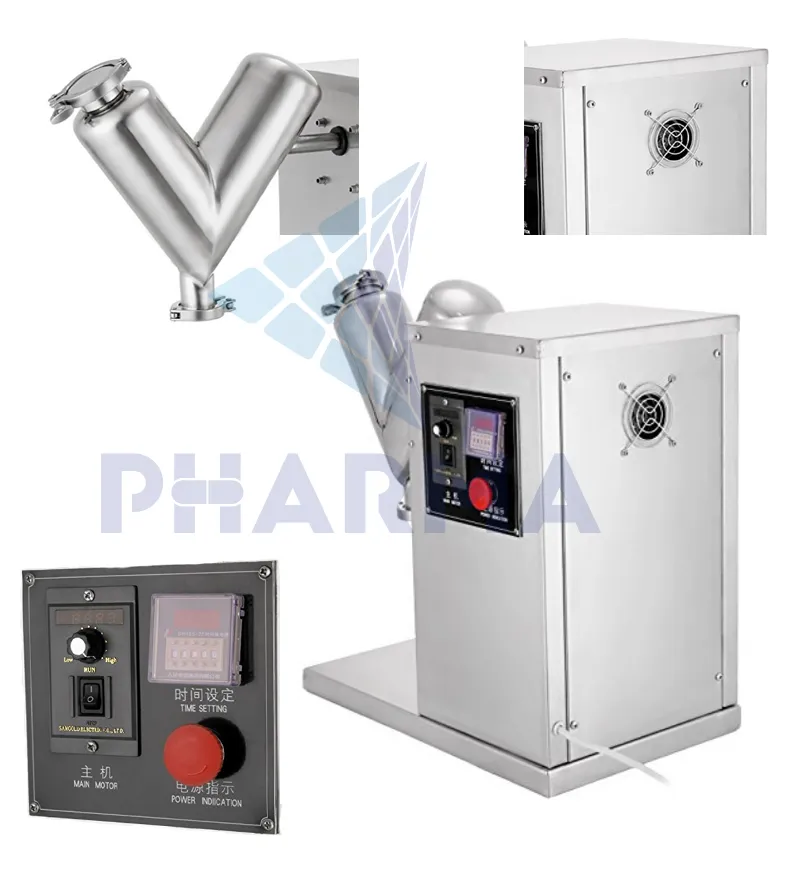

Vh -8 Shape Powder Mixer

Product Description

Model	Barrel volume	Optimum volume	Motor power	Mixing speed	Outline Dim.	Optimum loading quantity
VH-5	5L	2L	0.55kw	24r/min	560×270×560mm	1.4kg
VH-8	8L	3.2L	0.55kw	24r/min	660×300×630mm	2.24kg
VH-10	10L	4L	0.55kw	24r/min	900×380×900mm	3.2kg
VH-14	14L	5.6L	0.55kw	20 r/min	925340820mm	3.92kg
VH-20	20L	8 L	0.55kw	20 r/min	950×340×830mm	5.6kg
VH-30	30L	12L	0.55kw	20 r/min	986×340×855mm	8.4kg

Application:

V Shape Lab Mini Powder Mixer are the small V mixing machine for laboratory application. It is used for the drying blending of
free flowing solid (powder, granule, etc.) in Pharmaceutical Industry, Foodstuff Industry, Spice Industry, Chemical Industry, etc.

Main Features:

1) Suitable for bulk densities up to 0.6x103kg/m3

2) MOC SS304; supporting frame by Carbon Steel

3) Mirror polished for both interior and exterior

4) Hinged charging port

5) Manually-operated butterfly discharge valve

6) Fully integrated motors and controls
