Vertical Plastic PP LDPE HDPE ABS Pet Pellets Granules Drying Mixer

Product Description

Vertical Plastic PP LDPE HDPE ABS Pet Pellets Granules Drying Mixer

Features of Mixer Unit
1. Mixed materials are made by negative pressure mixed principle
2. The electrical instruments are all well-known imported appliances with PLC programmable control
3. High degree of automation and speed mixing

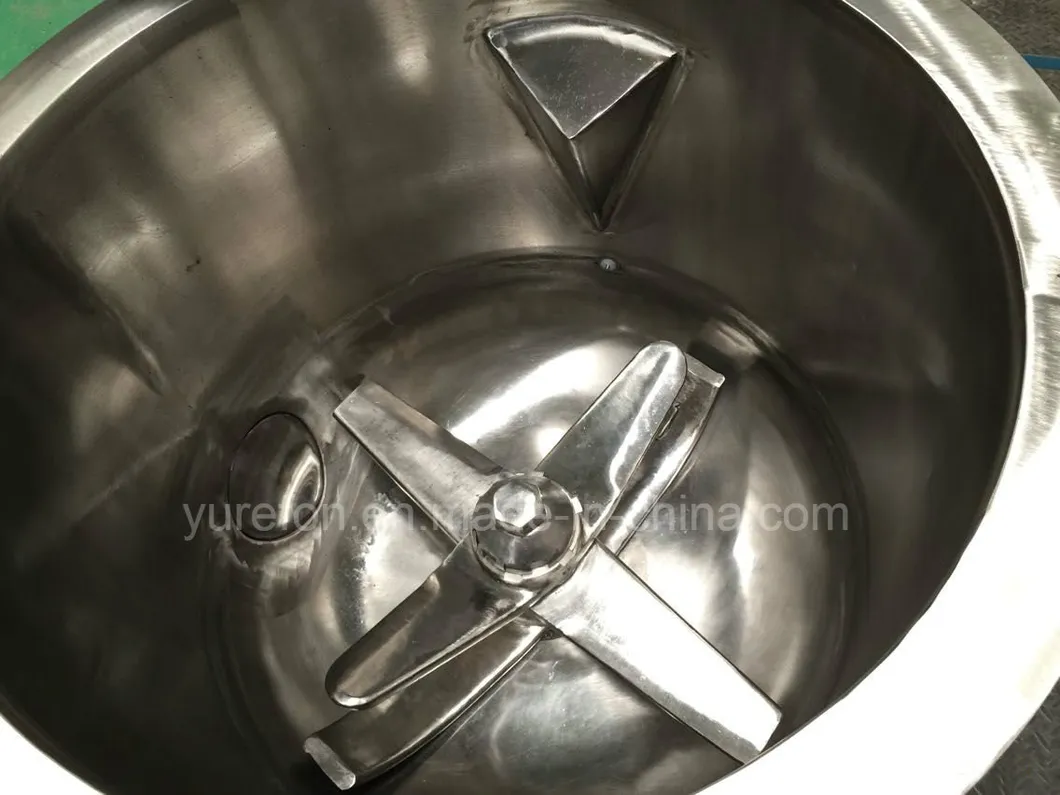

4. The blade was made by stainless steel pressure and passed the static and dynamic balance test

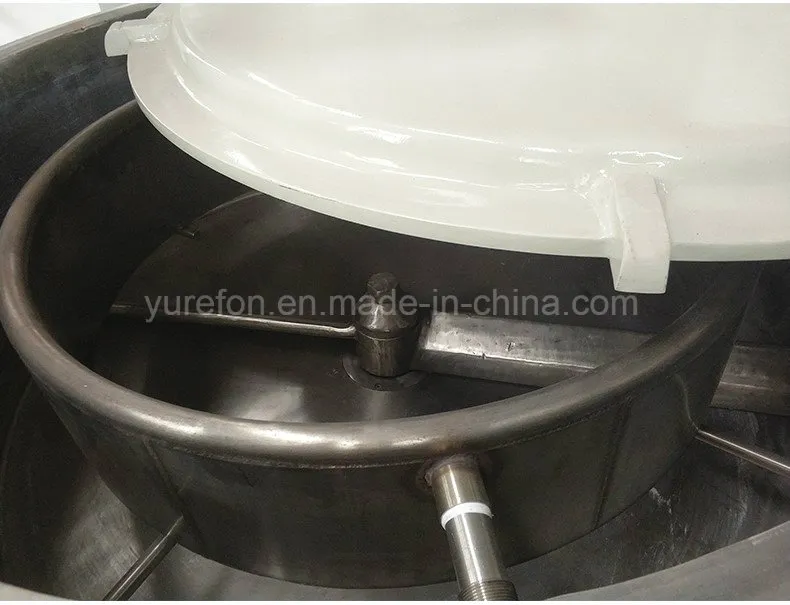

5. Especially the coolant blade ued abroad advaned spiral mixing structure, the whole container has no dead angle, cooling speed and discharging clean.
6. Large volume
7. The PVC mixer is for mixing PVC powder, CACO3 and other addictives. This equipment is widely used in PVC pipe and profile production.

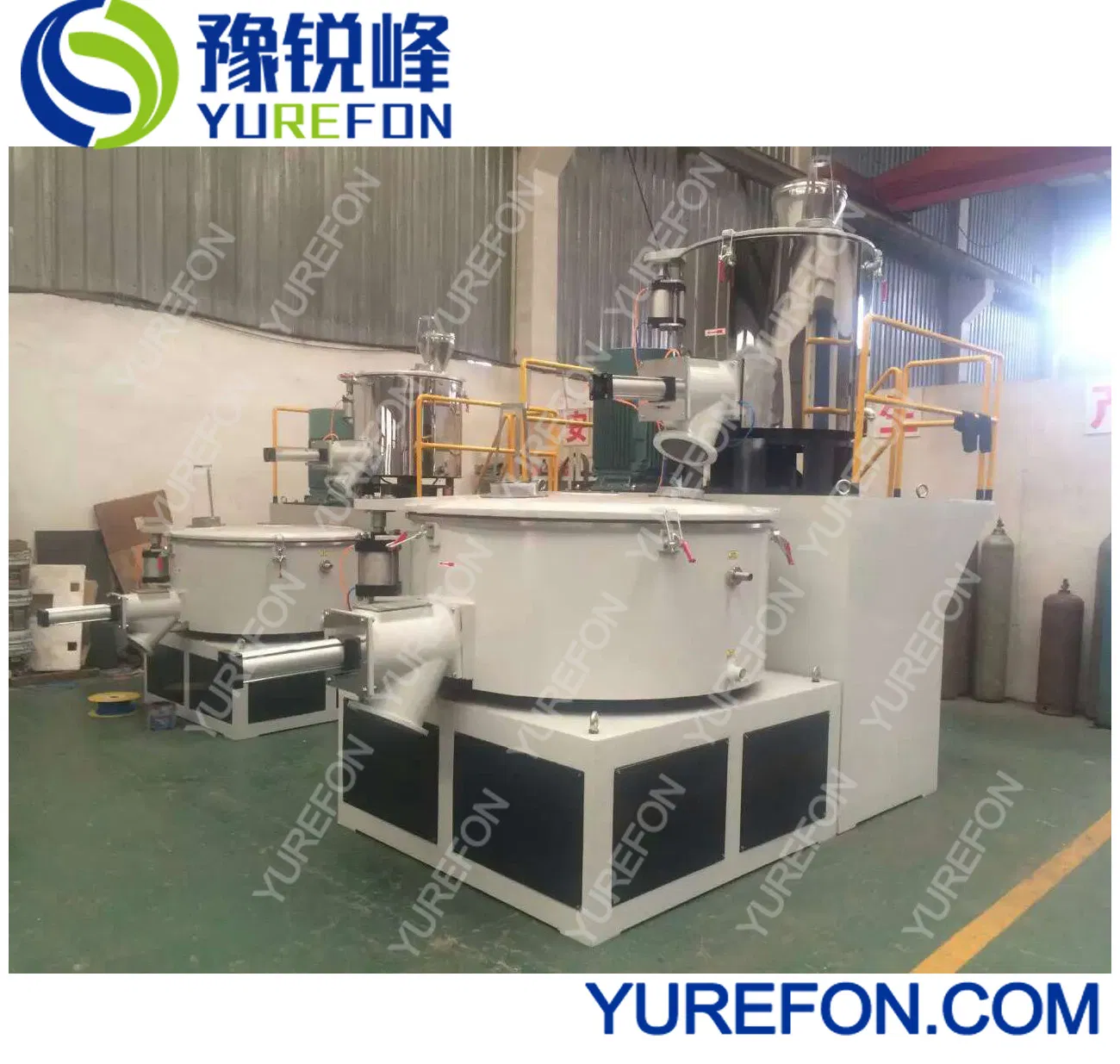

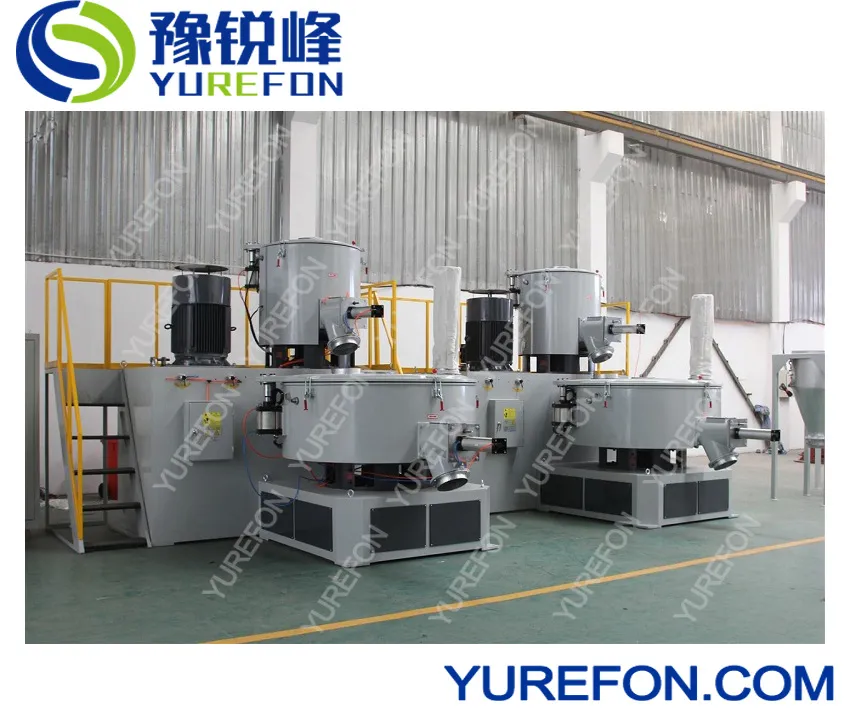

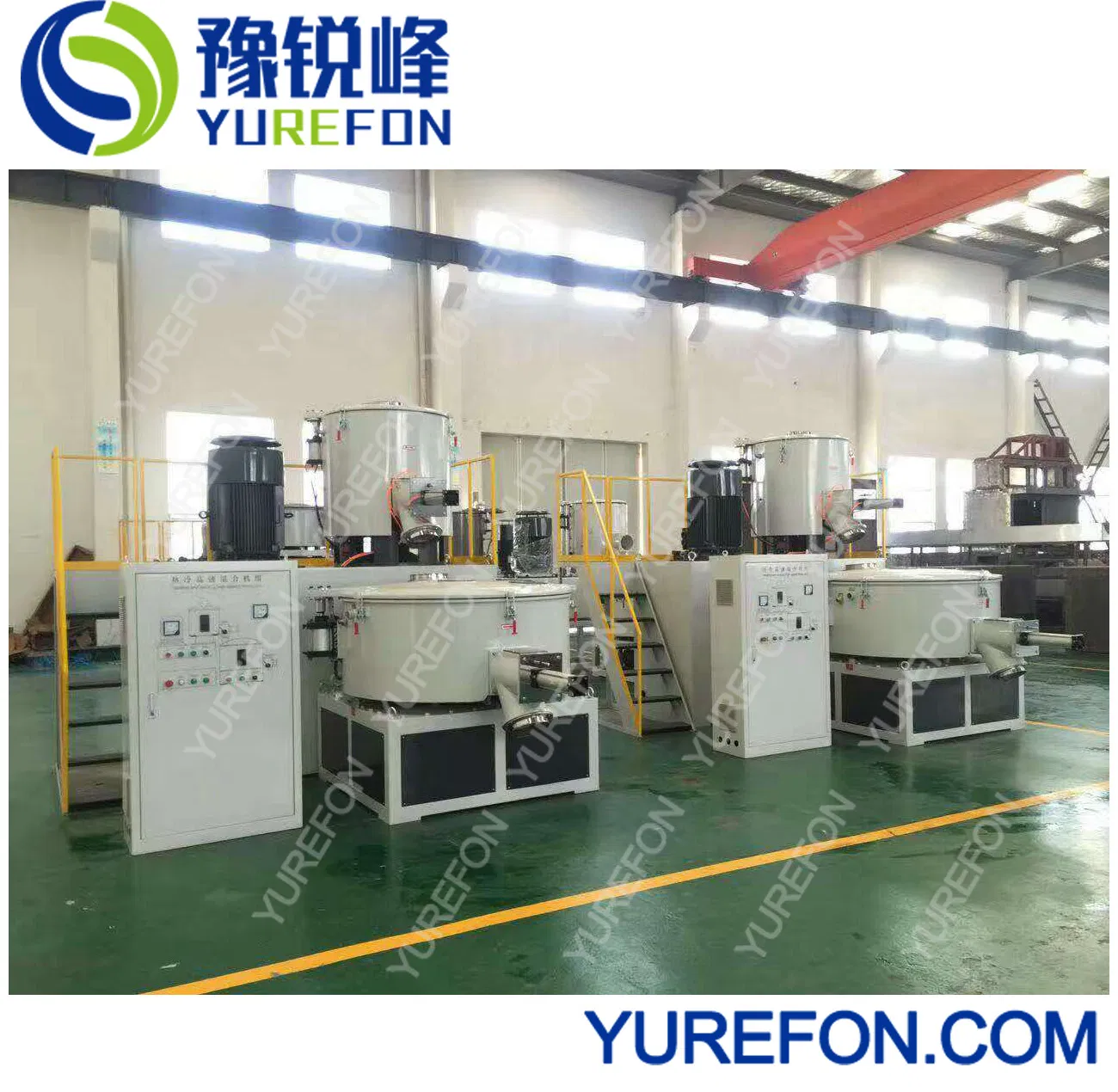

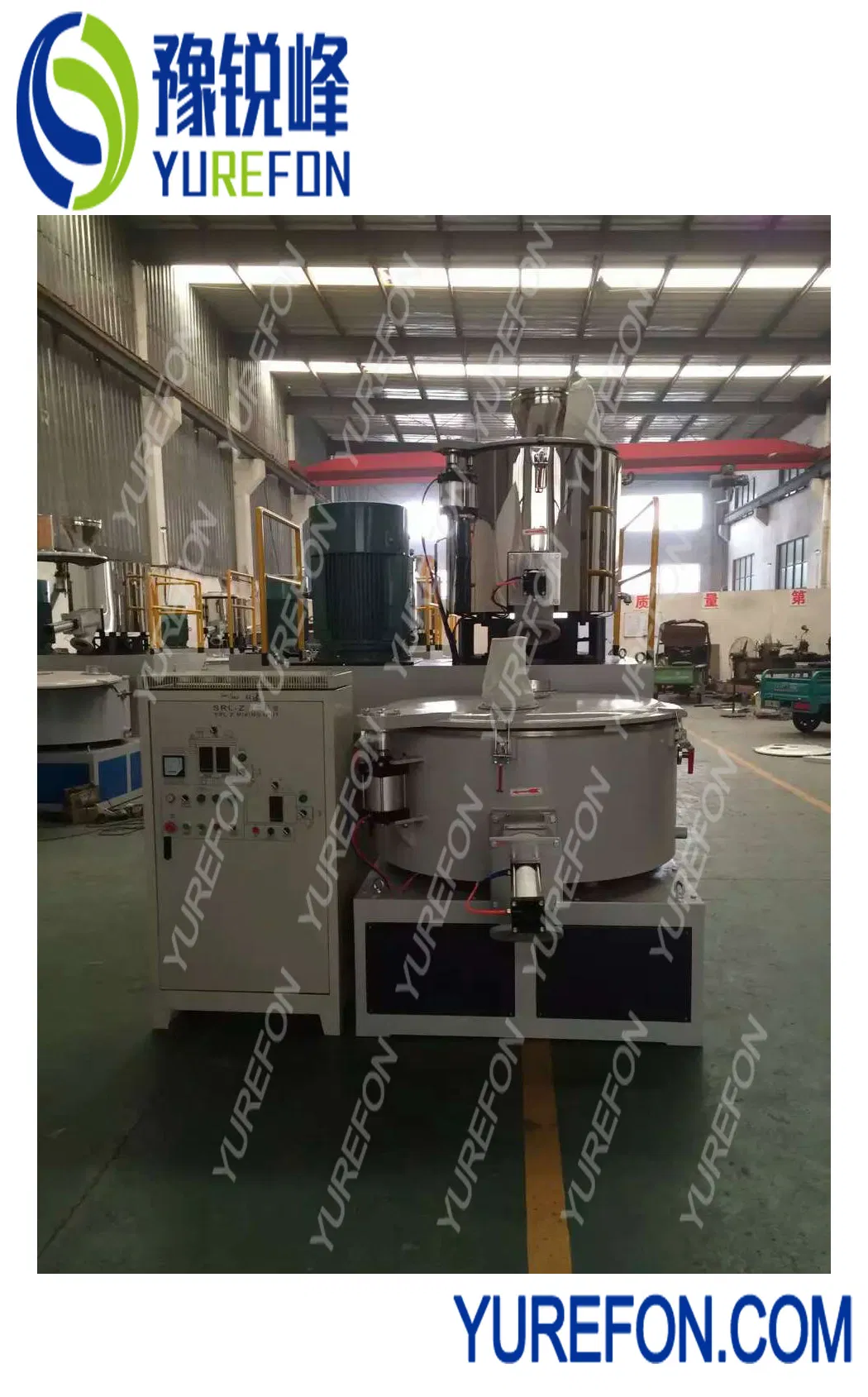

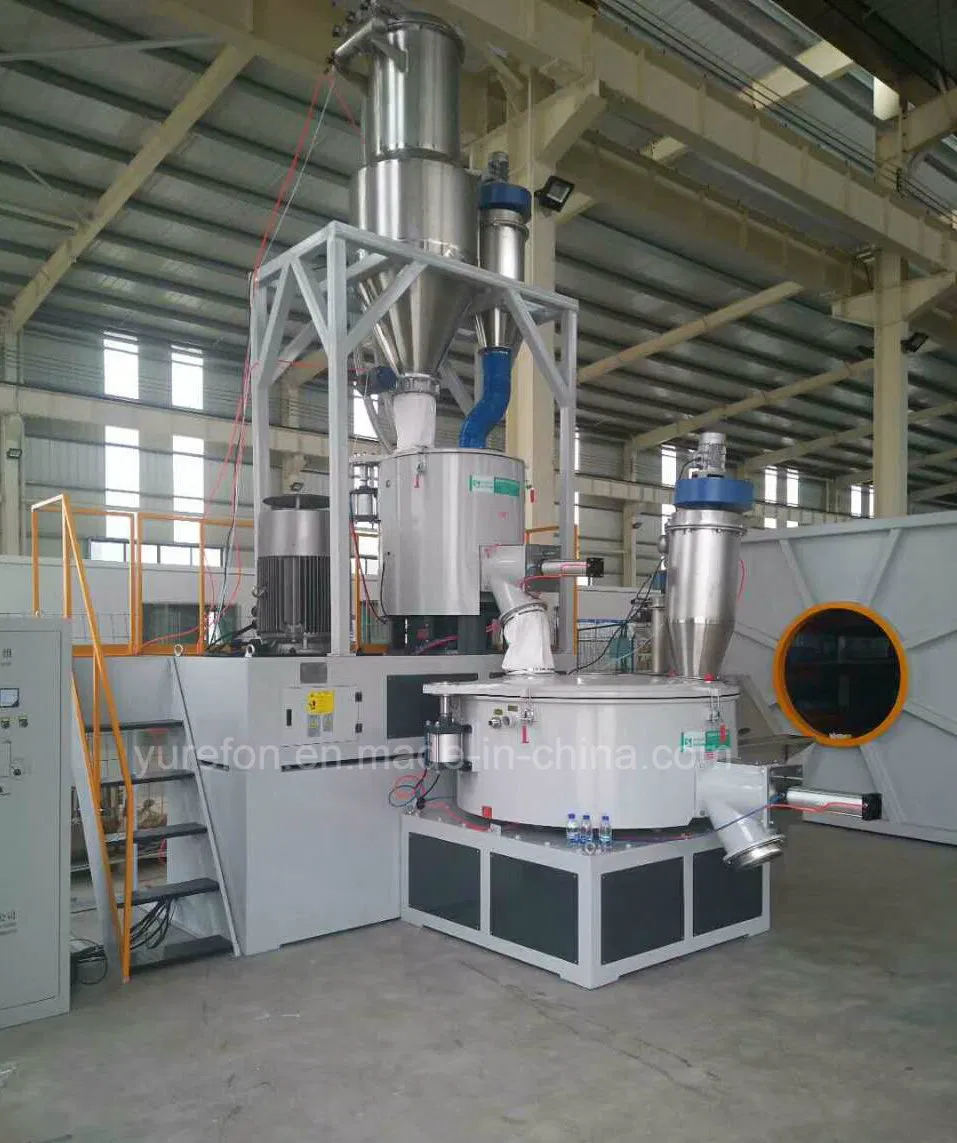

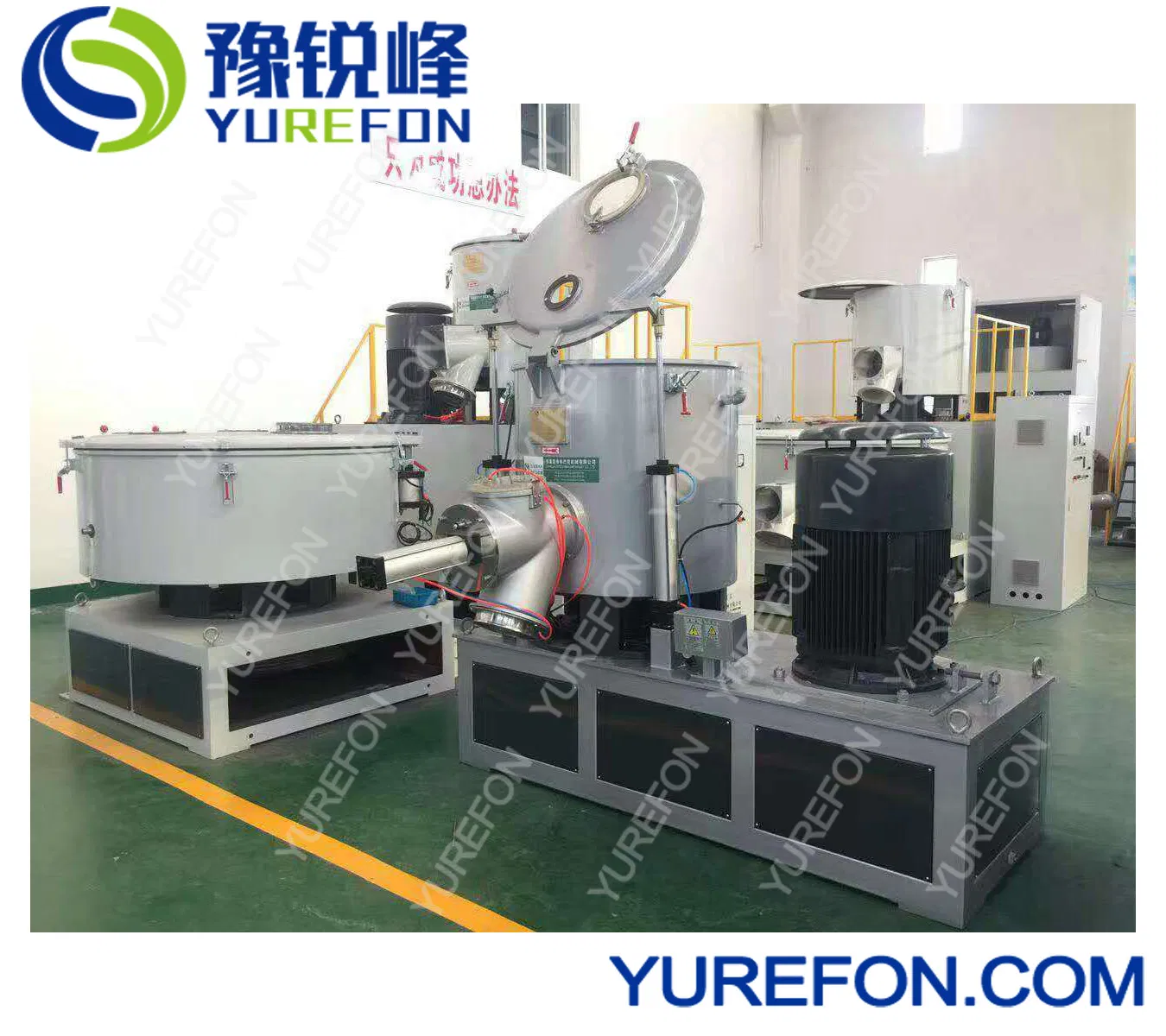

8. The PVC mixer is composed of high speed mixer (hot mixer), cooling mixer and control cabinet.

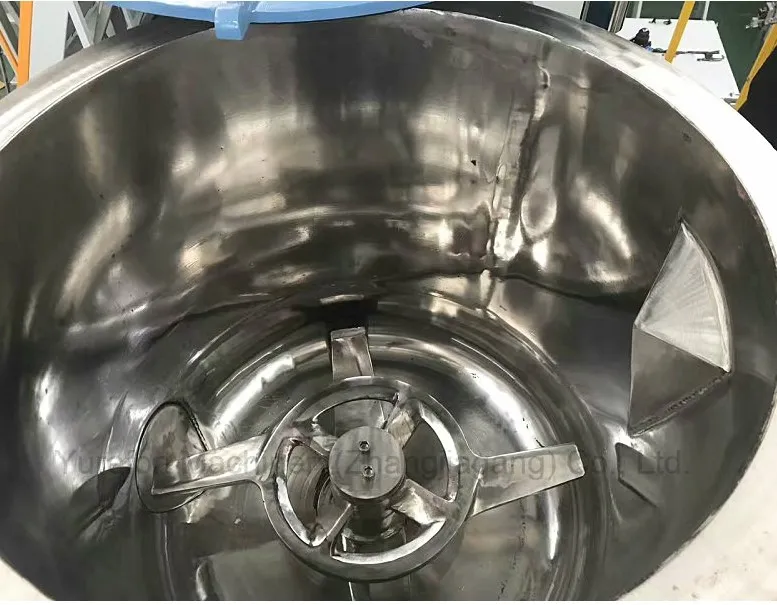

9. We use 6-8mm stainless steel SUS304 for the internal wall construction. It will guarantee the mixer could use for long time under the high friction.

Technical Parameters

Model	RF-SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total volume (L)	100/200	200/500	300/600	500/1000	800/1600
Effective Volume (L)	65/130	150/320	200/360	375/650	600/1024
Rotating Speed (RPM)	650/1300-180	475/950-87	475/950-87	430/860-60	357/714-50
Mixing time (Min.)	8-10	8-10	8-12	8-10	8-12
Motor power (KW)	14/22-7.5	30/42/11	40/55/11	55/75/15	83/110/22
Overall dimension(mm)	250020002200	458022402470	480026402480	560030003100	623042304480
Weight(kg)	2500	3600	4500	5800	8300
