Vertical Industrial Mixer for Plastic Products
Product DescriptionFunction and StructureSRL-Z series mixer units are widely used in mixing,drying,coloring for all kinds of resin such as PVC,PP,PE.They can also be applied in dryness of ABS,polycarbonate,and mixing hydroxybenzene,Alde Hyde resin.This unit is composed of one hot mixing pot and one ......
Send Inquiry
Product Description
Product Description
⇒Function and Structure

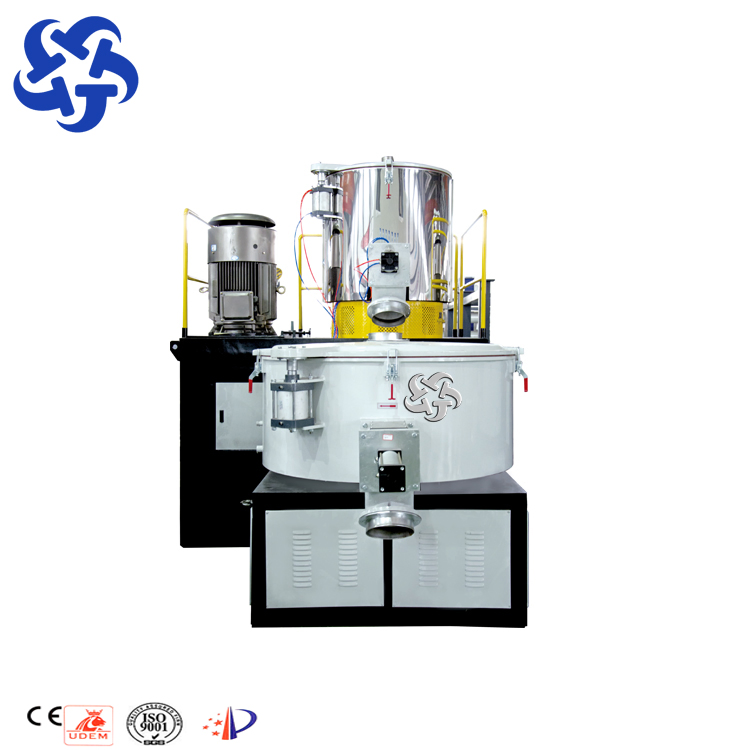

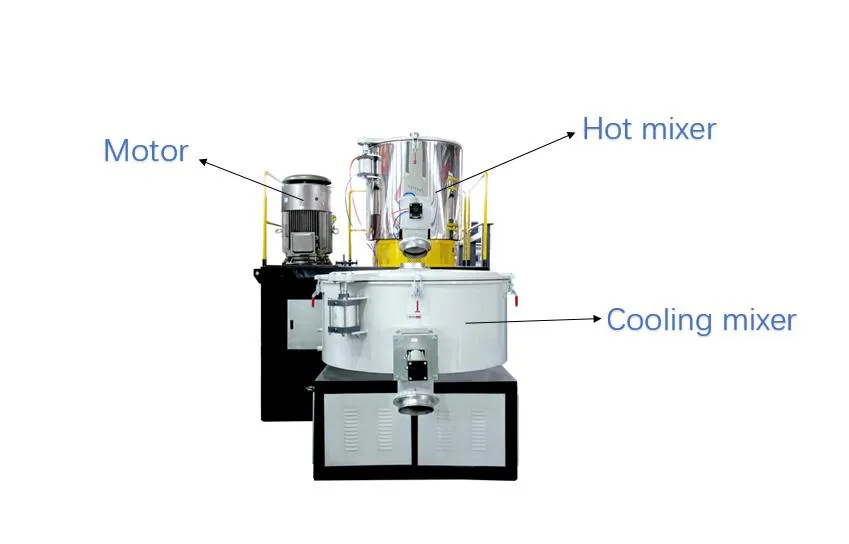

SRL-Z series mixer units are widely used in mixing,drying,coloring for all kinds of resin such as PVC,PP,PE.They can also be applied in dryness of ABS,polycarbonate,and mixing hydroxybenzene,Alde Hyde resin.This unit is composed of one hot mixing pot and one cooling pot,the materials from hot mixer will be filled into the cooling mixer automatically,so it and eliminate humidity,and protect from agglomeration.
⇒Specification
SRL-Z | Heat/cool | Heat/cool | Heat/cool | Heat/cool | Heat/cool |
Total volume(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
Effective capacity(L) | 65/130 | 150/320 | 225/380 | 375/650 | 600/1050 |
Stirring speed(rpm) | 650/1300/200 | 475/950/130 | 475/950/100 | 430/860/60 | 370/740/50 |
Mixing time(m) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
Motor power(kw) | 14/22/7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
Output(kg/pot) | 50 | 90 | 120 | 180 | 300 |

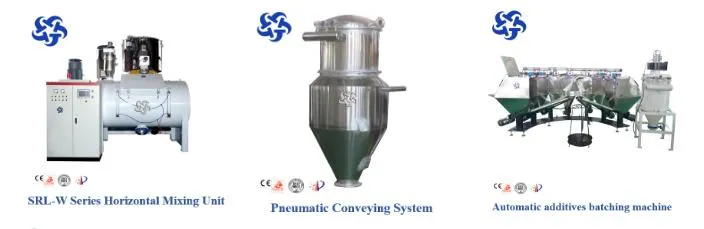

Hot-selling Item

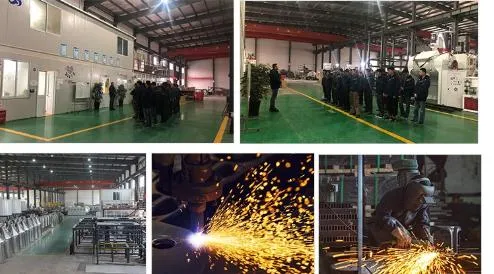

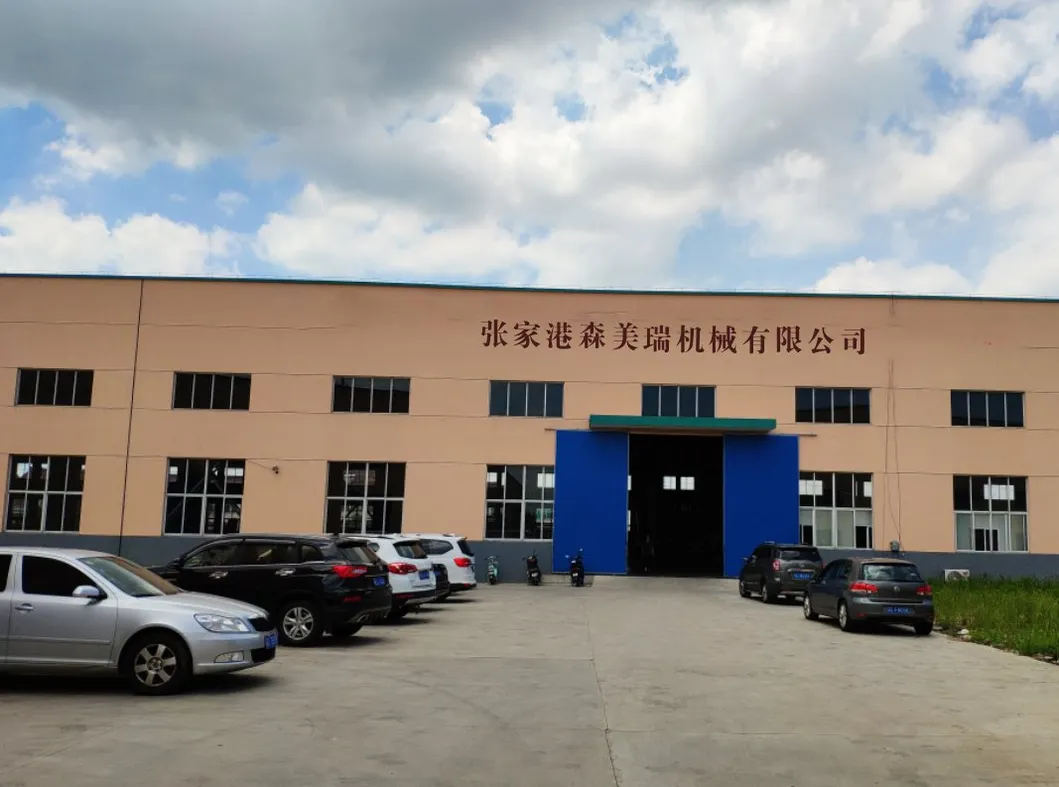

Our Company
Zhangjiagang samsara machinery co.,Itd.is a professional designer and manufacturer of materials' handling system.We provide a turnkey solution for energy-saving and environmentally-friendly materials' conveying,automatic weighing and batching,mixing,storage and computer control systems.The main products are:large raw material storage silos,feeding station,tubular chain conveyor,pneumatic conveying system,screw conveying system,automatic weighing system,mixing unit,industry dust collectors,and crushing machines,mills and a variety of auxiliary equipment.
Packaging&Shipping
FAQ
Q:All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price is reasonable with stable machine quality .
Q: Are you trading company or manufacturer?
A: We are factory.We have the technical production team,and the workers are all very experienced.
Our services
After-sales service:
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
Guarantee of quality :
We guarantee the goods are made of best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in the contract. Quality guarantee period is within 12 months from B/L date.
Installation, Debugging and Training:
We will dispatch our engineers to instruct the installation and debugging. Cost will be beared on buyer's side (round way flight tickets, accommodation fees and salary in buyer country). The buyer should provide his site assistance for the installation and debugging. The engineers will also train your workers for about 3 days.
