Vb300 Blender & Blending Machine with Intensifier Bar & Forced Stirring

Product Description

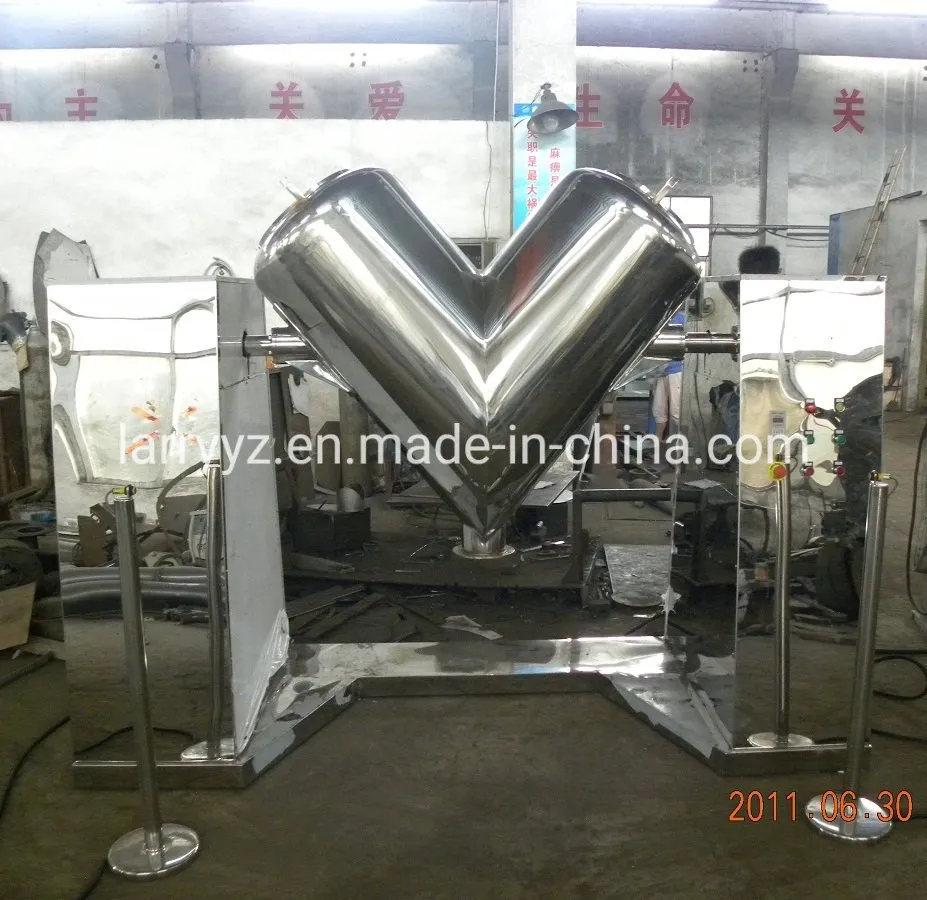

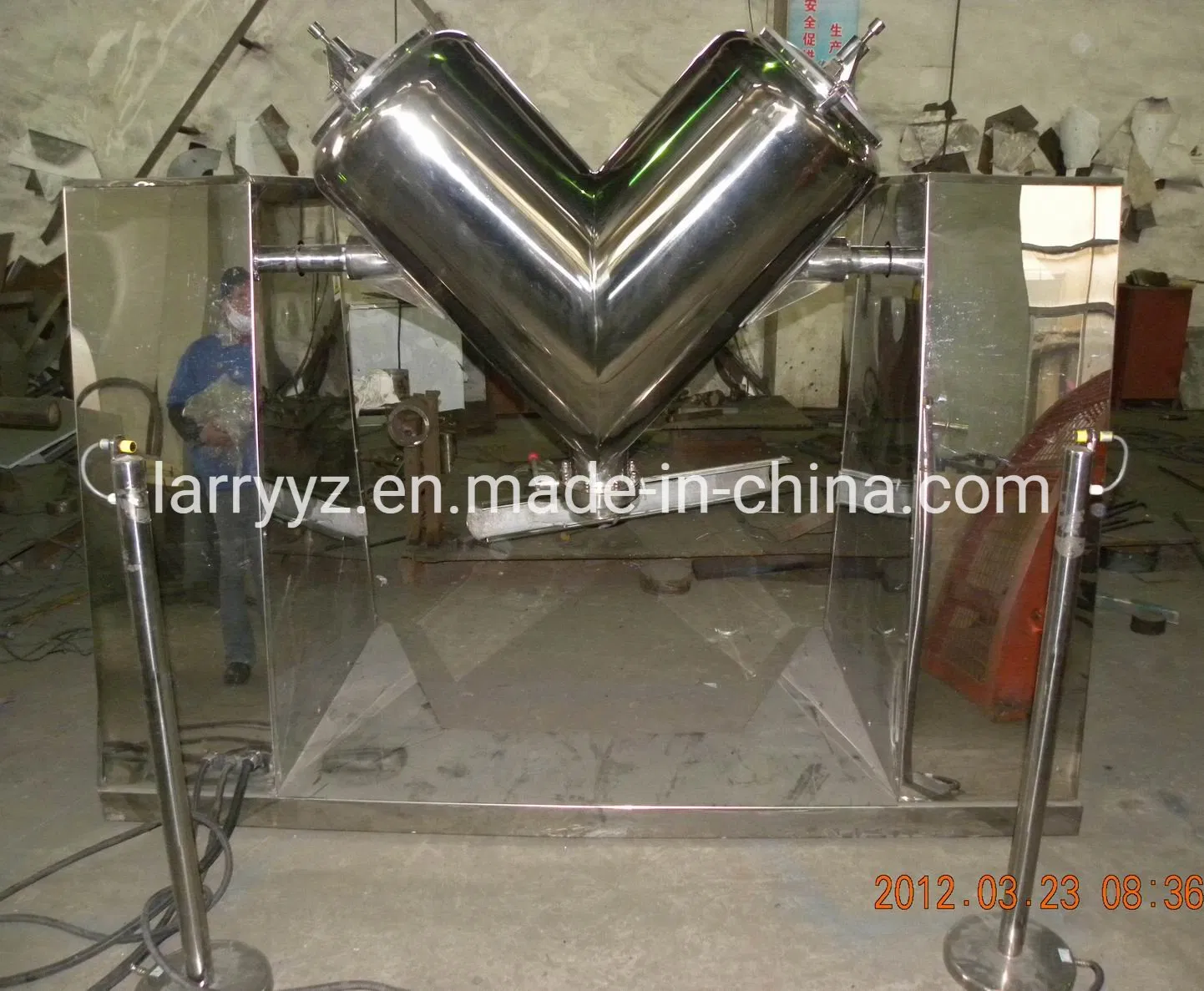

VB300 Blender & Blending Machine with intensifier bar & forced stirring

Features:
The forced stirring mixer is designed on the basis of absorbing foreign high technology. This machine can mix fine powder, caked or more two powder raw material with moisture. Particularly it can also mix raw material that need to be mixed with small amount of additive.
Technical parameters:

Type	Barrel Capacity (L)	Effective Capacity (L)	Effective Capacity (Cubic feet)	Max Feeding Volume coefficient	Max Feed weight (KG)	Intensify bar's mixing speed	Stirring speed(rpm)	Mixing time (min/batch)	Motor Power (kw)	Overall size (mm)	weight
VB-30	30	18	0.64	0.6	12	500	12	6-8	0.75+0.37=1.12	12004001100	80
VB-50	50	30	1.06	0.6	21	500	12	6-8	1.1+0.55=1.65	15005001260	120
VB-100	100	60	2.12	0.6	42	500	12	6-8	1.1+1.1=2.2	19008501750	320
VB-180	180	108	3.82	0.6	76	500	12	6-8	1.1+1.1=2.2	21008501750	420
VB-300	300	180	6.36	0.6	125	500	12	6-10	1.5+1.1=2.6	23009501900	550
VB-400	400	240	8.48	0.6	170	500	12	6-10	2.2+1.1=3.3	24009501950	650
VB-500	500	300	10.6	0.6	210	500	12	6-10	2.2+2.2=4.4	260010502100	800
VB-1000	1000	600	21.2	0.6	420	500	12	8-15	3+4=7	280014502700	1300
VB-1500	1500	900	31.8	0.6	630	500	12	8-15	5.5+4=9.5	319016003100	1600
VB-2000	2000	1200	42.4	0.6	840	500	12	8-15	7.5+4=11.5	380019003310	2000
