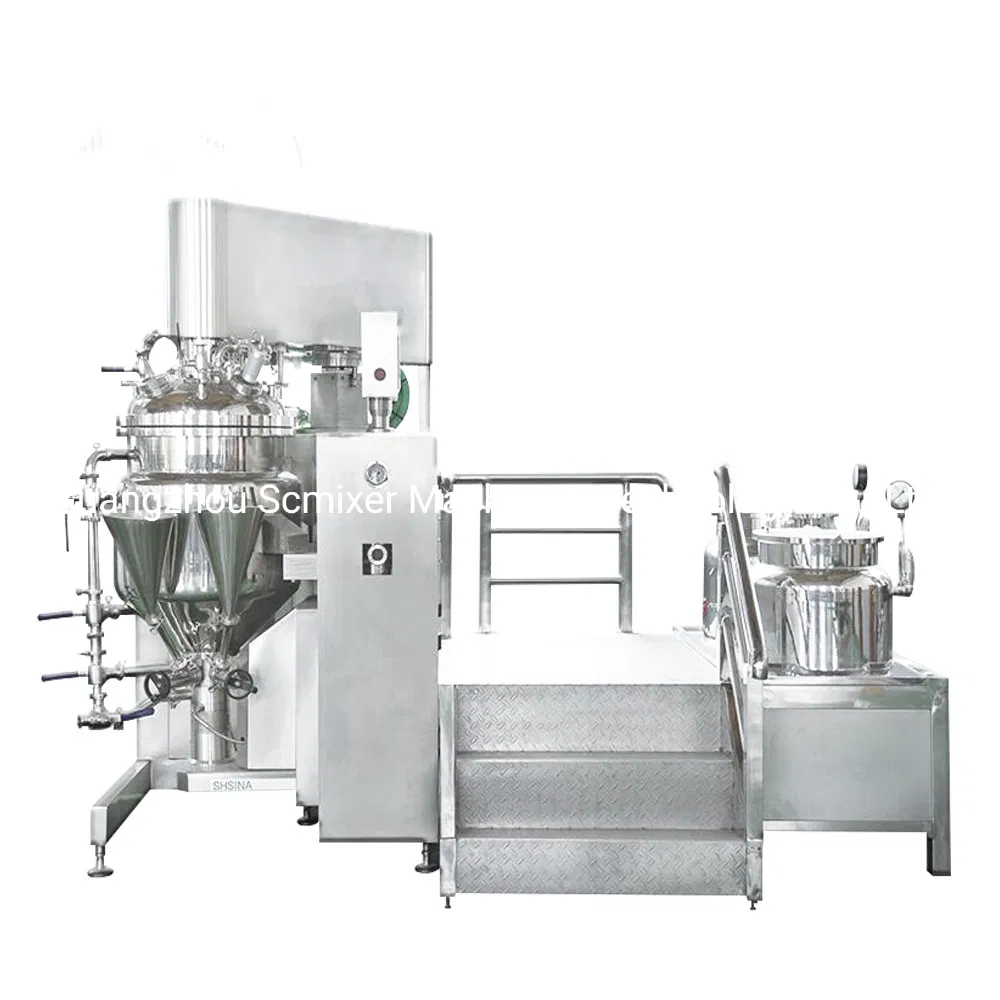

Vacuum Homogeneous Emulsifying Machine
100L Lotion cream vacuum emulsifying mixer machine Products DescriptionVacuum homogeneous emulsifying machine (top homogenizer) is an ideal option to produce highgrade skin care products, pharmacy ointment, and many other kinds of creams which need to be very soft and smooth. It has the functions ......
Send Inquiry
Product Description
Vacuum homogeneous emulsifying machine (top homogenizer) is an ideal option to produce highgrade skin care products, pharmacy ointment, and many other kinds of creams which need to be very soft and smooth. It has the functions of heating, mixing, scraping, rotating at different speeds and vacuum supply.
It has a very wide application from cosmetics (skin cream, hair gel, lotion etc) and food (jam, chocolate, sauces etc) to pharmacy (ointment, syrup, paste) and chemicals(painting, adhesives, detergents).
.
Principle Feature
1.With hydraulic lifting system, free lifting pan cover and inverted pan reset.
2.The mixing system adopts the advanced three heavy mixer variable frequency speed regulation, which can meet the production of different process requirements.
3.The vacuum can make the material to achieve the aseptic requirements, and the use of vacuum suction, which can meet the different requirements of the production process.
4.The heating method mainly include electric or steam heating for customer's choice
Technical parameter
| Type | Workingcapacity | Homogenizer | Agitator | Vacuum pump | Heating power (KW) | ||||
| KW | r/min | KW | r/min | KW | Limit vacuum | Electrical heating | Steam heating | ||
| SCM-VA-100L | 100L | 4 | 0-3600 | 1.5 | 0~63 | 1.5 | -0.09 | 30 | 12 |
| SCM-VA-200L | 200L | 5.5 | 0-3600 | 2.2 | 0~63 | 2.2 | -0.09 | 45 | 16 |
| SCM-VA-300L | 300L | 7.5 | 0-3600 | 2.2 | 0~63 | 2.2 | -0.09 | 48 | 18 |
| SCM-VA-500L | 500L | 11 | 0-3600 | 4 | 0~63 | 3.85 | -0.09 | 60 | 24 |
| SCM-VA-1000L | 1000L | 15 | 0-3300 | 7.5 | 0~52 | 5.5 | -0.09 | 72 | 30 |
| SCM-VA-2000L | 2000L | 18.5 | 0-3300 | 11 | 0~45 | 7.5 | -0.09 | / | 49 |
| SCM-VA-3000L | 3000L | 22 | 0-3300 | 15 | 0~45 | 7.5 | -0.09 | / | 66 |
| SCM-VA-5000L | 5000L | 22 | 0-3300 | 18.5 | 0~38 | 11 | -0.09 | / | 77 |
Application field
Warmly welcome to vist our company and machines .Welcome to learn more information about machines (picture ,video and specification ).(Turn-key project )
Toothpaste production line :
Our Service
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
Company Information
We are a professional manufacturer of cosmetic,chemical& pharmaceutical machinery and equipment more than 20 years .Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment,separation equipment, storage tank etc.
3> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
Warmly welcome to contact with us (pictures ,operation video ,operation book etc )

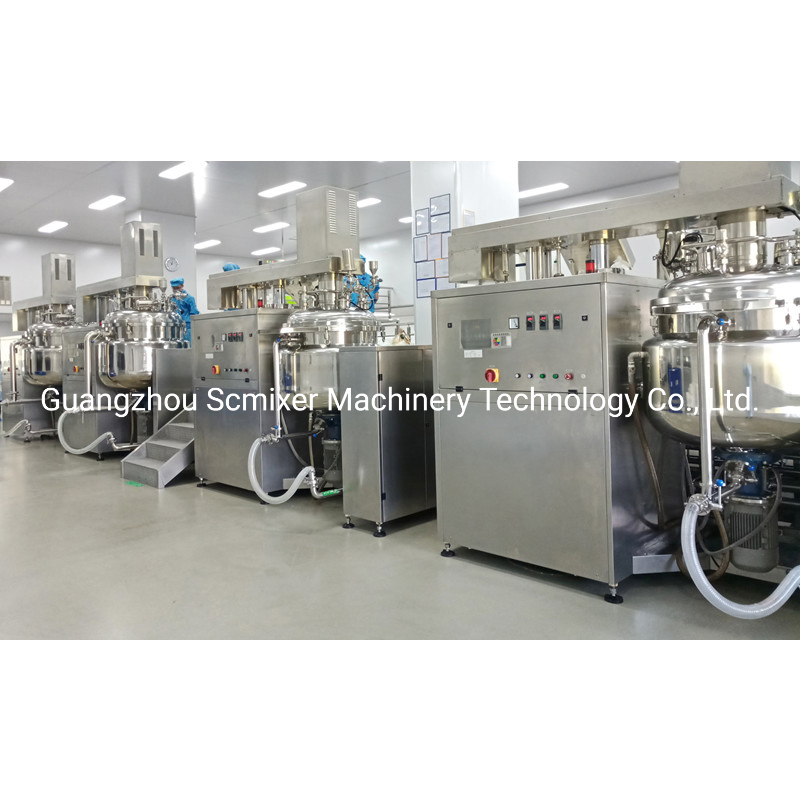

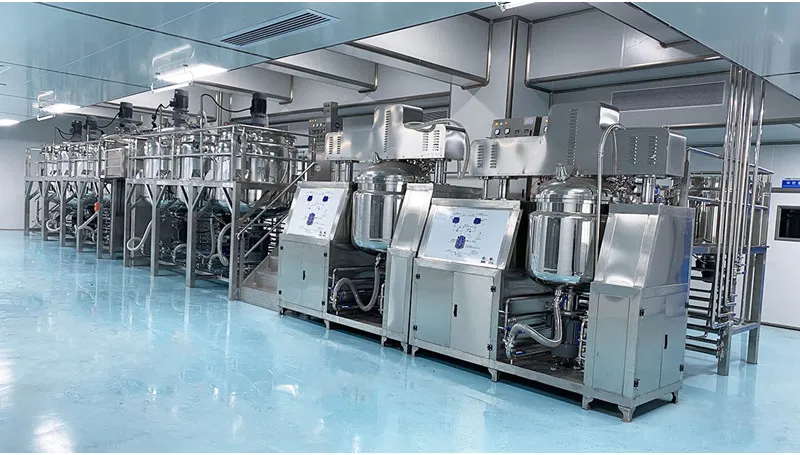

Customer factory

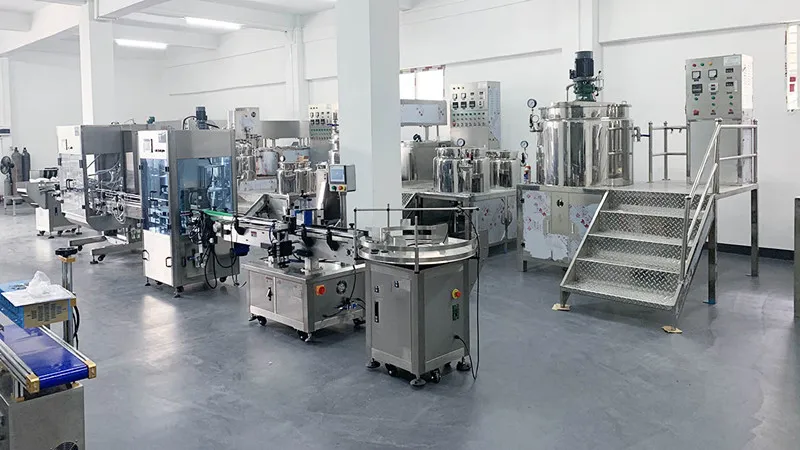

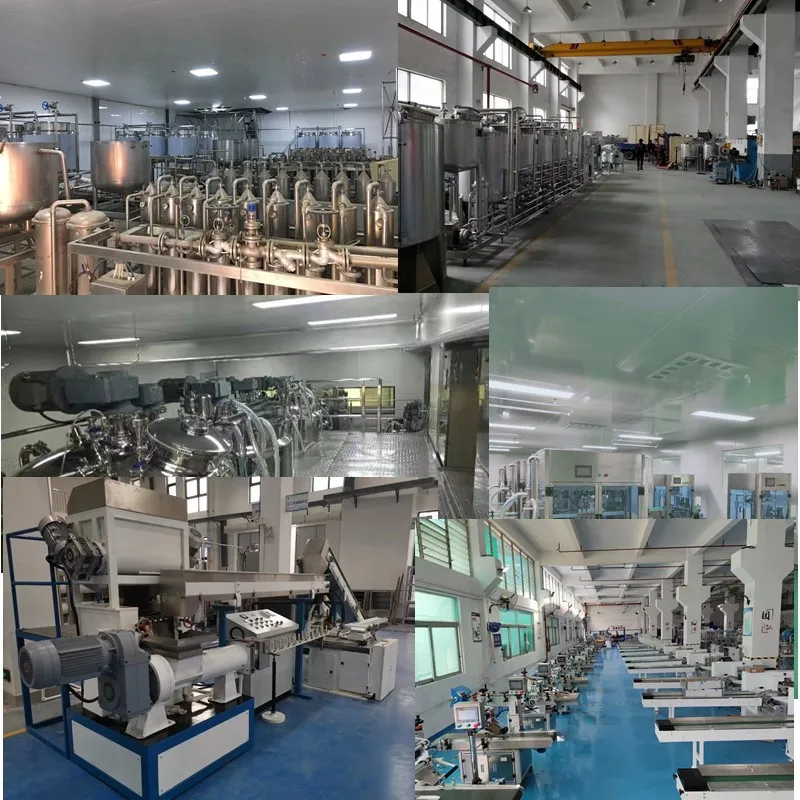

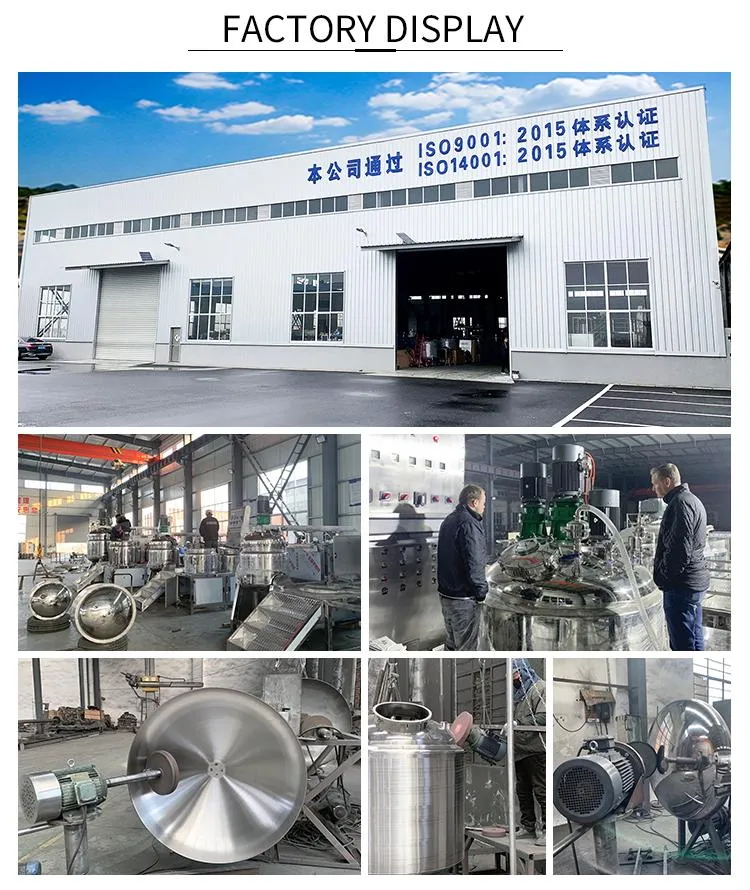

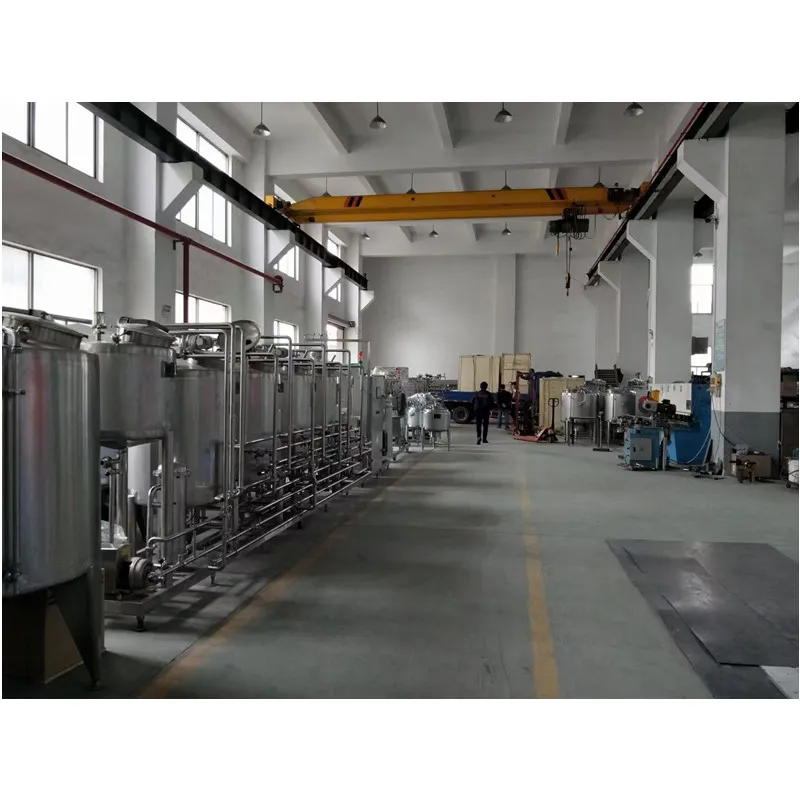

Our factory
Certification
Famous Supplier
FAQ:1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger
(Whatsapp/phone,We Chat).
2.How long can I get feedback after enquiry?
We will reply you within 2hrs.
3.What is the package?
Machines will be packed by plywood case.
