Product Description

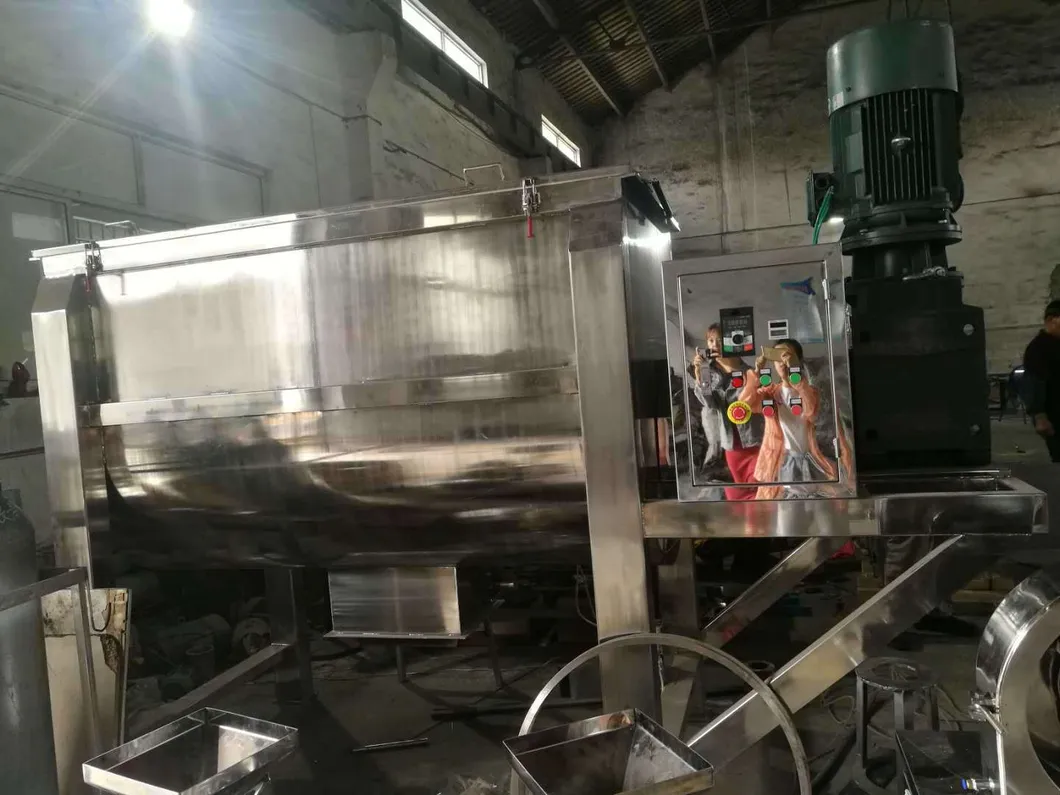

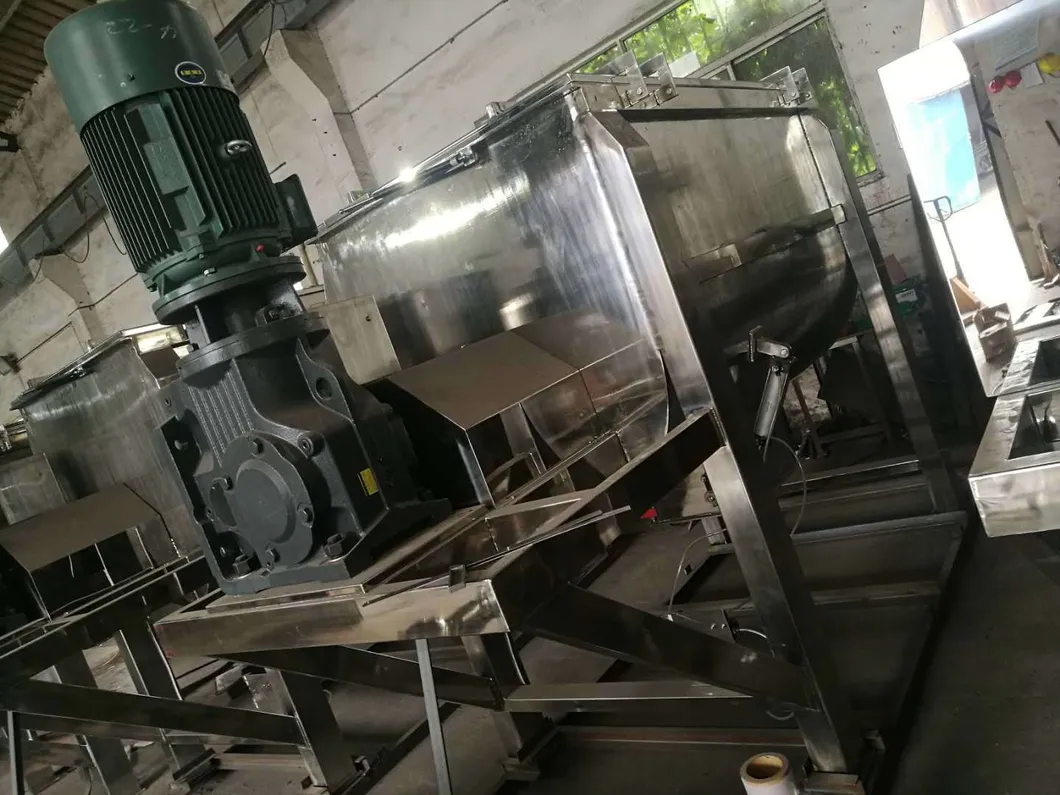

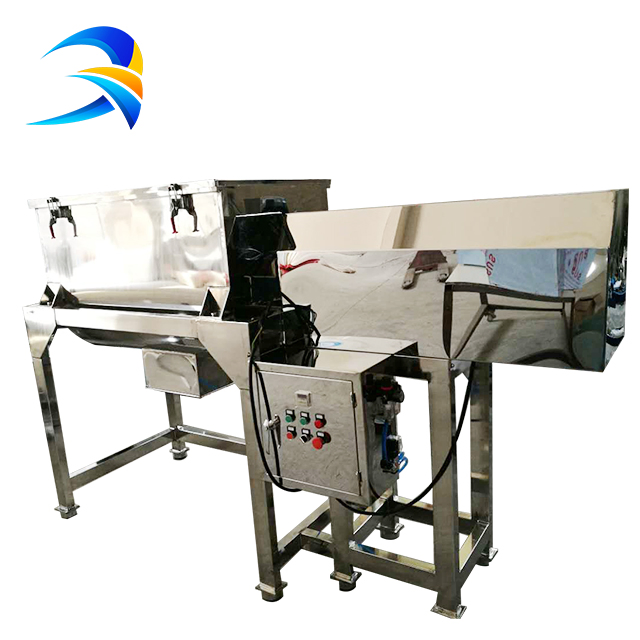

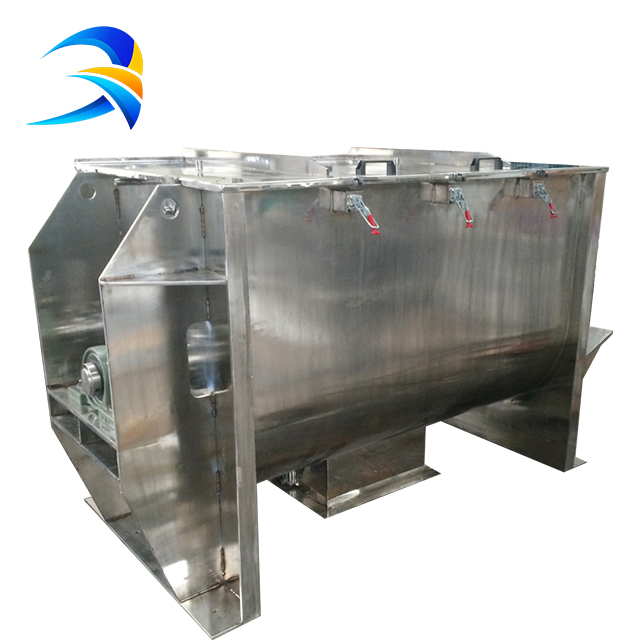

Trough Type Industrial Wet Powder Mixer/Horizontal Trough Typed Ribbon Mixer
Main Application
WLDH Horizontal Ribbon blender is a pioneer product researched and a new high-efficiency mixer. It is widely used in the solid-solid (powder material) and solid-liquid (powder material & fluidity material) mixing in the field of chemical industry, pharmacy, foodstuff industry, etc.
Working principle :

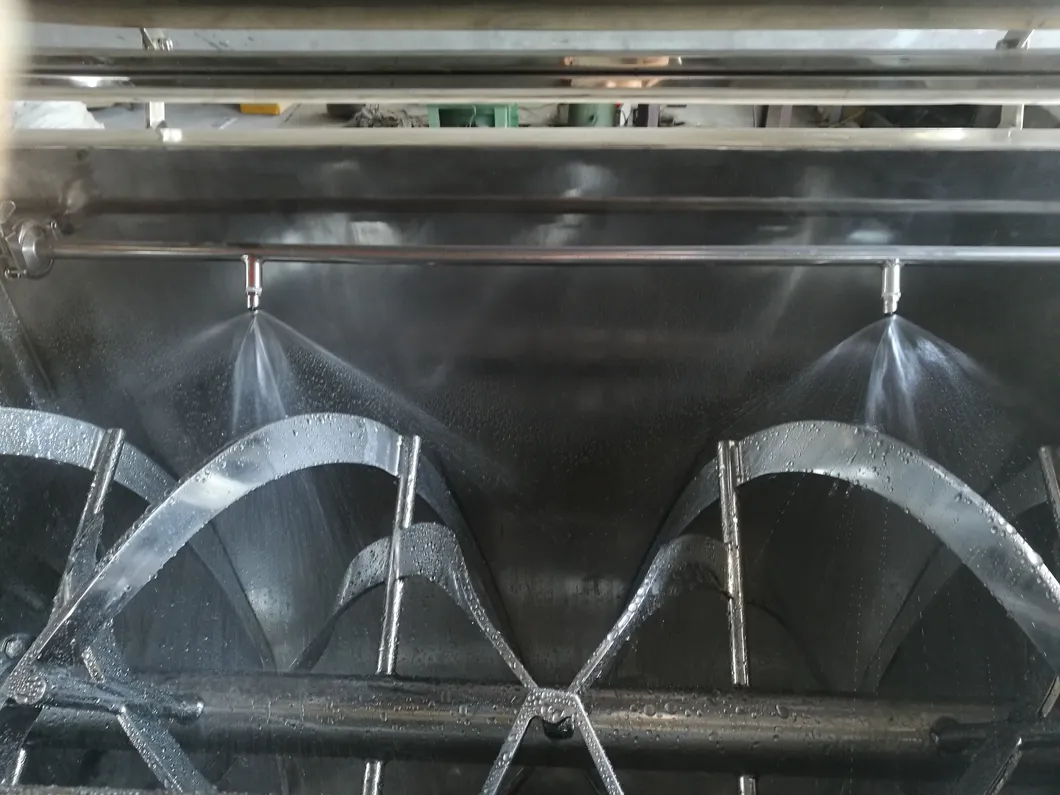

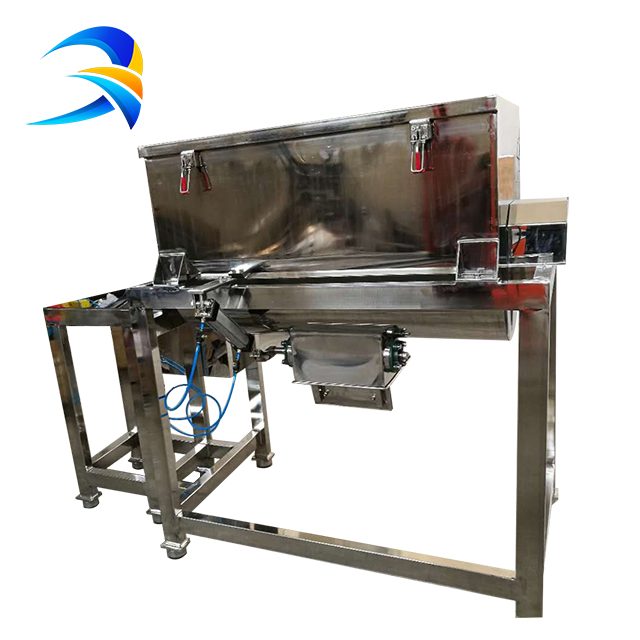

WLDH series mixer is mainly comprised of mixing barrel , spiral ribbon and driven parts. The spiral ribbon is made of two layers. That is, the inner ribbon makes the material move outwards, while the external ribbon makes the material move inwards which forms a good circulation of material. Ribbon moves so circumferentially that the mixer could achieve fine mixing efficiency in a very short time.
1.horizontal spiral ribbon type blender;
2.mixing solid-solid (powder material) and solid-liquid (powder & fluidity material);
3.fine mixing efficiency in short time;
4.suitable for large capacity,high loading coefficient;
5.stainless steel SUS 304 or SUS316 or carbon steel;

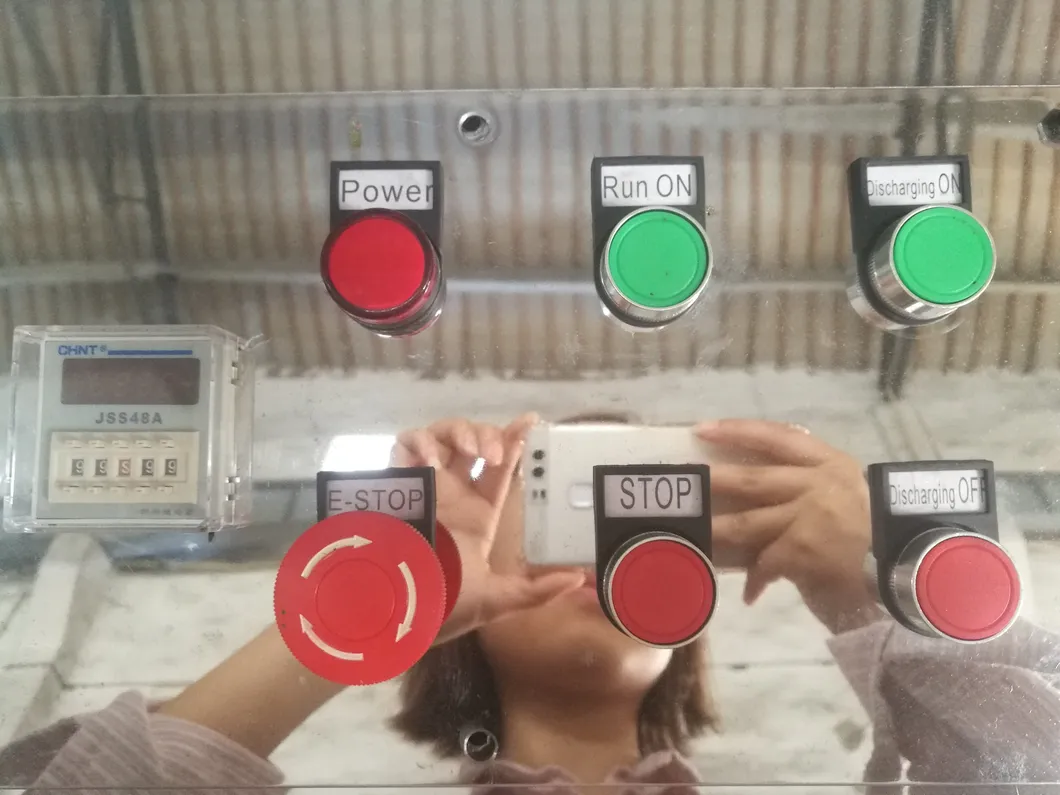

6.Full automatic,simple operation,small occupation;
Model | Barrel volume (L) | Loading volume (L) | Mixing time (min) | Stir motor (kw) | Overall size (L*W*H) (mm) | Weight (kg) |
WLDH-0.1 | 100 | 30-60 | 8-20 | 1.5-4 | 1190×740×770 | 320 |
WLDH-0.3 | 300 | 100-180 | 8-20 | 3-5.5 | 2030×630×980 | 510 |
WLDH-0.5 | 500 | 200-300 | 8-20 | 4-11 | 2320×730×1130 | 920 |
WLDH-1 | 1000 | 400-600 | 8-20 | 7.5-15 | 2800×920×1320 | 1450 |
WLDH-1.5 | 1500 | 600-900 | 8-20 | 11-18.5 | 3180×1020×1550 | 1950 |
WLDH-2 | 2000 | 800-1200 | 8-20 | 18.5-30 | 3310×1120×1640 | 3160 |
WLDH-3 | 3000 | 1200-1800 | 8-20 | 18.5-30 | 3750×1290×1820 | 3300 |
WLDH-4 | 4000 | 1600-2400 | 8-20 | 22-37 | 4220×1400×1990 | 3620 |
WLDH-6 | 6000 | 2400-3600 | 8-20 | 37-55 | 4220×1500×2100 | 5400 |
WLDH-8 | 8000 | 3200-4800 | 8-20 | 37-55 | 4700×1610×2260 | 6880 |
WLDH-10 | 10000 | 4000-6000 | 8-20 | 45-75 | 4420×2150×2470 | 7900 |
1. How many kinds material you want to mix , what are they?
2. What capacity you required? (kg/time or Liters)
3.What is the density of the material ?
4. What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...etc.
(We only provide 3P, because our machines are all for industrial use,not for family.)
5.Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
