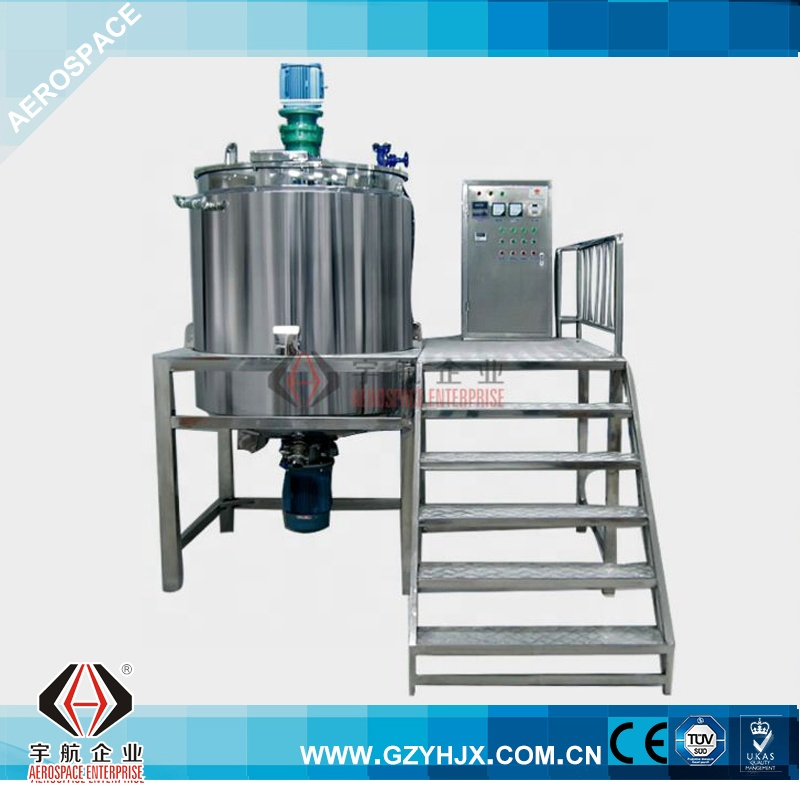

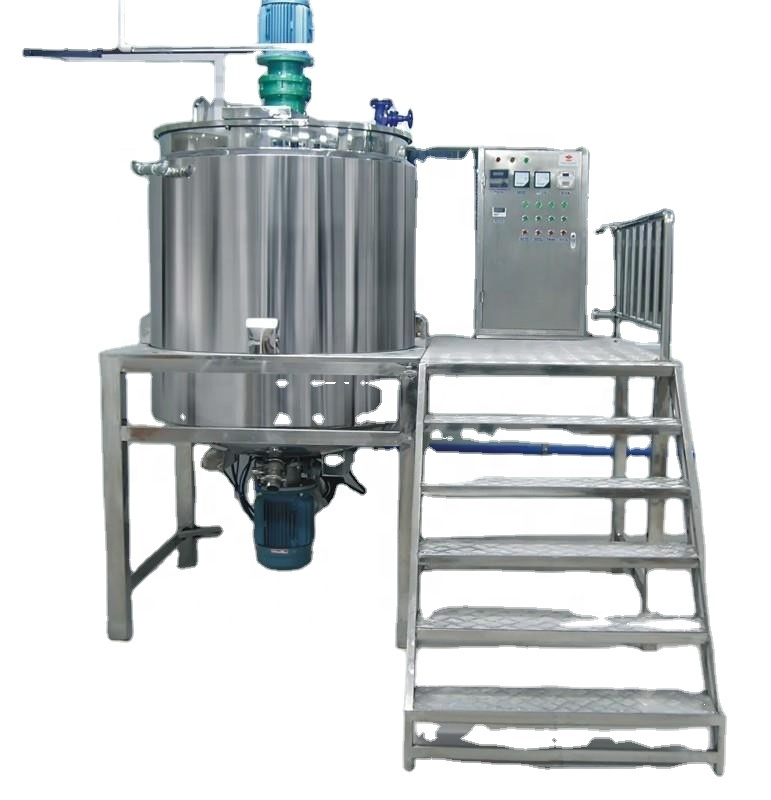

Stainless Steel Liquid Product Mixing Homogenizer Machine

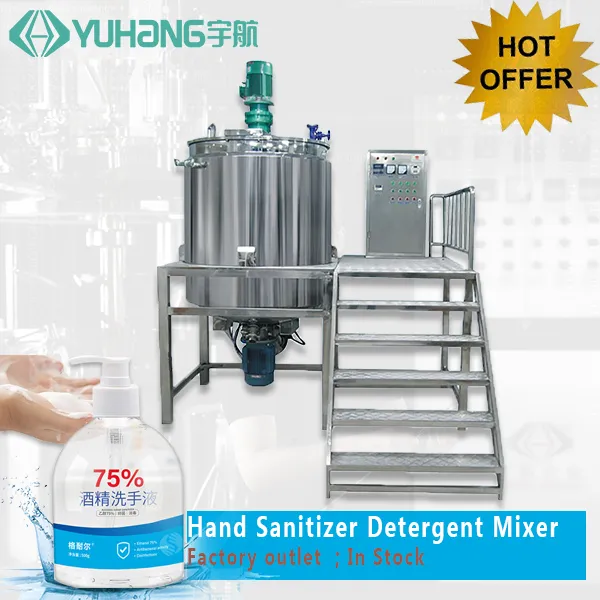

Liquid Hand Sanitizer Homogenizing Mixing MachineProduct Description:1. The blending system adopts single-direction scraping blending and frequency conversion speed adjustment, so as to satisfy product of different technological requirements.2. According to technological requirements, the materials ......
Send Inquiry
Product Description
Product Description:

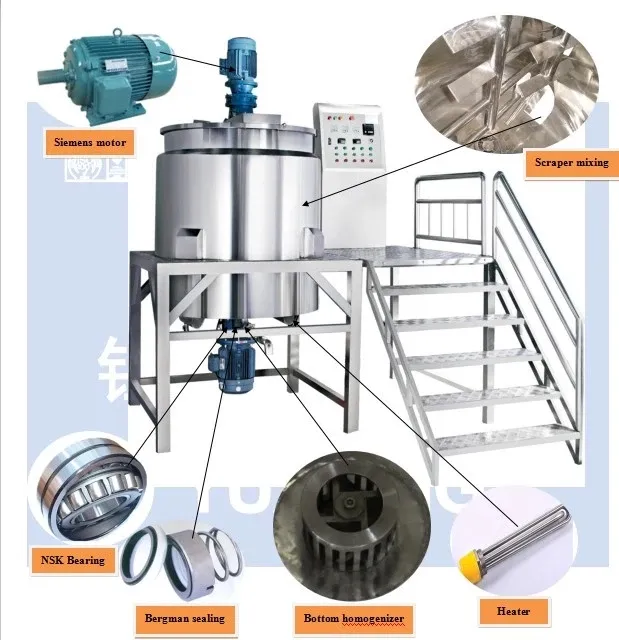

1. The blending system adopts single-direction scraping blending and frequency conversion speed adjustment, so as to satisfy product of different technological requirements.
2. According to technological requirements, the materials can be heated or cooled. The heating method can be chosen steam or electric heating according to customer
3. Various forms of blending vanes are suitable for production of different types of products.
4. Made of imported SUS304 or SUS306L stainless steel. The tank body and pipe are carried out mirror polishing.
5. Bottom installation type dispersing head and emulsifying head are optional to speedup dissolution and emulsification of materials.
6. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display data, such temperature and blending rotation speed etc.
Application product:
This machine is suitable for manufacturing liquid products (such as detergent, shampoo, shower gel, etc.) it integrates mixing, homogenizing, heating, cooling, pump discharge, finished products and defoaming (optional) functions. It is the ideal equipment for liquid products in domestic and international factories.
Technical Parameter:
| Model | YHYXG-300 | YHYXG-500 | YHYXG-1000 | YHYXG-2000 | YHYXG-3000 |
| Volume of Mixer | 300L | 500L | 1000L | 2000L | 3000L |
| Inside Material(Japan) | SUS316L | SUS316L | SUS316L | SUS316L | SUS316L |
| Outside Material (Shanghai-Baogang) | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 |
| Paddle Material | SUS316L | SUS316L | SUS316L | SUS316L | SUS316L |
| Homogenizer Speed (SIEMENS) | 0-3400 r/min | 0-3400 r/min | 0-3400 r/min | 0-3400 r/min | 0-3400 r/min |
| Homogenizer Power | 7.5kw | 11kw | 15kw | 18kw | 20kw |
| Blender Speed (Frequency Converter) | 0-63 r/min | 0-63 r/min | 0-63 r/min | 0-63 r/min | 0-63 r/min |
| Blender Power | 3kw | 4kw | 5.5kw | 7.5kw | 8.5kw |
| Motor | SIEMENS(Beide)/ABB motor | ||||
| Voltage | Three Phases 50-60Hz/380V±10-15% | ||||
| Temperature of Mixer | ≤100ºC | ||||
| We can customize different size of tank according to your requirements. | |||||
