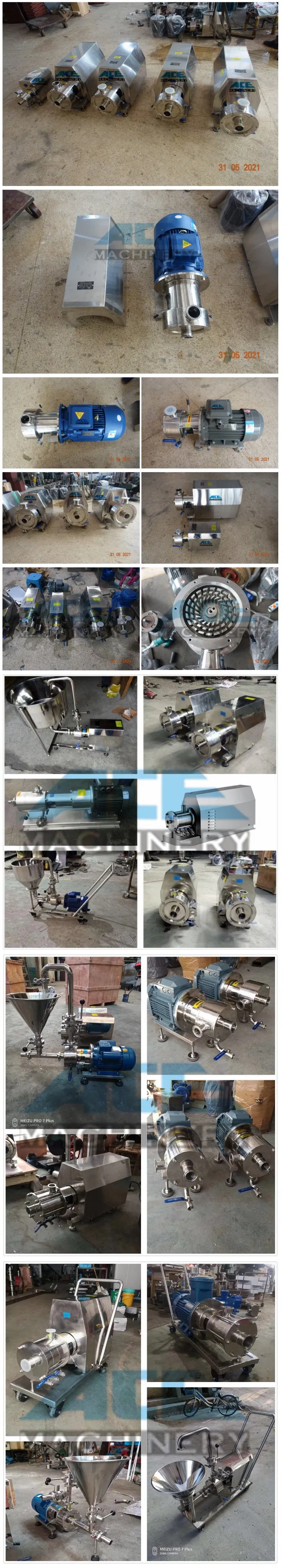

Stainless Steel High Shear Mixer Body Cream Shampoo Lotion Industrial Emulsion Pump with Feeding Hopper and Wheels
20 Years Of Experience. Reasonable Price And Best Service, CE Certificated Products.Sold to Over 30 Countries.Advanced Technology.Fast Delivery.Contact us for the offer. Product Description DescriptionThe emulsification pump (also called in-line high-shear dispersion mixer) is a high-efficient fine ......
Send Inquiry
Product Description

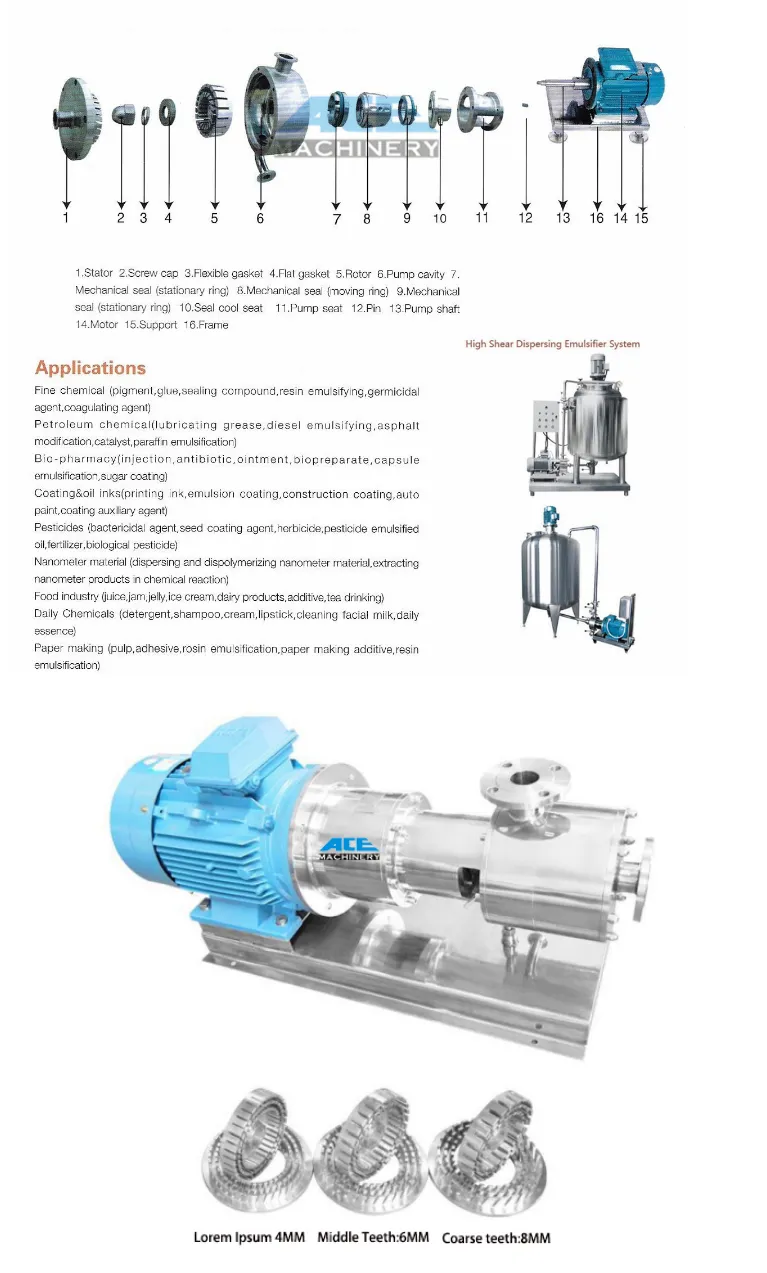

The emulsification pump (also called in-line high-shear dispersion mixer) is a high-efficient fine mixing equipment which integrates mixing, dispersion, crushing, dissolution, fine, depolymerizing, homogenization and emulsification, whose working components are mainly stator and rotator. The rotor rotates rapidly to produce centrifugal force and hydraulic force and the stator remains stationary. Through the precise combination of the rotor and the stator, a strong shear force is generated during high-speed rotation, and the material is subjected to strong shear, centrifugal extrusion, impact rupture, liquid friction, and uniform turbulence. Thus, various media such as immiscible solid phase, liquid phase, and gas phase are uniformly and finely dispersed and emulsified in an instant. After a reciprocating cycle, a stable and high-quality product is finally obtained.
| Profile type | Factory Price Sanitary Stainless Emulsion Pump Inline Emulsify Mixer Pump High Shear Homogenizer Pump | ||
| Material | SS304 or SS316L | ||
| Capacity | 0-130T (Customized) | ||
| Pressure | 0-2Bar | ||
| Viscosity | 1000000pas | ||
| Rotors teeth | Fine/Middle/rough | ||
| Temperature | 0-100 celsius degree | ||
| Installation | Movebale or Fixed | ||
| Connection | Clamp union flange | ||
| Motor type | Normal | Ex-proof | inverter |
| Speed | 0-3400RPM | ||
RTS Default Specification | ACE-100 2.2KW SUS304 (If you need other specifications, please contact us first. Thank you.) | ||
| Technical Parameters | ||||
| Model | capacity (T/H) | Speed(RPM) | out Pressure(bar) | power(KW) |
| ACE-80 | 0-1.5 | 2900/3400 | ≤2Bar | 1.5 |
| ACE-100 | 0-3 | 2900/3400 | 2.2 | |
| ACE-130 | 0-4 | 2900/3400 | 4.0 | |
| ACE-140 | 0-5 | 2900/3400 | 5.5 | |
| ACE-165 | 0-8 | 2900/3400 | 7.5 | |
| ACE-180 | 0-12 | 2900/3400 | 11 | |
| ACE-185 | 0-18 | 2900/3400 | 15 | |
| ACE-200 | 0-25 | 2900/3400 | 22 | |
| ACE-210 | 0-35 | 2900/3400 | 30 | |
| ACE-230 | 0-50 | 1450/1700 | 45 | |
| ACE-245 | 0-75 | 1450/1700 | 55 | |
| We can customize the equipment according to your requirements. | ||||

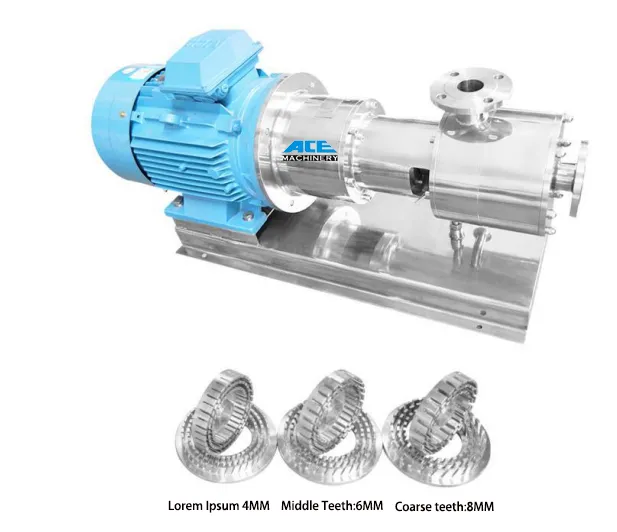

Fine Teeth:
Ultra-fine dispersion, pulping homogeneous emulsification
Middle Teeth:
Dispersion, refinement, accelerated dissolution, emulsification
Coarse teeth:
Impact, crushing, shearing, dissolution, coarse dispersion
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods
| Q1 | Are you trade or manufacturer? |
| A | We are a factory with an international sales company specialized in support for global distributors. |
| Q2 | Can you provide instant technical consulting services? |
| A | We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days. |
| Q3 | What's the difference between Ready-To-Ship and Customized products? |
| A | Some of RTS standard products are in stock and ready to ship in 2-3 days. |
| Q4 | What is the payment terms? |
| A | We accept Alibaba Trade Assurance Order, also can T/T and L/C. |
| Q5 | How to choose the shipment way? |
| A | It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) |
| Q6 | How about the after-sales service? |
| A | Fast after-sales support. Our products have a one-year warranty and free permanent consulting services. |
