Slurry Mixing Planetary Blender Equipments

Product Description

We will give you offer as per your detail request, so please kindly inform us of the material, viscosity, density, etc, and other requirements you prefer;after that, we will give you our best solution.

Slurry Mixing Planetary Blender Equipments

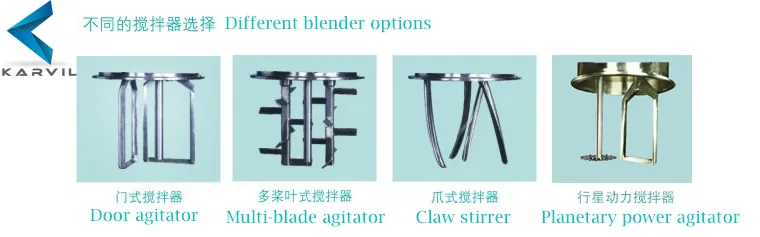

Different Blender Options

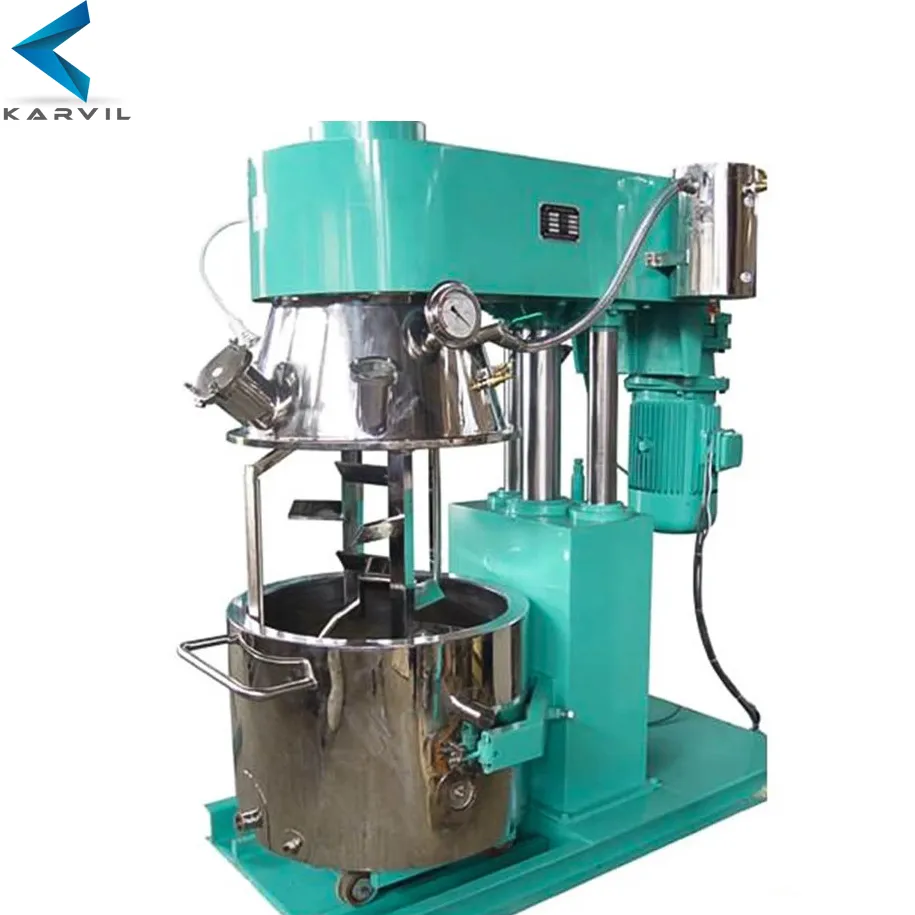

1. Powerful Dispersion Machine, viscosity material
It has three agitators of different forms. One agitator rotates around the axis of the barrel, and the other two rotate at a high
speed around its own axis at different speeds, so that the material does complex movement in the barrel. The "" shape scraper in
the equipment is around the barrel.

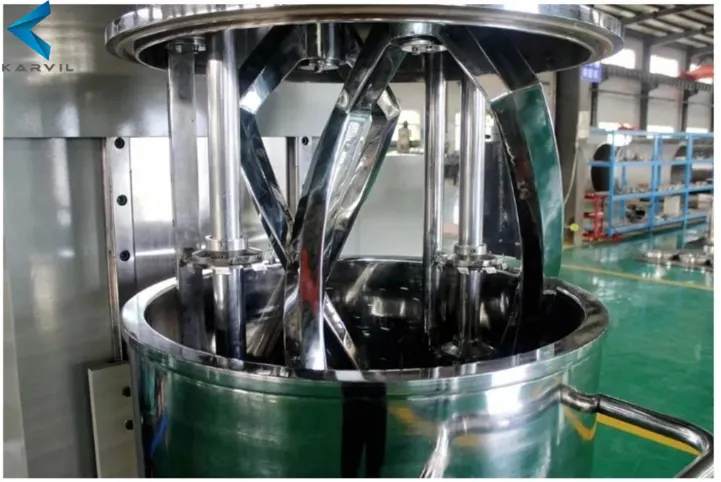

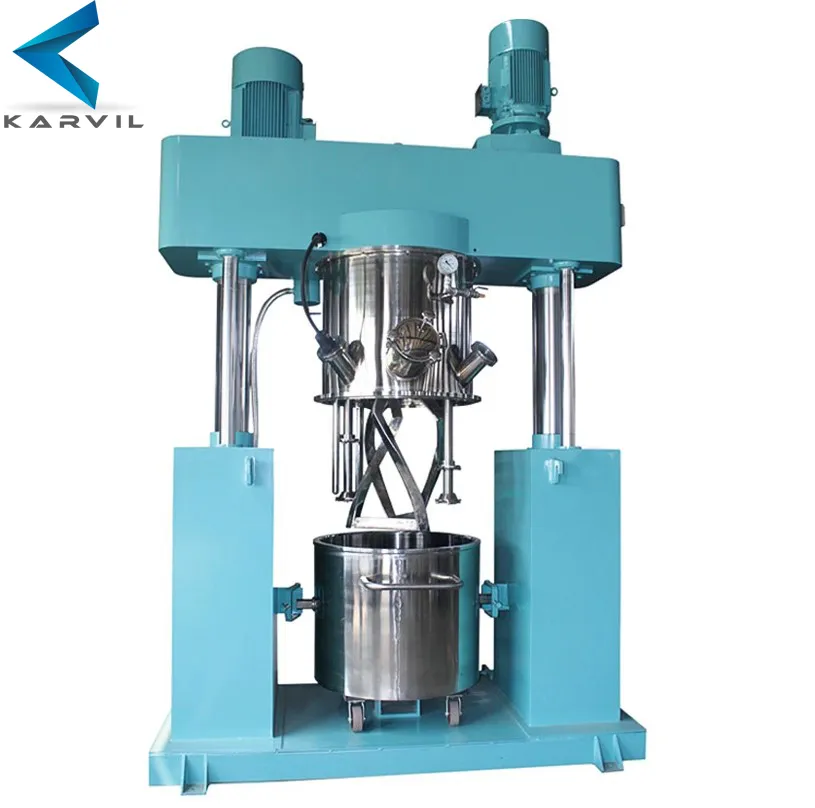

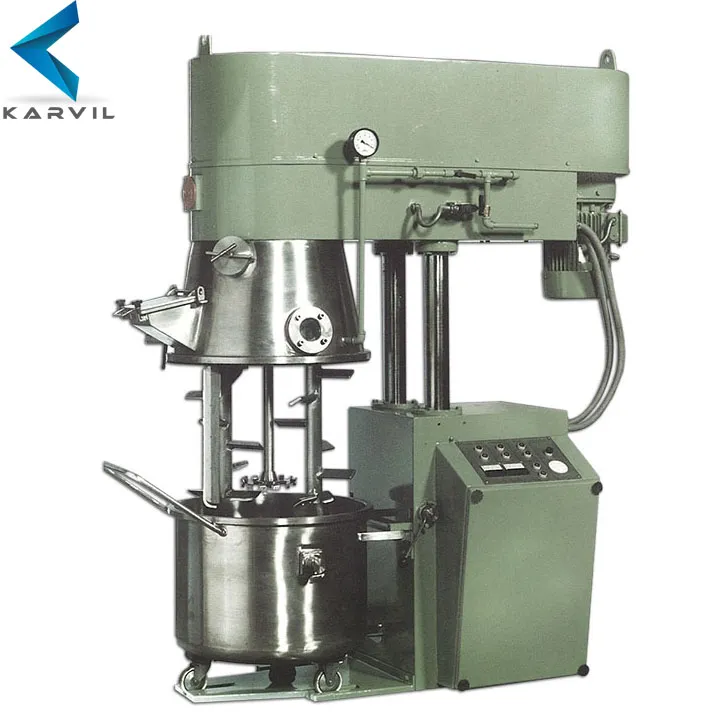

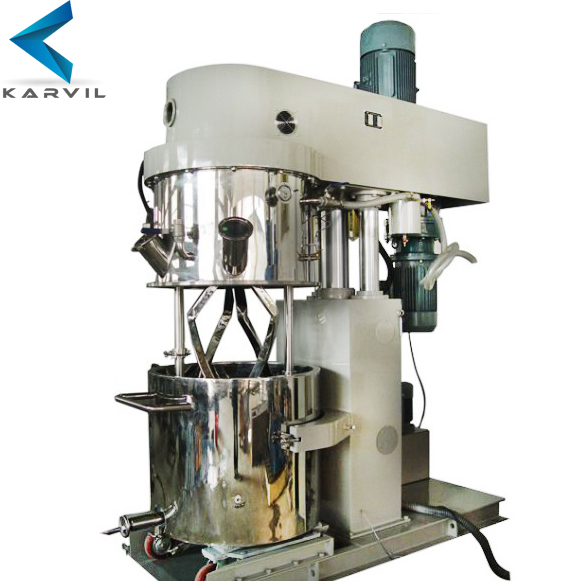

2. Double Planetary Mixer, high viscosity material
Double planetary mixer is integrated with dispersion and mixing kneader effect. The mixing paddles and high speed dispersion
shafts revolve and rotate at the same time. The twist blades make the material in the barrel flow up and down. The high speed
dispersion plate continuous shear and break up the material.

3. Vertical Kneader Mixer, ultra viscosity material

The vertical kneader is a heavy-duty kneading device with three spiral blades. When the equipment is running, the three blades rotate and revolve respectively. The material is forced to cut/knead the space in the barrel. Vertical kneader mixes
high-viscosity composite materials (such as dental resin materials, chip thermal silica gel, new composite materials for aerospace systems, etc.)

Technical Paramaters

Model (L)		5L	15L	30L	50L	100L	300L	500L	1000L
Tank Dia (mm)		280	280	400	480	550	850	960	1160
Tank height (mm)		180	325	325	365	550	650	810	1100
Revolution motor (kw)		1.5	2.2	3	4	5.5	18.5	22	30-37
Revolution speed (rpm)		0-60	0-60	0-84	0-62	0-70	0-45	0-35	0-35
Wall scraper rev (rpm)		0-60	0-60	0-84	0-62	0-70	0-45	0-35	0-35
Rotation speed (rpm)		0-100	0-100	0-130	0-75	0-110	0-62	0-60	0-45
Dispersing motor (kw)		1.1	2.2	2.2	5.5	5.5	11	30	37
Dispersing rev (rpm)		0-1500
Vacuum (MPa)		≤-0.098
Lift travel (mm)		360	400	430	650	700	900	1000	1100
External dimension (mm)	L	1500	1700	1700	1700	1700	2500	2700	2700
	W	900	900	900	900	1100	1200	1500	1800
	H	1700	2100	2300	2300	2300	2700	2900	3100
Weight (kg)		500	800	1000	2000	2300	2700	3500	5000

Applicantion Range

Planetary Mixer is suitable for high viscous material such as putty, silicone gel, Lithium battery slurry, solder paste, ceramic paste, sealants, structural adhesives, soft cream, tooth paste and etc.

About Us
Professional team and company strength: More than 8 years in the research, design, manufacturing and sales of mixing machine,grinding equipment ,reaction machine & chemical production Line,and our equipment mainly exported to Asia, Africa, South America, Europe & etc..which is widely used in chemical industry, building industry & etc..
About after-sale service & Warranty
1. The quality control is started from materials purchasing, the materials have good quality .
2. We have a very strict quality control system to ensure our equipment work well at customers.
3. The warranty period of our equipment to customers is one year.
